99903514:TELESCOPIC CRANE: 5-8
SECTION 5: DECALS

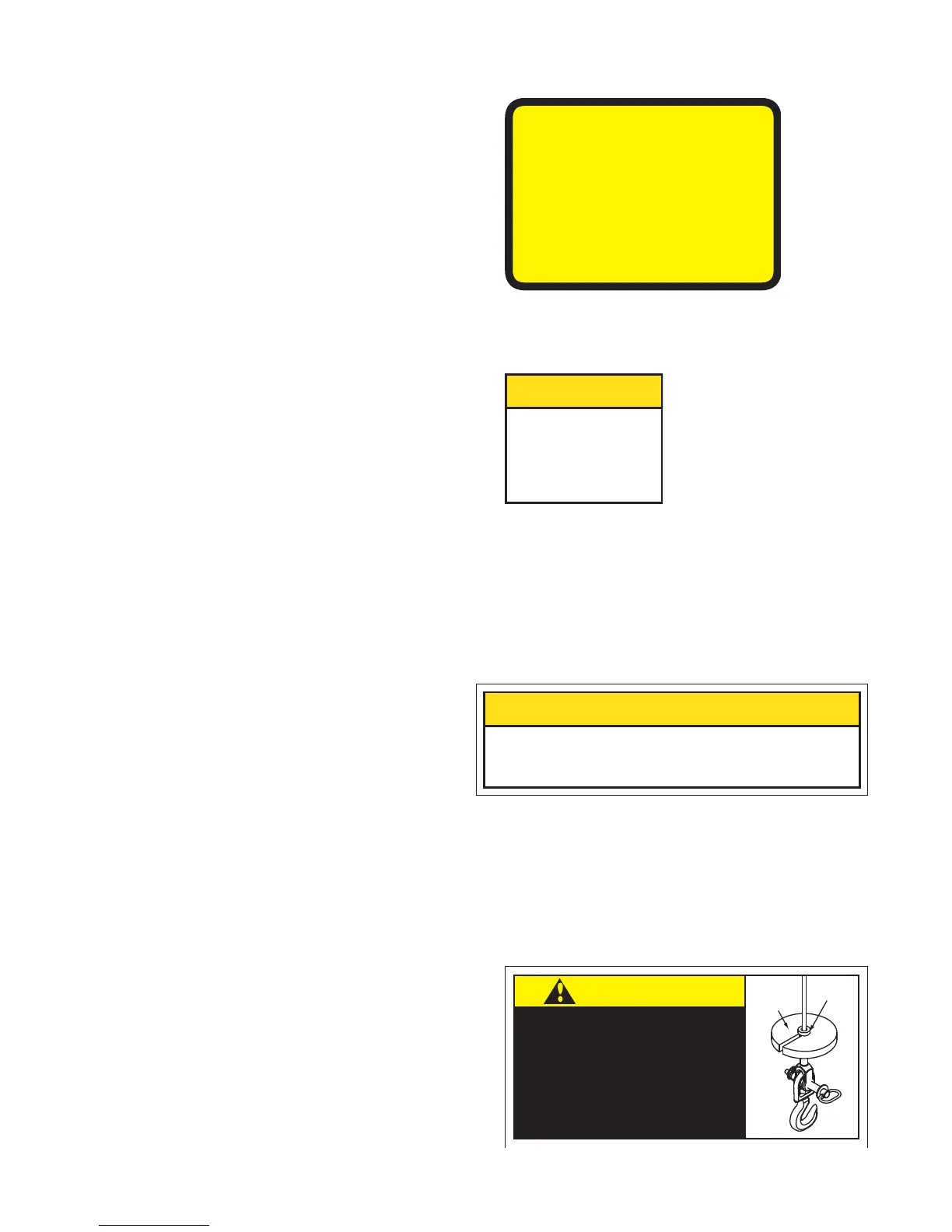

Figure E-16
DECAL: Rotate While Greasing
PART NUMBER: 70392524
FUNCTION: To inform and remind operators to rotate
the crane while greasing the turntable rotation
system.
USED ON: All cranes.
PLACEMENT: On the gear cover.
QUANTITY: 1
Figure E-17
DECAL: Caution - Do Not Wash/Wax
PART NUMBER: 70392213
FUNCTION: To inform maintenance personnel not to
use high pressure washers and not to wax the crane
for a period of 60 days after delivery. The use of high
pressure washers and wax is detrimental to the
crane’s paint until cured.
USED ON: All cranes.
PLACEMENT: Near the crane operating station.
QUANTITY: 1
Figure E-18
DECAL: Caution - Oil Level
PART NUMBER: 71039134
FUNCTION: To caution the operator to check the
hydraulic reservoir oil level regularly.
USED ON: All cranes with hydraulic fluid reservoirs.
PLACEMENT: At or near the normal operating
station.
QUANTITY: 1
Figure E-19
DECAL: Caution - Downhaul Weight
PART NUMBER: 70395670
FUNCTION: To show operator how to use downhaul
weight with single line.
USED ON: All cranes.
PLACEMENT: On or near downhaul weight.
QUANTITY: 1
20080110
DO NOT USE HIGH
PRESSURE WASHER
OR WAX ON EXTERIOR
FOR 60 DAYS.
CAUTION
70392213
CAUTION
70392213
AVOID EQUIPMENT DAMAGE
Check oil level regularly.
70392524
ROTATE CRANE
WHILE GREASING
TURNTABLE
GEAR-BEARING
CAUTION
70395670
To avoid winch
unspooling, use single
line downhaul weight
with single line. Be
sure to install weight
below locking collar.
LOCKING
COLLAR
DOWNHAUL
WEIGHT
