INFANT
WITH INBUILT HARNESS
SET UP
U
CORRECT SHOULDER HEIGHT
The correct height for the shoulder straps is very
important for the optimum performance of the
restraint.
The shoulder slots used in rearward facing position are below the lower shoulder height marker.
With the child correctly sitting in the restraint, check which set of slots (In the plastic shell of the
restraint) are level with or just above the infant’s shoulders.
If the harness straps are located in those slots, then the you can proceed with using the restraint
(see section “USE” on page 17). If not then adjust the shoulder straps. Refer to “Shoulder slot
height”.

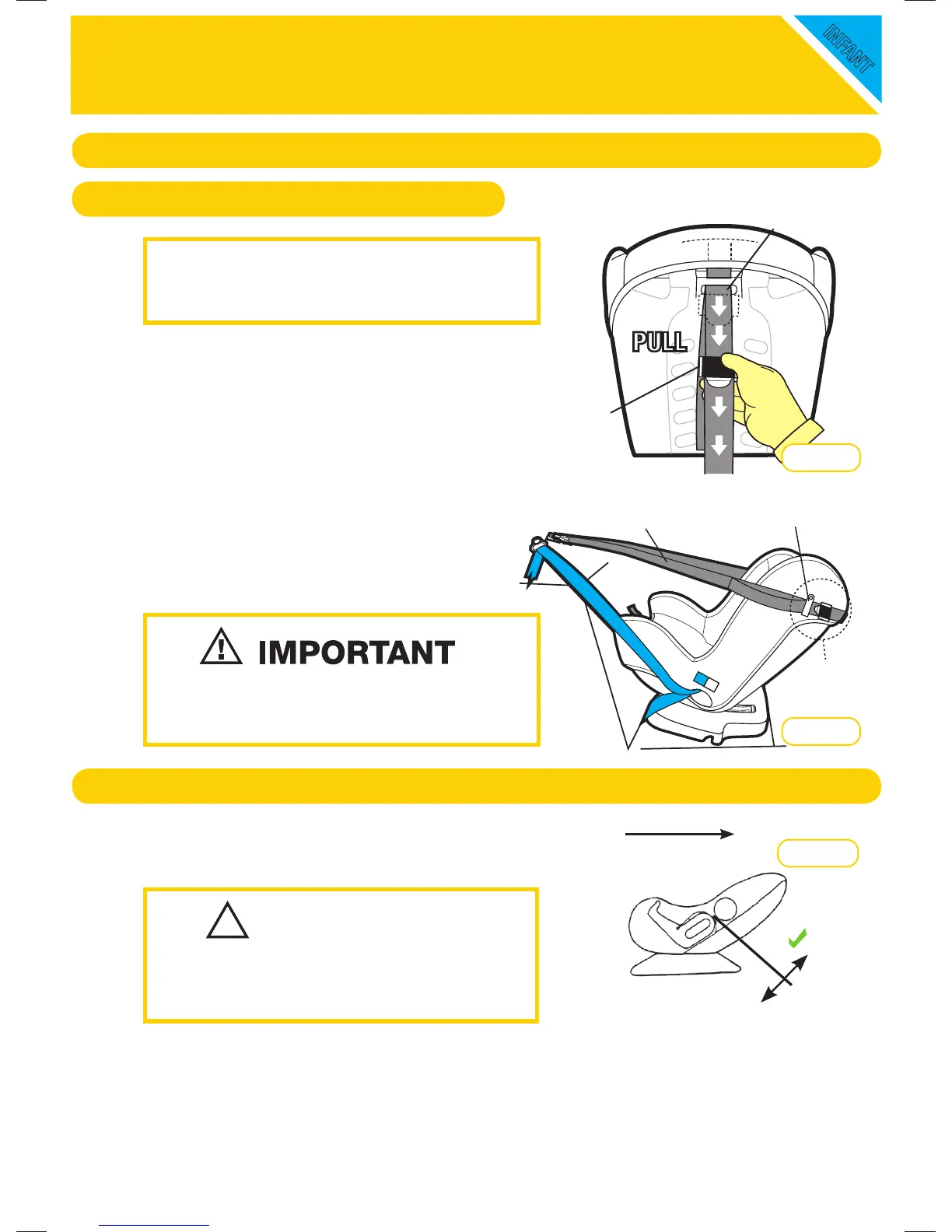

Figure 1
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
lower than the child’s shoulders.
Front of vehicle
CONVERTING TO INFANT SEAT
Figure 2
Adjuster
location
Adjuster
Figure 3
Upper Anchorage
Strap
Upper Anchorage
Strap Guide
Step 1:
Step 2:
Upper Anchorage
Strap
The location of the Upper Anchorage
Straps ‘Adjuster’ is adjustable for ease
of installation and ease of use.
Pull adjuster and strap to extend the location of the
adjuster assembly (see Figure 2).
Continue to extend until the adjuster has reached
the desired location at the side of the restraint (see
Figure 3).
Step 3:
Locate the adjuster at the side of the restraint and
secure using the Upper Anchorage Strap Guide.
EASE OF USE: It is recommended to position
the adjuster at the side of the restraint which is
towards the access door (rear passenger side).
ADJUSTER ASSEMBLY LOCATION
Rearward Facing (Type A)
12
