Infasecure CS4010 - CS4010;CS4410 Child Restraint (Itemised List)

5
6
8
9 A
VIEW A
VIEW A
7
IMPORTANT
!
For a vehicle without a xed parcel shelf an extension strap(s) may be needed.
If so ring (02) 4728 8080 for nearest supply location. (Refer page 31)
Seat belt extenders should not be used if the seat belt is not long enough to secure the child
restraint.
10
11
15
16
12
14
13
Front
of Car

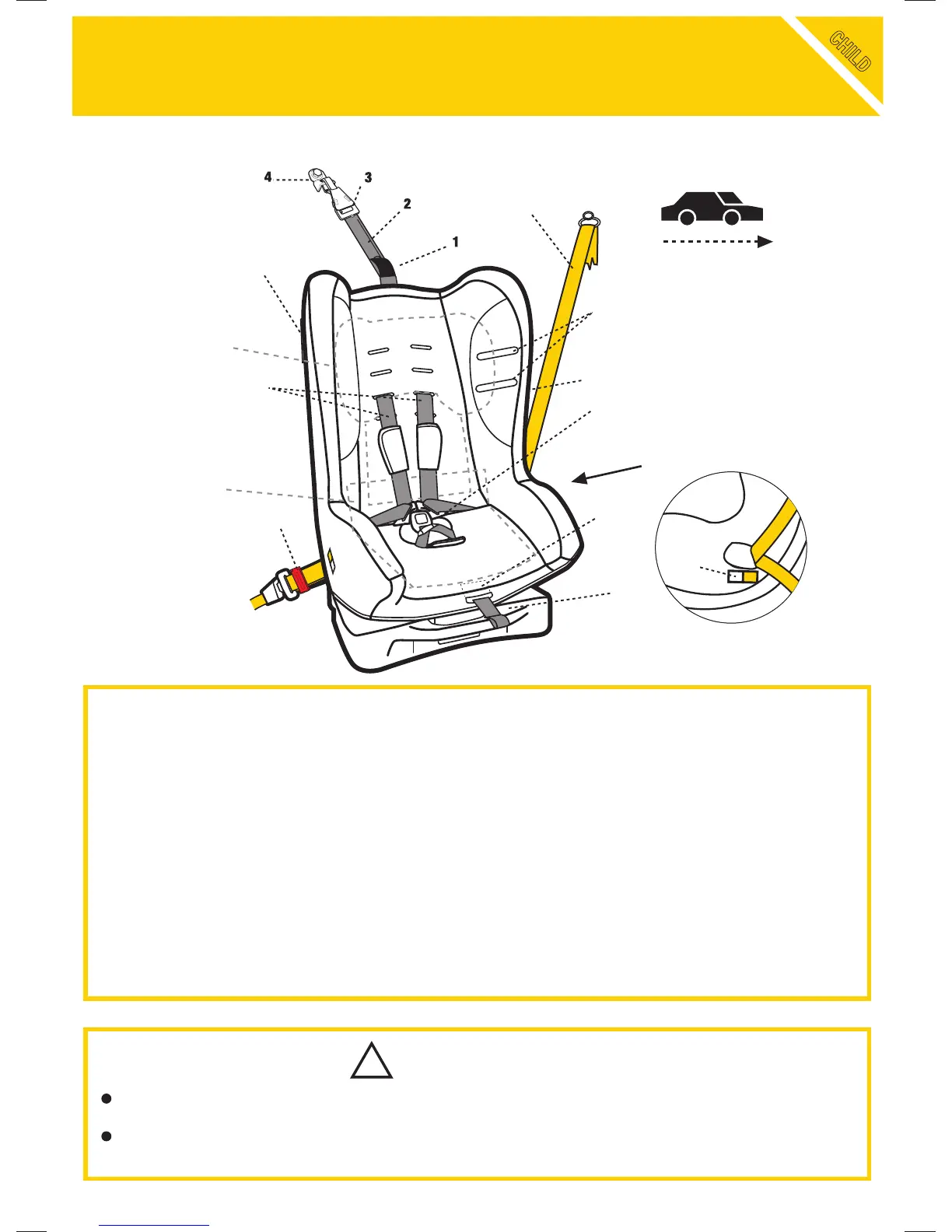

CS4010/CS4410
UPPER ANCHORAGE STRAP ADJUSTER
UPPER ANCHORAGE STRAP
ATTACHMENT CLIP
ANCHOR FITTING + ATTACHMENT HARDWARE
SAFE GRIP RED BELT CLAMP (supplied in pocket)
VEHICLE SEAT BELT
“FORWARD-FACING SEAT BELT PATH” MARKER
(EACH SIDE OF RESTRAINT - COLOURED YELLOW)
UPPER ANCHORAGE STRAP GUIDE
COMFORT COVER
A - SEAT COVER
SHOULDER HEIGHT MARKER
HARNESS SHOULDER STRAPS
BUCKLE ASSEMBLY
HARNESS ADJUSTER
HARNESS ADJUSTMENT STRAP
PILLOW (if supplied)
PADDED INSERT (if supplied)
NOTE: Padded inserts can vary according to model.
For detailed description and method of attachment
for padded accessories refer to Accessories on page 31.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
FORWARD FACING
Shoulder height markers may
be hidden under a pillow in
the lowest position
CHILD
WITH INBUILT HARNESS
20
