Infasecure CS4010 - INSTALLATION - SHOULDER SLOT HEIGHT

INFANT
WITH INBUILT HARNESS
INSTALLATION
SHOULDER SLOT HEIGHT

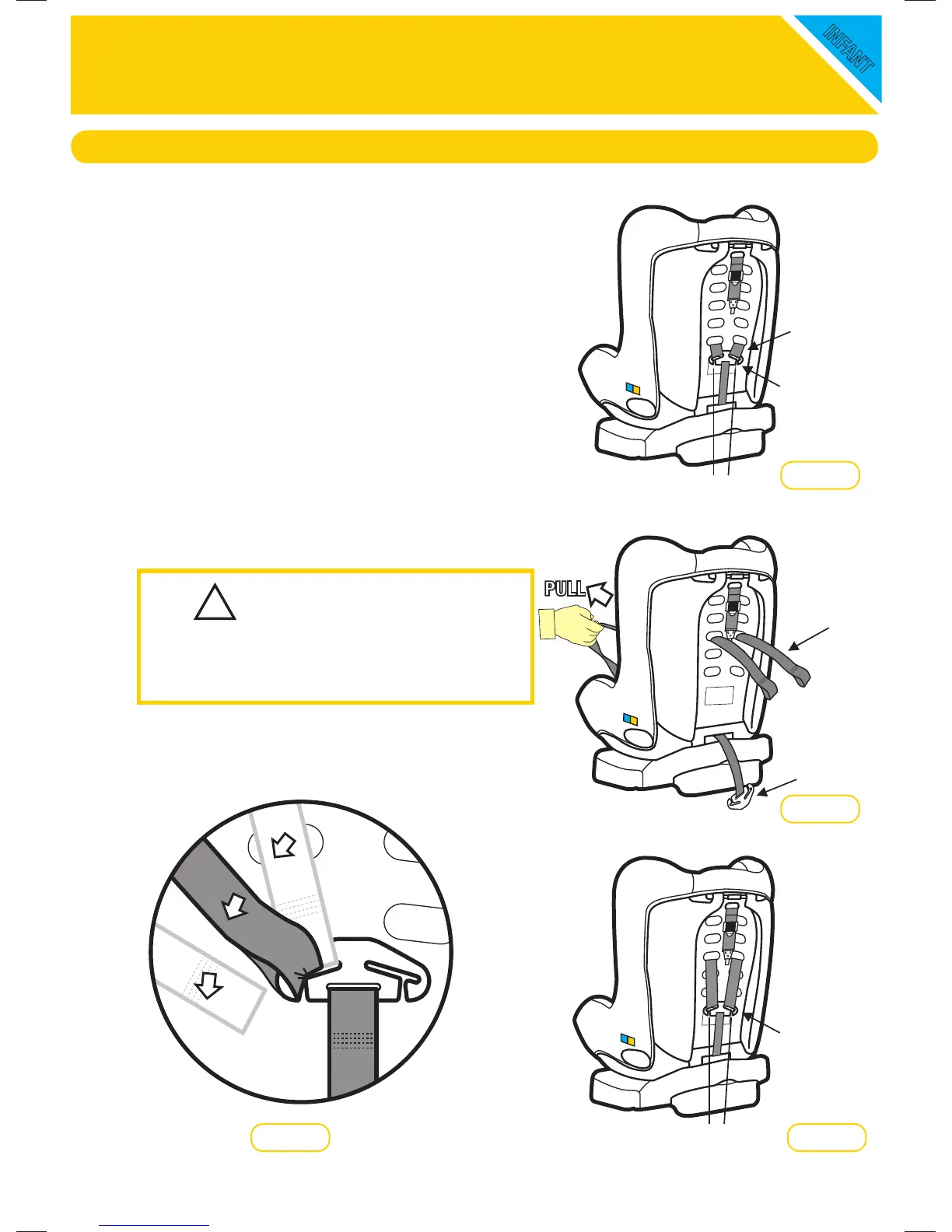

Turn the restraint so that the back of the seat is facing you.
Remove each shoulder harness through the gates in
the spreader plate (see Figure 1 & 4).
Pull the shoulder harness straps through the
shoulder slot holes in the seat body and cover. They
are now loose in the front of the seat.
Push the ends of the shoulder harness straps
through the appropriate shoulder slot holes in the
cover and seat body for the child’s shoulder height.
The shoulder harness straps go directly from the
shoulder slot holes to the spreader plate. Thread
each shoulder harness strap back onto the metal
spreader plate through the gate (see Figure 4).
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Figure 1
Figure 2
Figure 3Figure 4
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
lower than the childs shoulders.
HARNESS
STRAPS
HARNESS
STRAPS
METAL
SPREADER
PLATE
METAL
SPREADER
PLATE
GATES
METAL
SPREADER
PLATE
GATES
PULL
