8

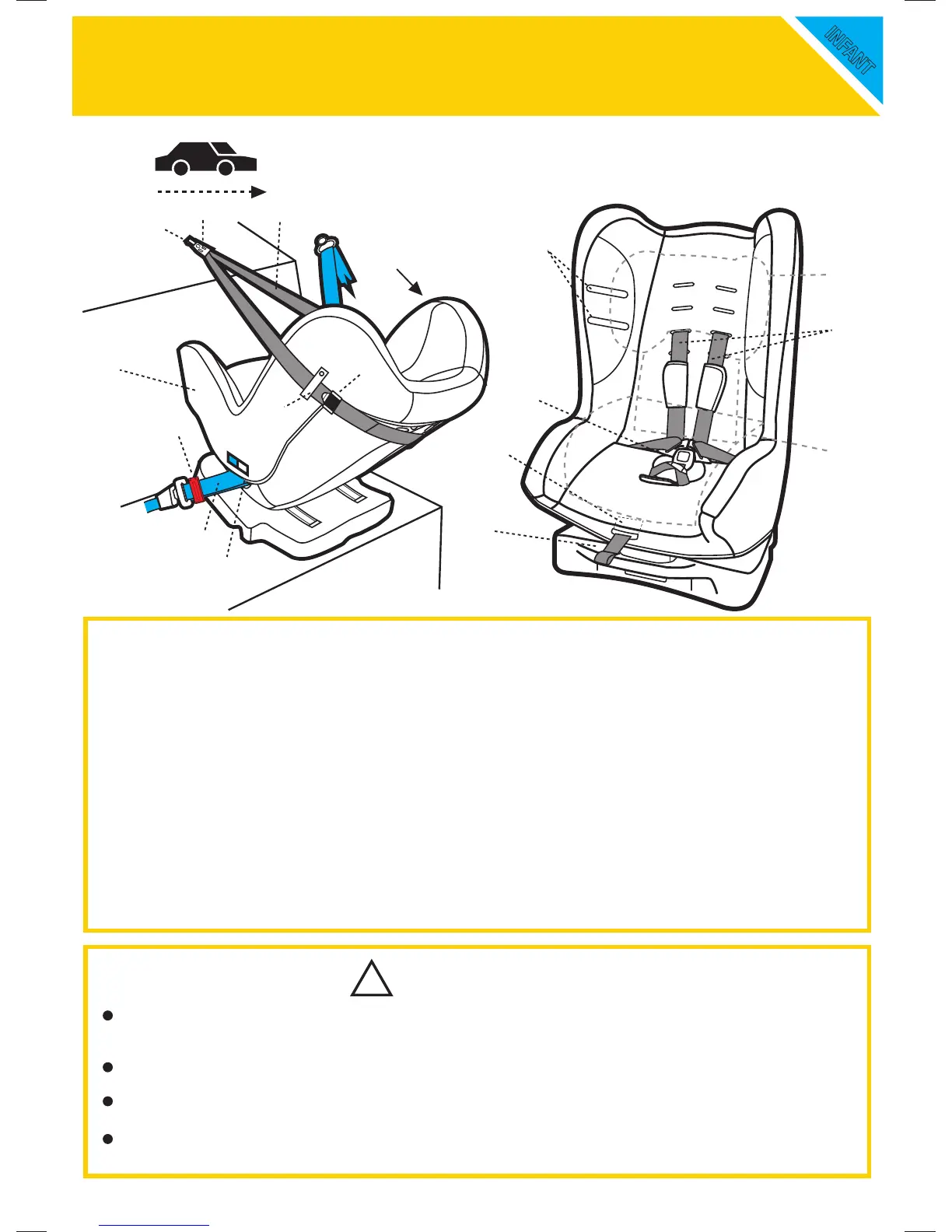

CS4010/CS4410
UPPER ANCHORAGE STRAP ADJUSTER
UPPER ANCHORAGE STRAP
ATTACHMENT CLIP
ANCHOR FITTING + ATTACHMENT HARDWARE
SAFE GRIP RED BELT CLAMP (supplied in pocket)
VEHICLE SEAT BELT
“REARWARD-FACING SEAT BELT PATH” MARKER
(EACH SIDE OF RESTRAINT - COLOURED BLUE)
UPPER ANCHORAGE STRAP GUIDE
COMFORT COVER
A - SEAT COVER
SHOULDER HEIGHT MARKER
HARNESS SHOULDER STRAPS
BUCKLE ASSEMBLY
HARNESS ADJUSTER
HARNESS ADJUSTMENT STRAP
PILLOW (if supplied)
PADDED INSERT (if supplied)
NOTE: Padded inserts can vary according to model.
For detailed description and method of attachment
for padded accessories refer to Accessories on page 31.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
2
4
3
6
7
REARWARD FACING
VIEW A
VIEW A
For a vehicle without a xed parcel shelf an extension strap(s) may be needed.
If so ring (02) 4728 8080 for nearest supply location. (Refer page 31)
Seat belt extenders should not be used if the seat belt is not long enough to secure the child
restraint.
To achieve the necessary distribution of deceleration force during a vehicle impact, ensure the
infant is seated correctly in the child restraint and the harness is tted and adjusted as per these
instructions. Ensure the child restraint and infant are rearward facing.
Care and attention should be given to ensure that the infant has adequate ventilation and shading
when in the restraint.
IMPORTANT
!
5
9 A
10
11
12
14
13
8
Front
of Car
Shoulder height markers may
be hidden under a pillow in
the lowest position
15
16
1
INFANT
WITH INBUILT HARNESS
