CHILD
WITH INBUILT HARNESS
INSTALLATION
With the child correctly sitting in the restraint, check
which set of slots (in the plastic shell of the restraint)
are level with but not more than 25mm below the
child’s shoulders.
SHOULDER SLOT HEIGHT
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not more
than 25mm below the child’s shoulders.

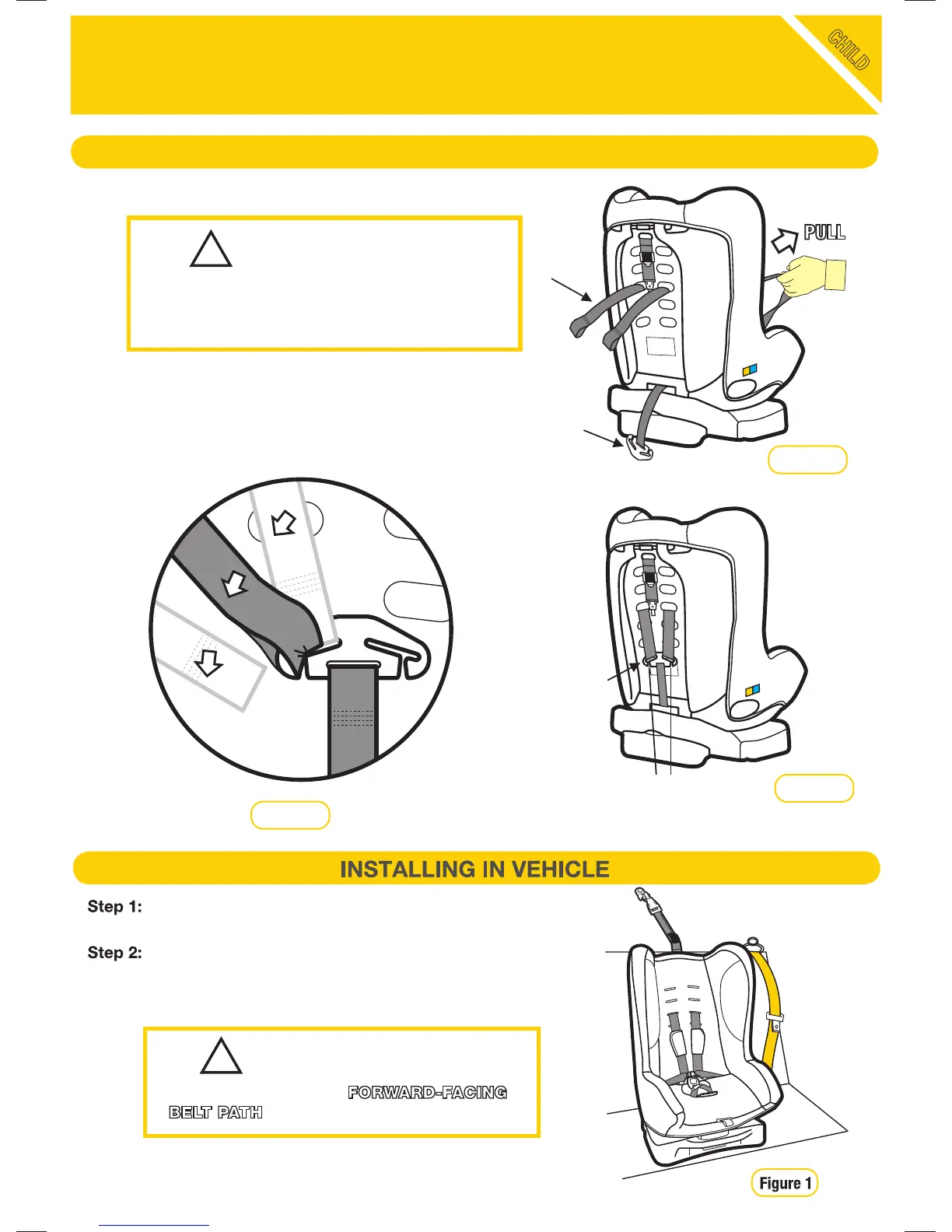

Figure 2
Figure 3
GATES
METAL
SPREADER
PLATE
HARNESS
STRAPS
METAL
SPREADER
PLATE
PULL
Figure 4
Ensure the restraint is set up in child seat mode (refer
page 23).
Place the restraint in desired upright or reclined
position, with the back against the back of the vehicle
seat, directly in line with the anchorage point (refer
Figure 1).
IMPORTANT
!
Ensure that you use the FORWARD-FACING
BELT PATH indicators, marked in “yellow”.
