User Manual 10 V1.1
2021-05-03
Next Generation Solenoid Driver
Evaluation Kit User Manual

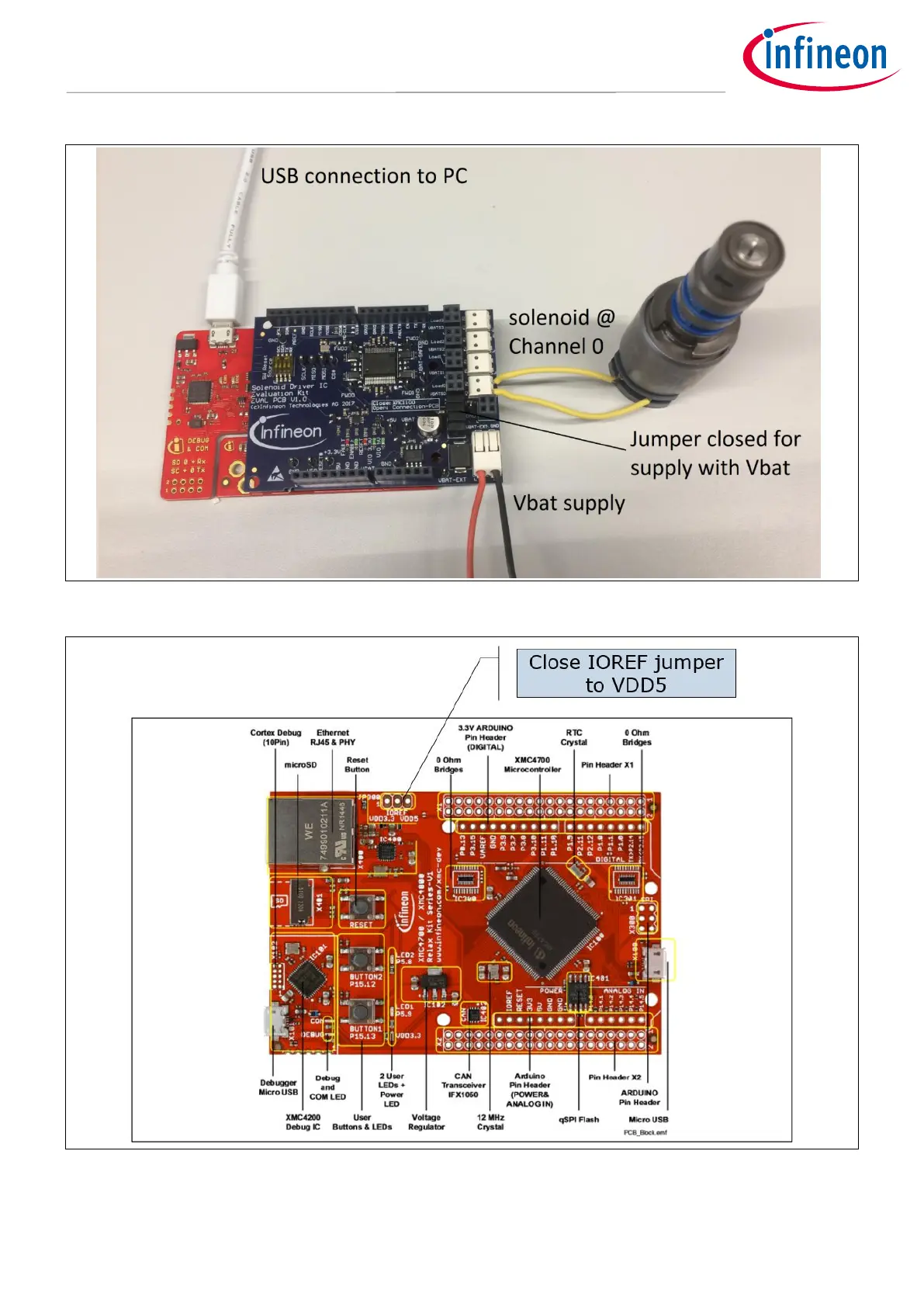

Figure 8 Setup example for Version S (XMC1100 Boot Kit with TLE92464ED Evaluation board)
Figure 9 XMC4700 considerations – Evalboard setup is identical to XMC110, but the IORER jumper
on the XMC board needs to be closed
