ADDITIONAL INFORMATION
WUXGA series

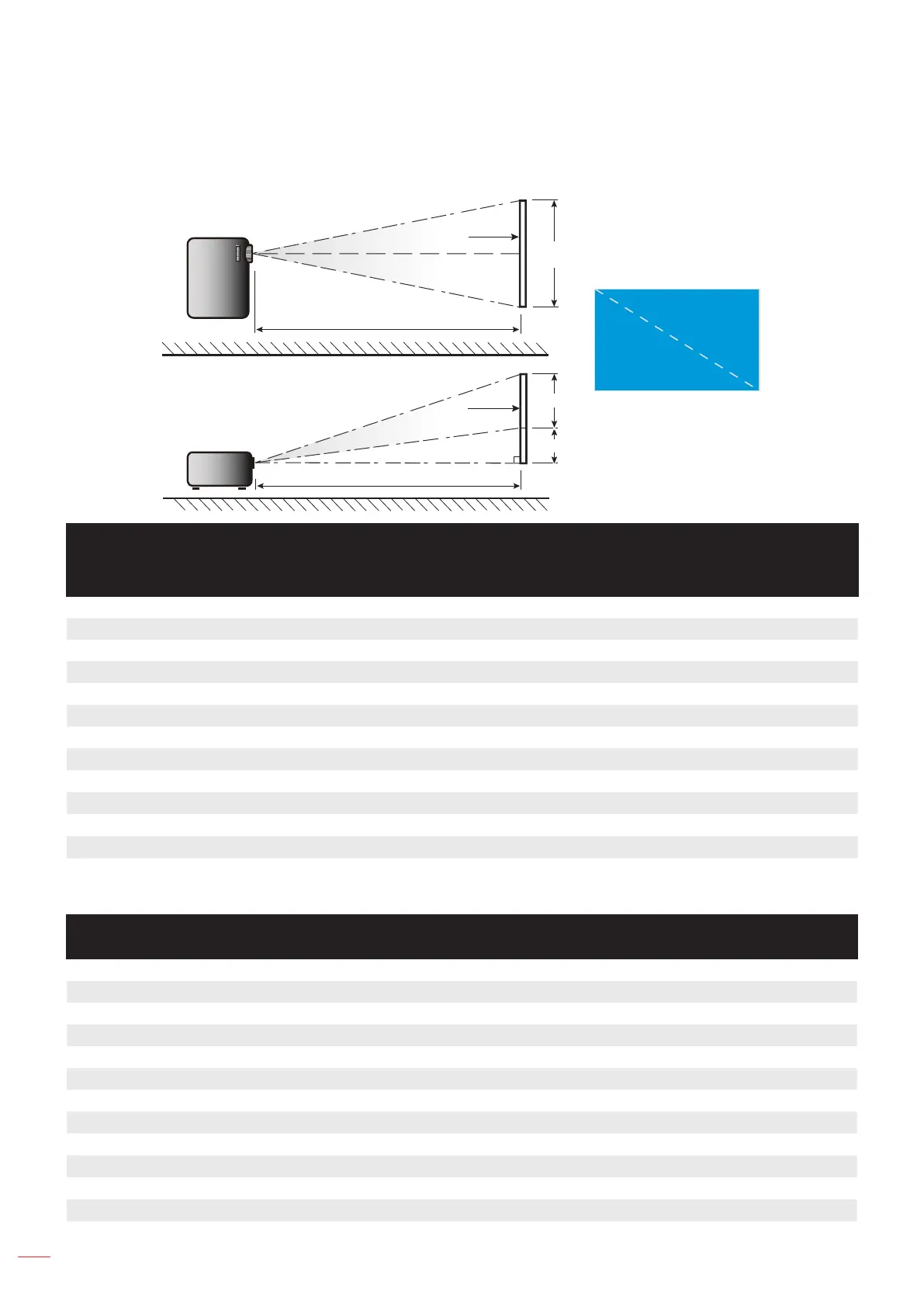

Projection image size is from 21” to 302” (0.5m to 7.7m).
Width
Height
Diagonal
Top View
Side View
Projection Distance
Projection Distance
Screen
Screen
Screen (Width)
Screen (Height)
Offset
16:9
diagonal
screen
inches
Screen size Projection distance O󰀨set
(inches) (meters) (feet) (meters) (cm) (inches)
Height Width Height Width
Wide Tele Wide Tele
21 11.13 17.81 0.28 0.45 2.08 3.32 0.63 1.01 -1.41~1.98 -0.56~0.78
40 21.20 33.92 0.54 0.86 3.96 6.33 1.21 1.93 -2.69~3.77 -1.06~1.48
60 31.80 50.88 0.81 1.29 5.94 9.50 1.81 2.89 -4.04~5.65 -1.59~2.23
70 37.10 59.36 0.94 1.51 6.93 11.08 2.11 3.38 -4.71~6.60 -1.85~2.60
80 42.40 67.84 1.08 1.72 7.91 12.66 2.41 3.86 -5.38~7.54 -2.12~2.97
90 47.70 76.32 1.21 1.94 8.90 14.25 2.71 4.34 -6.06~8.48 -2.38~3.34
100 53.00 84.80 1.35 2.15 9.89 15.83 3.02 4.82 -6.73~9.42 -2.65~3.71
120 63.60 101.76 1.62 2.58 11.87 19.00 3.62 5.79 -8.08~11.31 -3.18~4.45
150 79.50 127.20 2.02 3.23 14.84 23.74 4.52 7.24 -10.10~14.14 -3.97~5.56
200 106.00 169.60 2.69 4.31 19.79 31.66 6.03 9.65 -13.46~18.85 -5.30~7.42
250 132.50 212.00 3.37 5.38 24.73 39.57 7.54 12.06 -16.83~23.56 -6.62~9.27
300 159.00 254.40 4.04 6.46 29.68 47.49 9.05 14.47 -20.19~28.27 -7.95~11.13
302 160.06 256.10 4.07 6.50 29.88 47.80 9.11 14.57 -20.33~28.46 -8.00~11.20
Zoom Ratio: 1.6x
O󰀨set
cm (min) inches (min) cm (max) inches (max)
-1.41 -0.56 1.98 0.78
-2.69 -1.06 3.77 1.48
-4.04 -1.59 5.65 2.23
-4.71 -1.85 6.60 2.60
-5.38 -2.12 7.54 2.97
-6.06 -2.38 8.48 3.34
-6.73 -2.65 9.42 3.71
-8.08 -3.18 11.31 4.45
-10.10 -3.97 14.14 5.56
-13.46 -5.30 18.85 7.42
-16.83 -6.62 23.56 9.27
-20.19 -7.95 28.27 11.13
-20.33 -8.00 28.46 11.20
