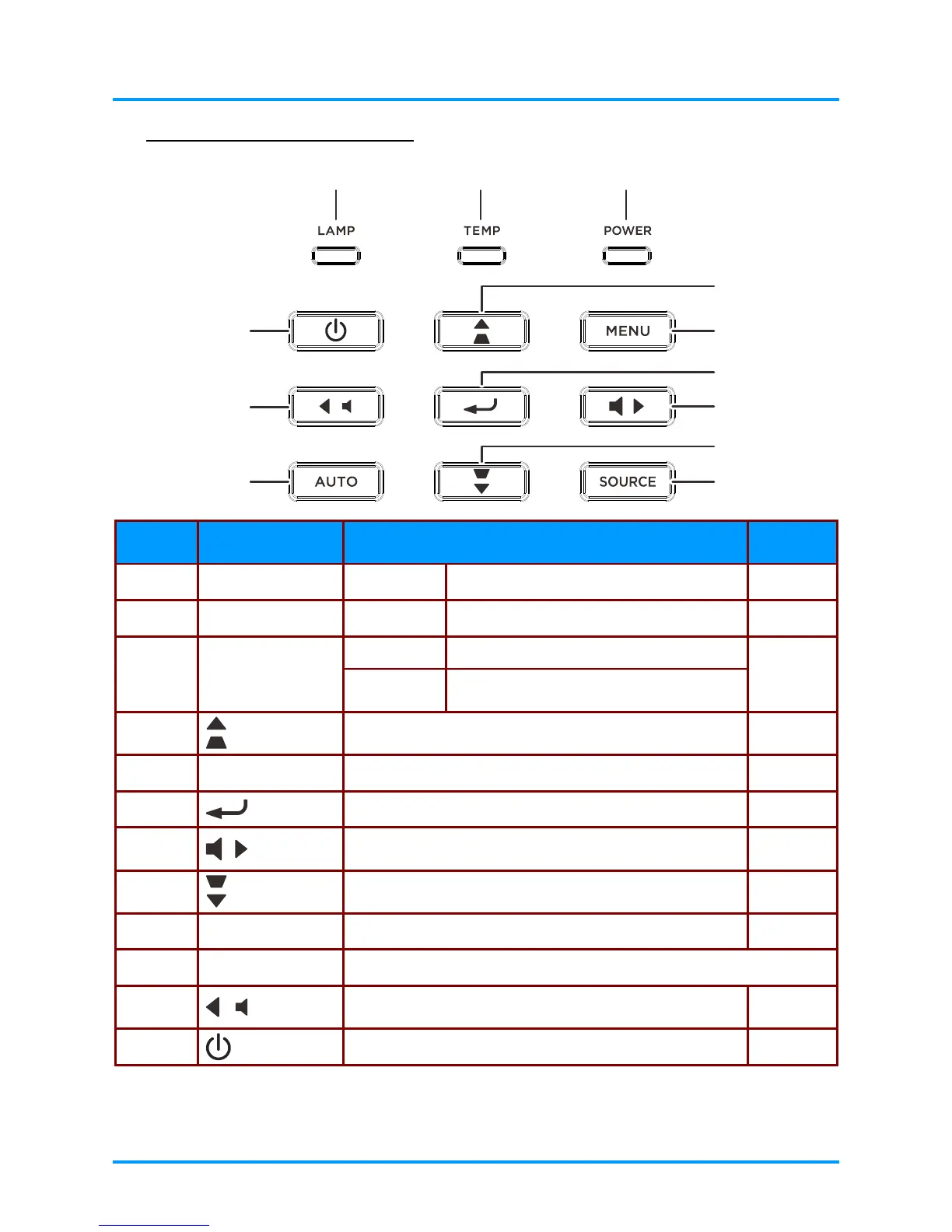

Top view—Keypad and LEDs
ITEM LABEL DESCRIPTION SEE PAGE
1.
LAMP LED Blinking Red Error code
53
2.
TEMP LED Red Over Temperature T1
53
3.
POWER LED
Green Lamp Ready
53
Blinking
Green
Start, Cooling or error code.
4.
Navigates the OSD.
Quick Menu – For Keystone
17
5.
Menu Open and exit OSD menus.
17
6.
Enter or confirm highlighted OSD menu item.
17
7.
Navigate and change settings in the OSD.
Quick Menu – For Volume
17
8.
Navigates the OSD.
Quick Menu – For Keystone
17
9.
SOURCE Enter the Source menu.
17
10.
AUTO Optimizes image size, position, and resolution.
11.
Navigate and change settings in the OSD.
Quick Menu – For Volume
17
12.
Turns the projector On or Off.
17
