INFOSEC UPS SYSTEM E4 Evolution II + TT Series User Manual

73
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
hotline : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 07 19 AA 59 205 03
 The cable for for E4 Evolution II + 60k TT S HV or E4 Evolution II 30k TT (S) LV should be
able to withstand over 120A current. It is recommended to use 25mm²/AWG 4 for safety and
efficiency.
 The cable for E4 Evolution II + 80k TT S HV or E4 Evolution II 40k TT (S) LV should be able
to withstand over 160A current. It is recommended to use 35mm²/AWG 2 for safety and efficiency.
5) Remove the terminal block cover on the rear panel of UPS. Then connect the wires according to the
following terminal block diagrams: (Connect the earth wire first when making wire connection. Disconnect
the earth wire last when making wire disconnection!)

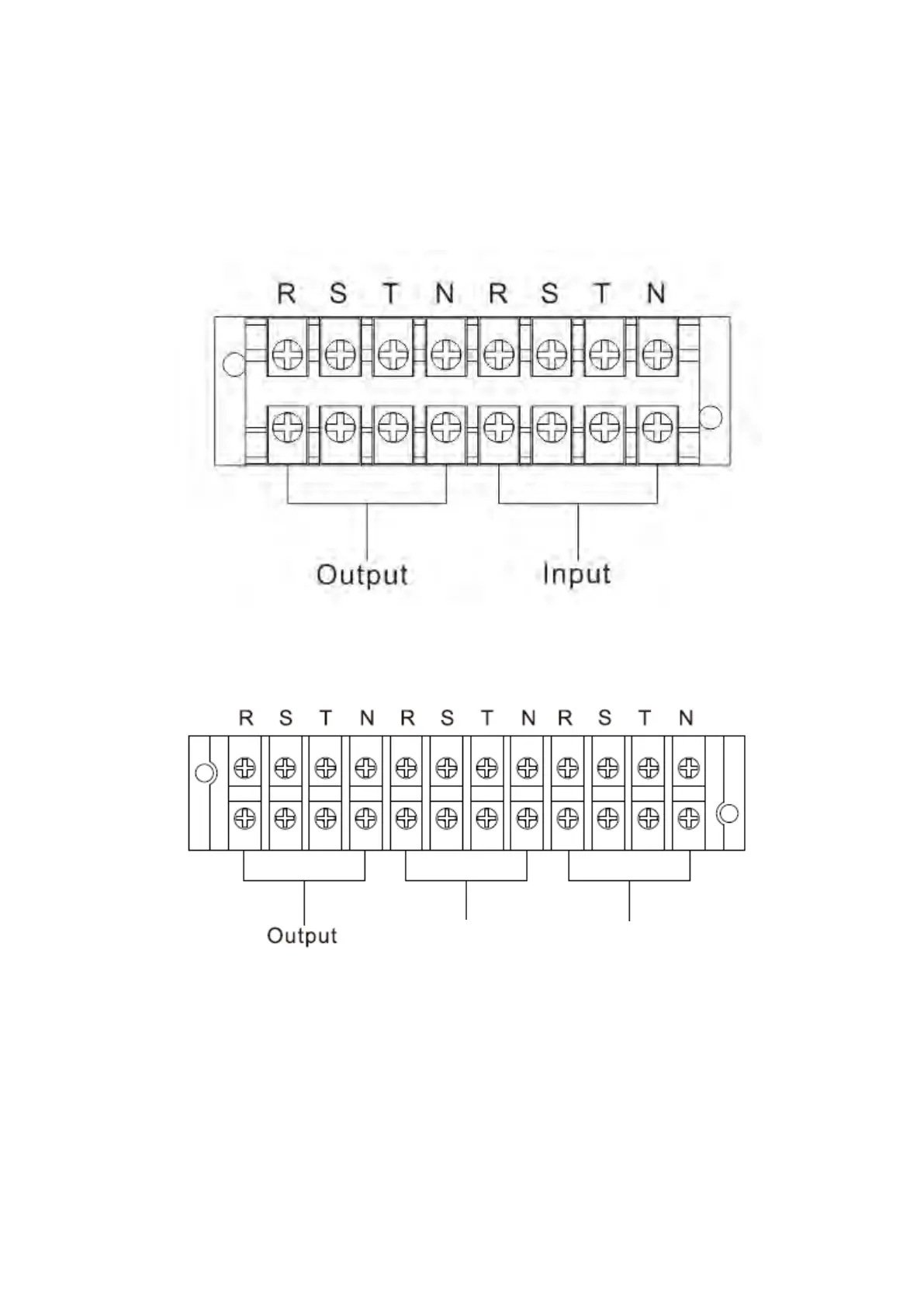

Terminal block wiring diagram for E4 Evolution II + 10/15/20k TT HV (standard)
E4 Evolution II + 10k LV HV (standard)
Terminal block wiring diagram for E4 Evolution II + 10/15/20k TT HV (optional dual input)
E4 Evolution II + 10k TT LV (optional dual input)
Entrée
Entrée de le
bypass
