INFOSEC UPS SYSTEM E4 Evolution II + TT Series - 3-10. Warning Indicator: Icon Flashing; 3-11. Warning Code

97
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
hotline : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 07 19 AA 59 205 03
Warning
status
Description

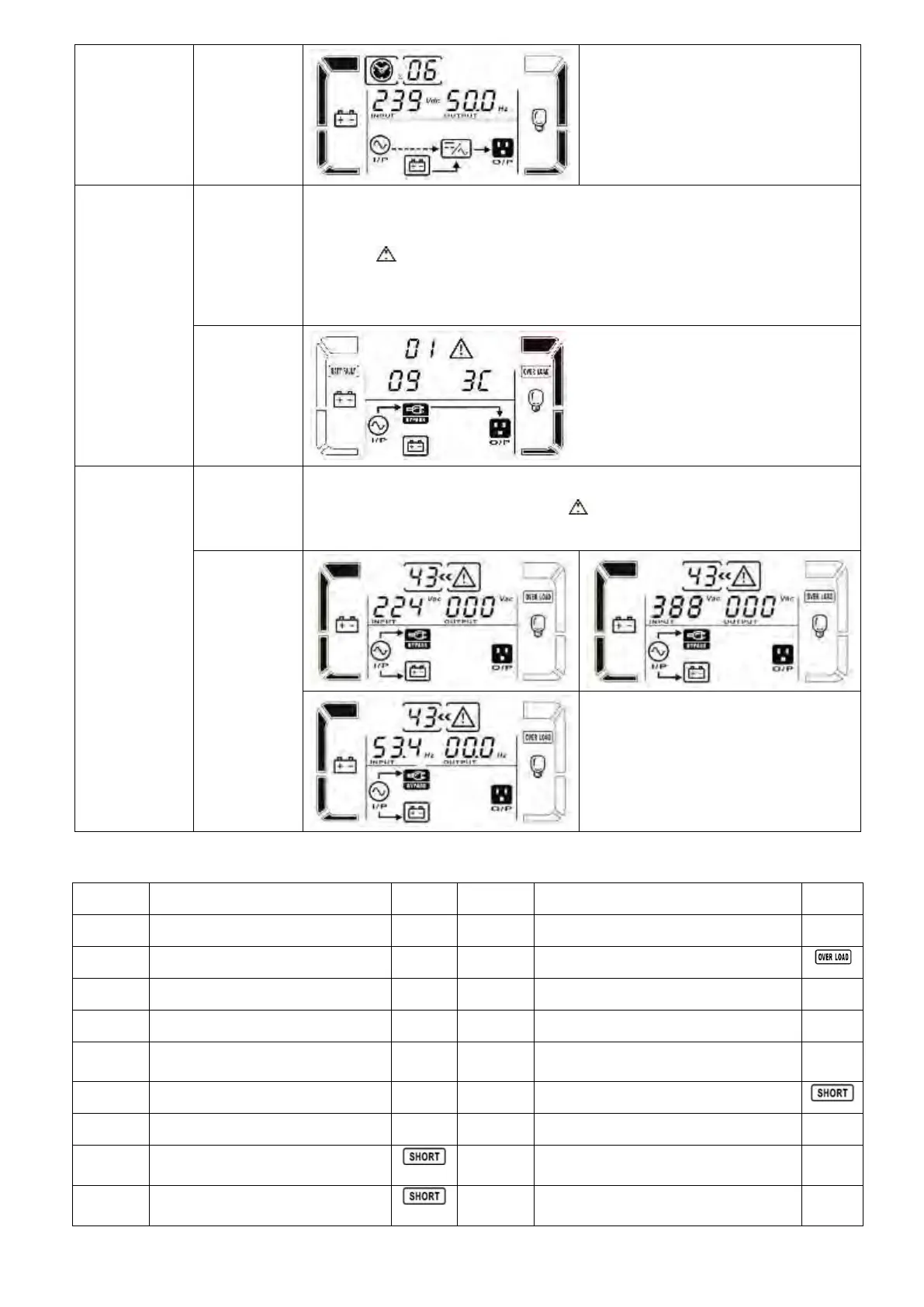

If some errors occur in the UPS (but it is still running normally), it will show
