2-3. Battery
2-3-1. Battery Replacement
NOTICE: This UPS is equipped with internal batteries and user can replace the batteries
without shutting down the UPS or connected loads.(hot-swappable battery design)
Replacement is a safe procedure, isolated from electrical hazards.
CAUTION!! Consider all warnings, cautions, and notes before replacing batteries.
Note: Upon battery disconnection, equipment is not protected from power outages.

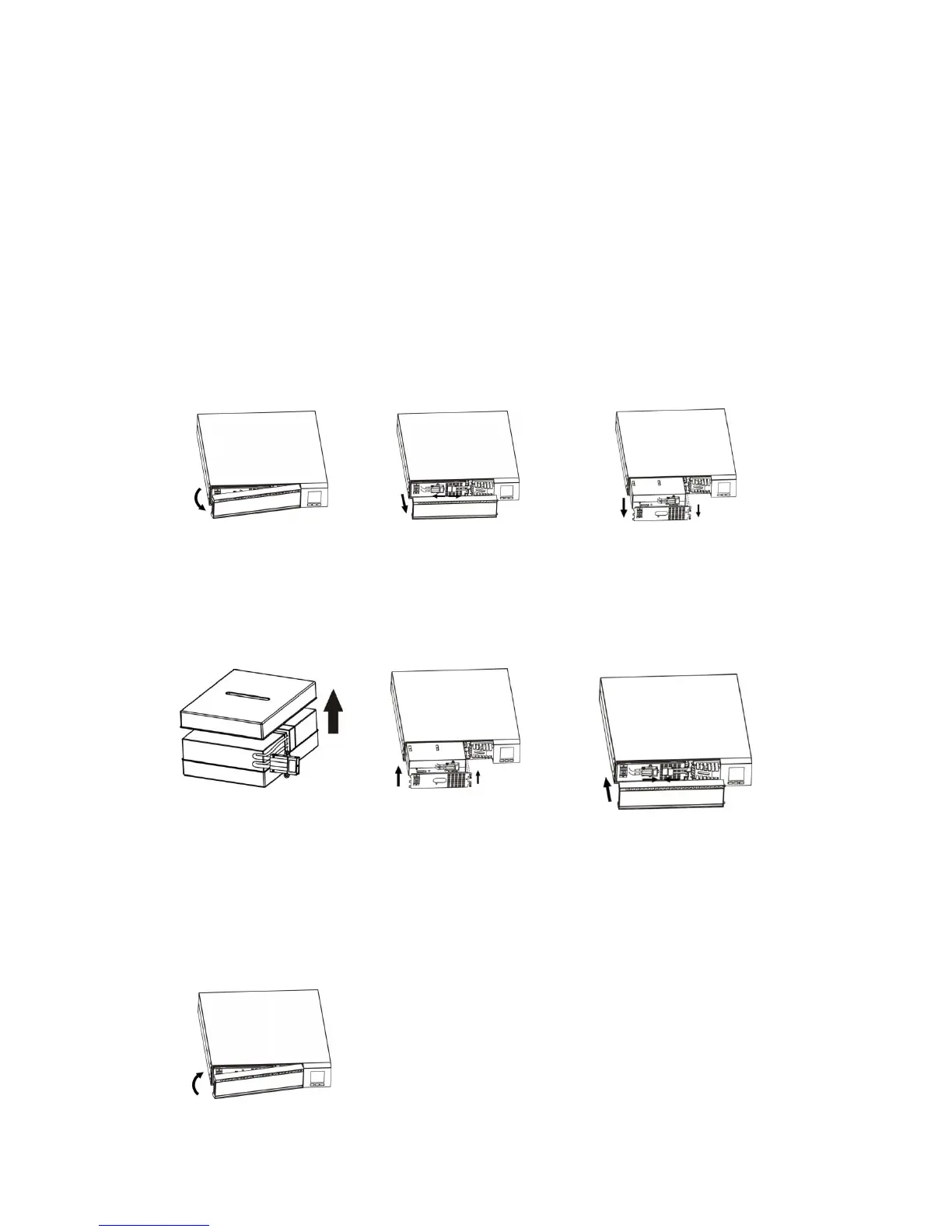

 Step 1
 Step 2
 Step 3
Remove front panel.
Disconnect battery
wires.
Pull out the battery box by
removing two screws on the
front panel.
 Step 4
 Step 5
 Step 6
Remove the top cover of
battery box and replace
the inside batteries.
After replacing the
batteries, put the
battery box back to
original location and
screw it tightly.
Re-connect the battery wires.
 Step 7
Put the front panel back to the unit.
