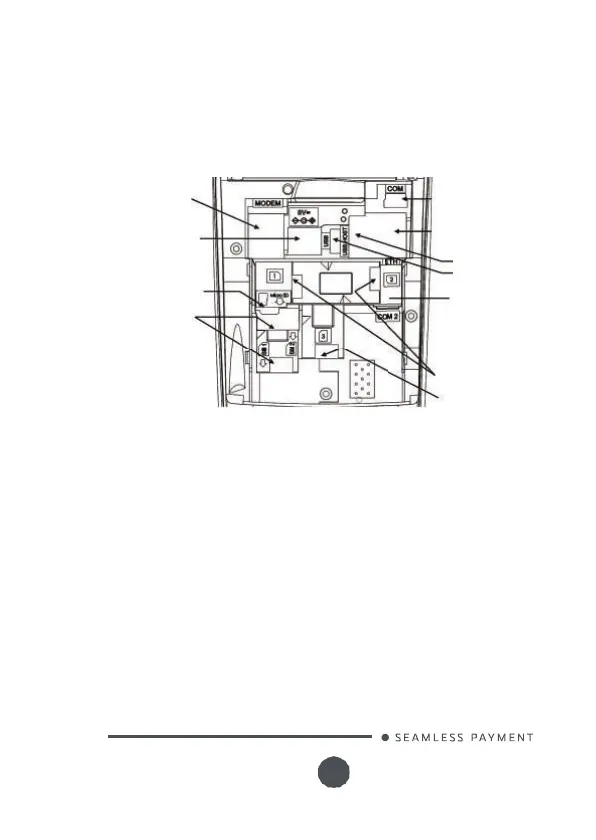

4_3 Connections

All connections are on the rear of the terminal protected by a down

side trapdoor.

Telephone

(Optional)*

Power Supply

µSD (Optional)*

SIM 1 & 2

(Optional)*

Serial Link

RS232

Ethernet Link

(Optional)*

10/100 BaseT

USB Host

USB Host/

Slave

Serial

Link RS232

(Optional)*

SAM 1 & 2

SAM 3 (Optional)*

*according to the model

Phone : TNV-3.

Power Supply : Limited Power Source.

Other connections : Safety Extra-low Voltage.

According to IEC60950-1 and EN60950-1
