Installing the Terminal - Cable

fixing

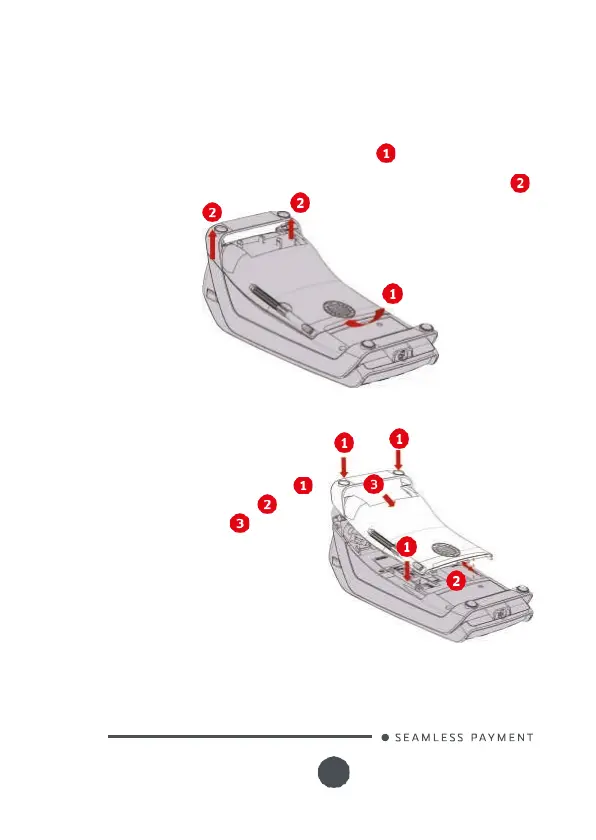

Opening down-side trapdoor

Unclip the trapdoor by pushing on the clip

with your finger as

shown on the figure here below.

Then lift the trapdoor rearward to remove it, as shown by arrows

on the figure

Closing down-side trapdoor

To close the trapdoor, start by

landing trapdoor on to bottom

casing as shown on the figure

manage 5/6mm distance

for clip

insertion then push and clip it.
