Nets One PA user guide | 8
Installing iCT250E with a network connection
The terminal must be turned off when connecting the Ethernet connection.

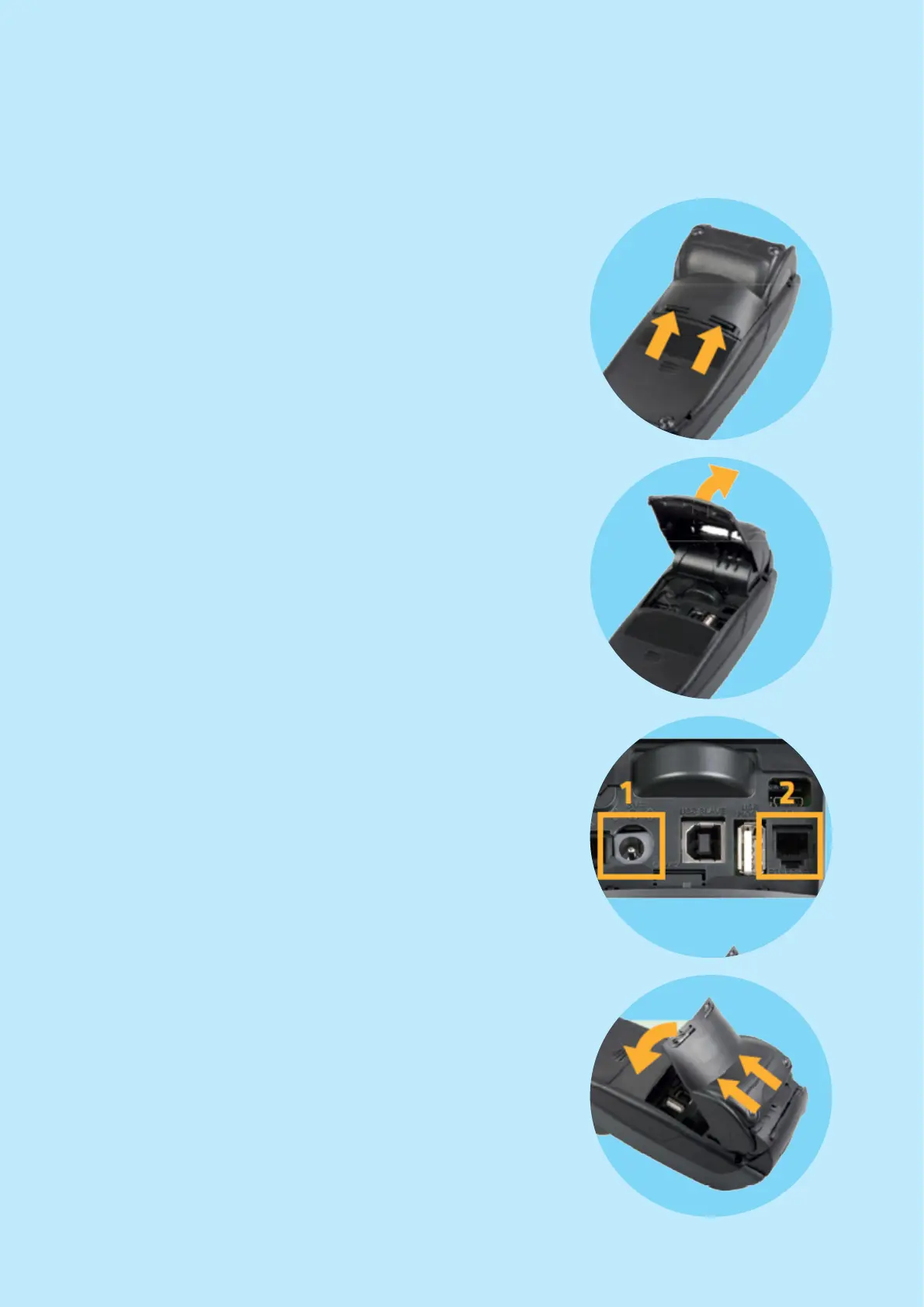

Open the cable cover by pressing the clips
upwards.
Lift the cover in the direction of the arrow.
When the cover has been removed, connect the
terminal power cable (1) and Ethernet cable (2).
To close the cover again replace the top part, first
ensuring that the cover clips are in place on the
terminal. Then press the cover down towards the
back of the terminal.
