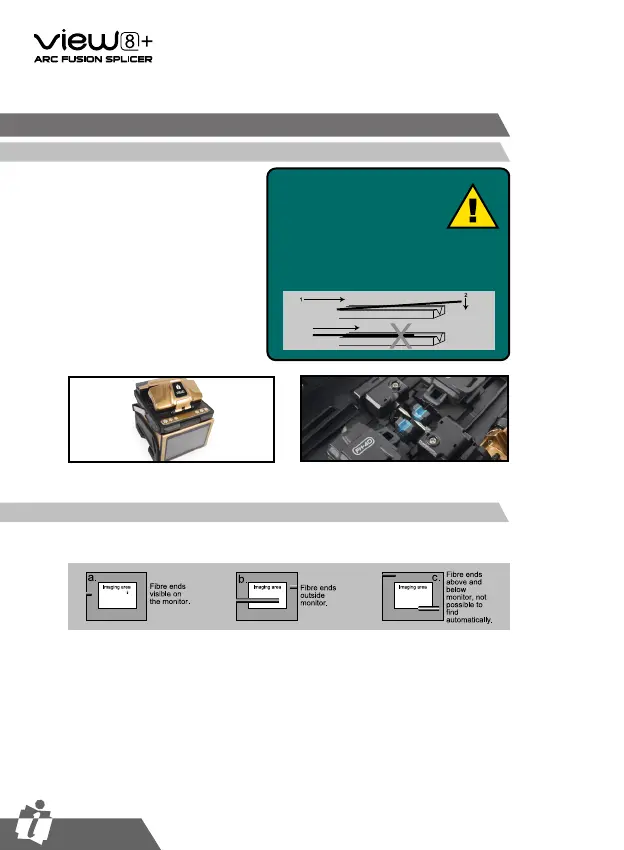

① Open the safety shield.
② Raise the fiber clamps.
③Position the fibers into V-grooves.
Make sure the fiber ends are
between the V-groove edges and
the electrode tip.
④ Clamp the fiber in position by
lowering both sets of fiber clamps.
⑤ Close the safety shield.
Before continuing with splicing, inspect the fibers whether they are clean and well-
cleaved. If any defects are found, please remove the fibers and prepare again.
How to Make a Splice
Put the optical ber in
Inspecting the Fibers
Note:
Make sure to avoid sliding
the fibers along V-grooves,
but rather position them over
V-grooves and tilt them down
into place (as shown below).
To Next Page
