① Select any appropriate
splice mode.
② Start splicing by pressing
“SET” button.
After splicing, put the fiber with heat-shrink sleeve into the heat oven. Press [H]
button to execute heat-shrink process to strengthen the splice point.
① Open the heat oven lid
② Lift the left and right fiber holders on the splicer. Hold the heat-shrink sleeve
(previously placed onto the fiber). Lift the spliced fibers and hold them taut. Then
move the heat-shrink sleeve to the splice point.
③ Place the fiber with heat-shrink sleeve in the heat oven clamp.
④ Press [H] button to start heating. Upon completion, the heating LED indicator will
go off with buzzing.
Lip
Note:

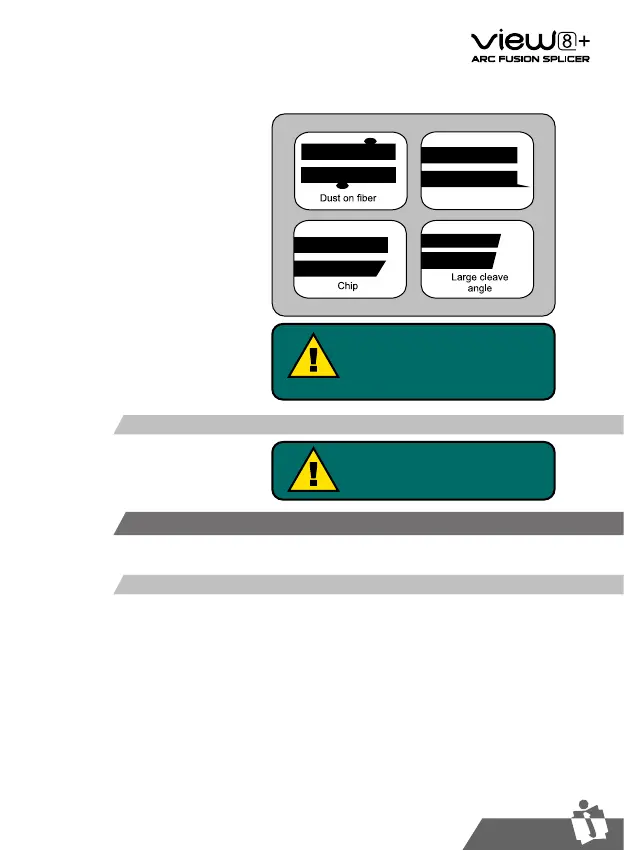

The fibers are checked automatically
when you press Set button. The splicer
automatically focuses the fibers and checks
for damage or dust particles.
Note:
If the splicer is set as “Auto mode”,
splicing will start automatically once the
safety shield is closed.
