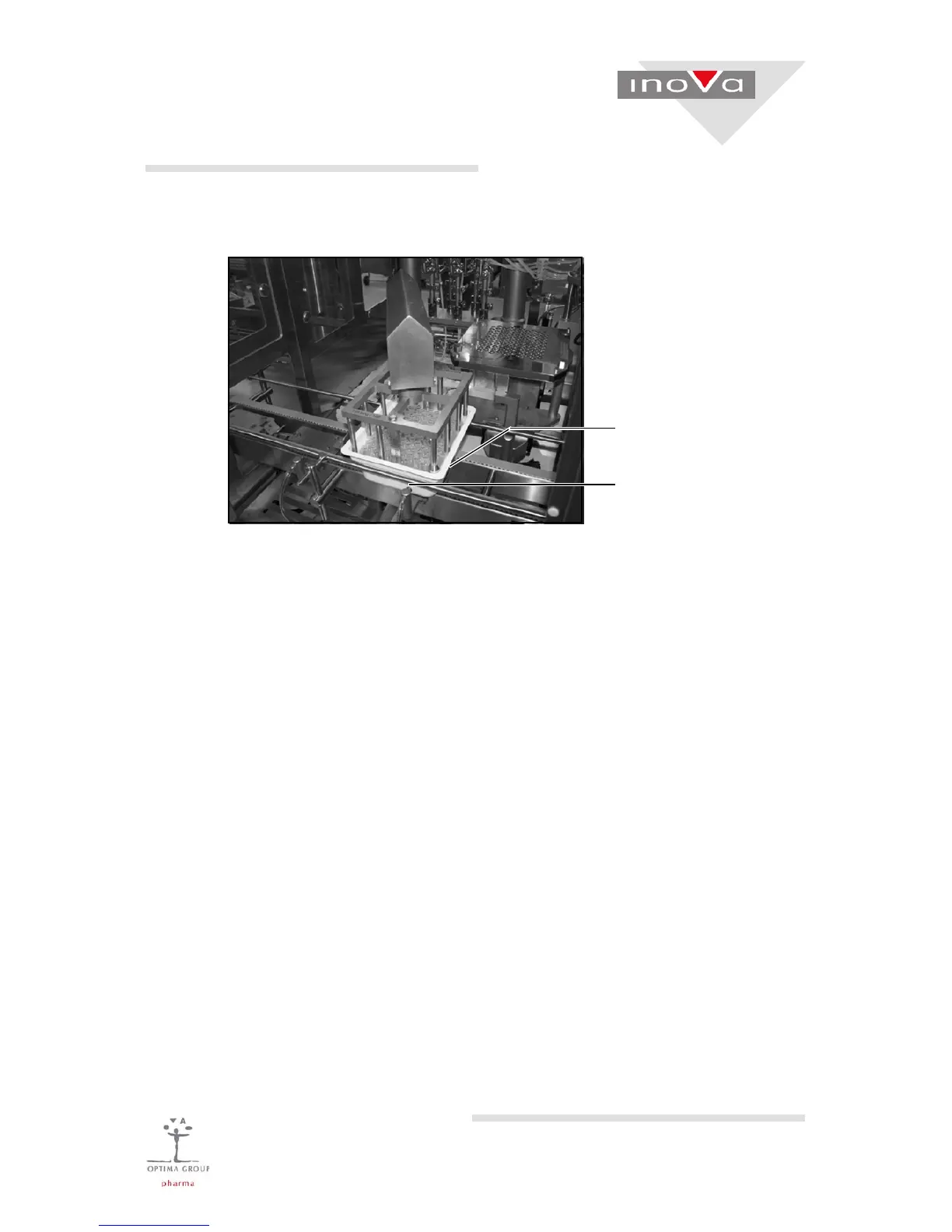

4.2.15 Nest insertion position (14)
AM
AN
The X--Y--table transports the nest with the filled and closed syringes back to start-
ing position.
The nest pick--up device takes the nest out of the centering plate of the X--Y--table
and on the nest insertion position places the nest in the empty tub.
Tub stopper 3 (AM) stops the empty tub at the nest insertion position.
Sensor Tub present (AN) checks, if a tub is present at the nest insertion position.
If a tub is present, the nest pick--up device lowers down and the nest is inserted
in the tub.
After the nest has been inserted in the tub, tub stopper 3 releases the tub, which
is then transported to the discharge.
