Introduction
3 Basic I/O speci󶍾cations of the CPU module
■
Input speci󶍾cations
Item Speci󶍾cations
Signal name
High-speed input (di󶍽erential or single-end) (X0-
X5)
High-speed input (single-end)
(X6-XF)
24 V input Di󶍽erential input 24 V input
Rated input voltage
24 V DC (+20% to -15%
,
pulsation within 5%)
EIA standard RS-
422-A di󶍽erential
line drive level
(equivalent to
AM26LS31)
24 V DC (+20% to -15%
,
pulsation
within 5%)
Rated input current
7.3 mA (typical value) (for DC
24 V)
7.3 mA (typical value) (for DC 24
V)
ON current Above 5 mA Above 5 mA
OFF current Below 1.5 mA Below 1.5 mA
Input resistance 3.3 kΩ 3.3 kΩ
Max. counting speed 800 Kbps (2-phase fourfold Frequency Multiplication)
,
200 kHz (single-channel input)
Duty cycle range of the
2-phasse input
(40%:60%) to (60%:40%)
Common terminal mode
Independent common
terminal for each channel.
--
One common terminal for every
󶍾ve channels
■
Output speci󶍾cations
Item Speci󶍾cations
Signal name Output (Y0-Y7)
Output polarity Source output (high level output
,
PNP type)
Control circuit voltage DC 5 V to 24 V
Rated load current 0.1 A/channel
,
0.5 A/COM
Max. voltage drop upon ON 0.2 V (typical value)
Leakage current upon OFF Below 0.1 mA
Output frequency 200 kHz (the external equivalent load of the user must be higher than 12 mA.)
Common terminal mode One common terminal for every four channels
NOTE
◆
The total extended distance of the extension cable of the high-speed I/O interface must be less
than 3.0 m.
◆
The duty cycle must be greater than 40% when two-phase (phase A and phase B) input mode is
adopted.
4 Dimensions
3940
2 1
CN5
CANERR
CANRUN
BF
SF
ERR
RUN
0 1 2 3 7654
4 5 6 73210
I
II
RUN/STOP
MFK
2 765410 3
80.0
90.0
3.9
4.0
7.0
CN3 EtherNET CN4 EtherCAT
CN1 RS485 CN2 CAN
95.0

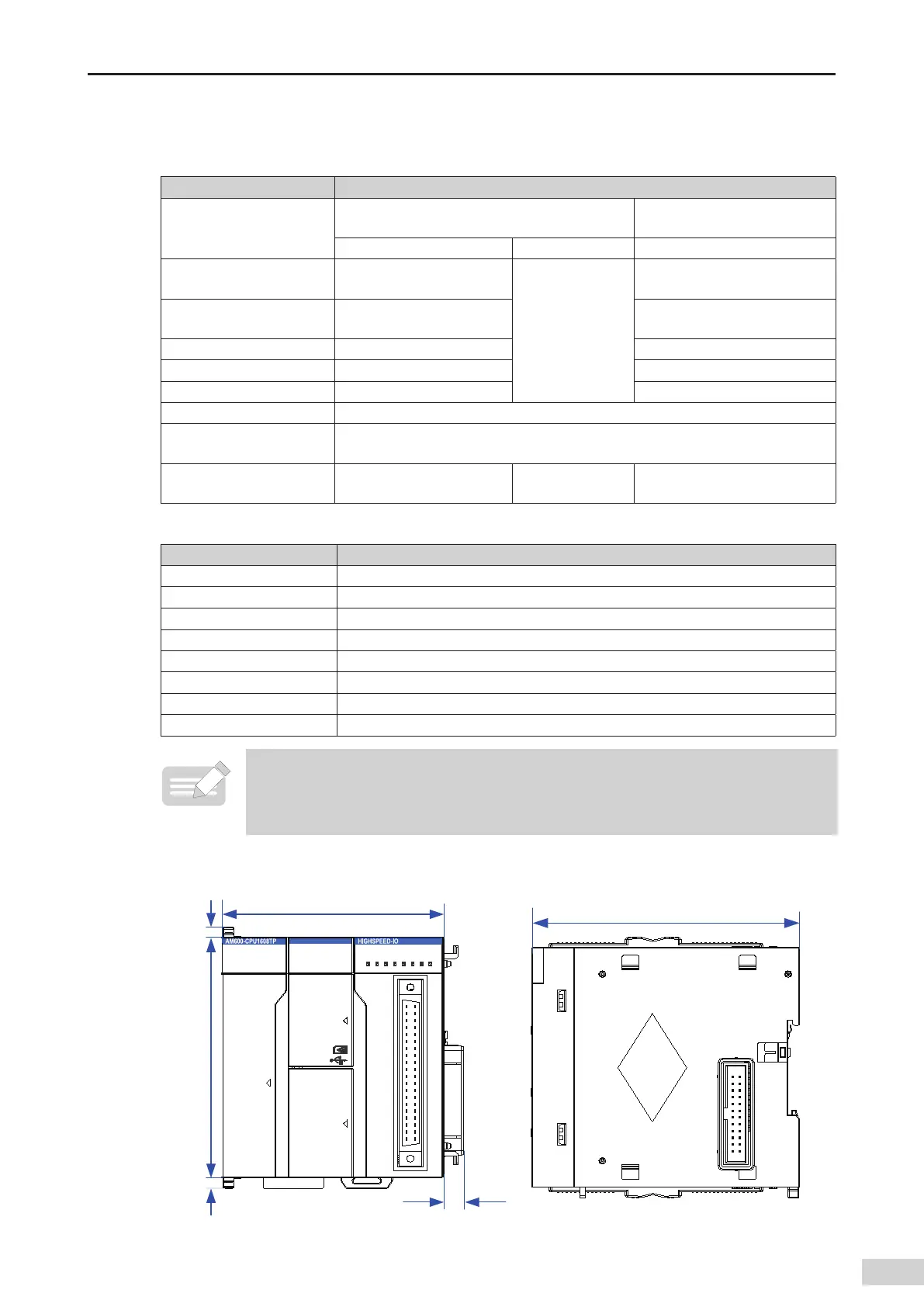

Figure 3-5 Dimensions of the CPU module (AM600-CPU1608TP as an example)
