9 Module Connection
9.1 Connection between Power Supply, CPU and Expansion Modules
The connection between the modules is mainly through the connection
interfaces and latch of each module. The following example instructs how to
connect the CPU module to the power module.
󶍾
解锁

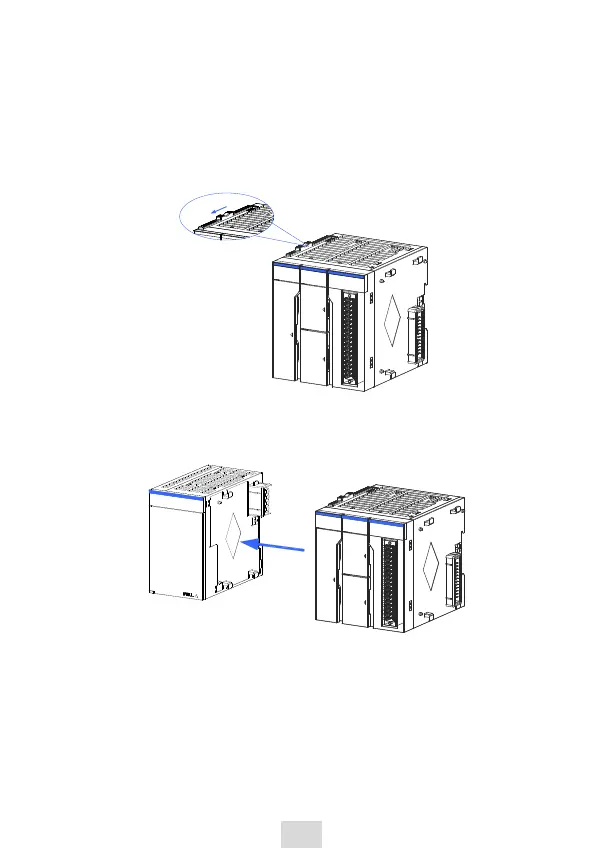

2. Fully connect the connector of the CPU module with the connector of the
power supply module.
󶍾
