机械安装
‑24‑
Item
Description
Wiring Requirements

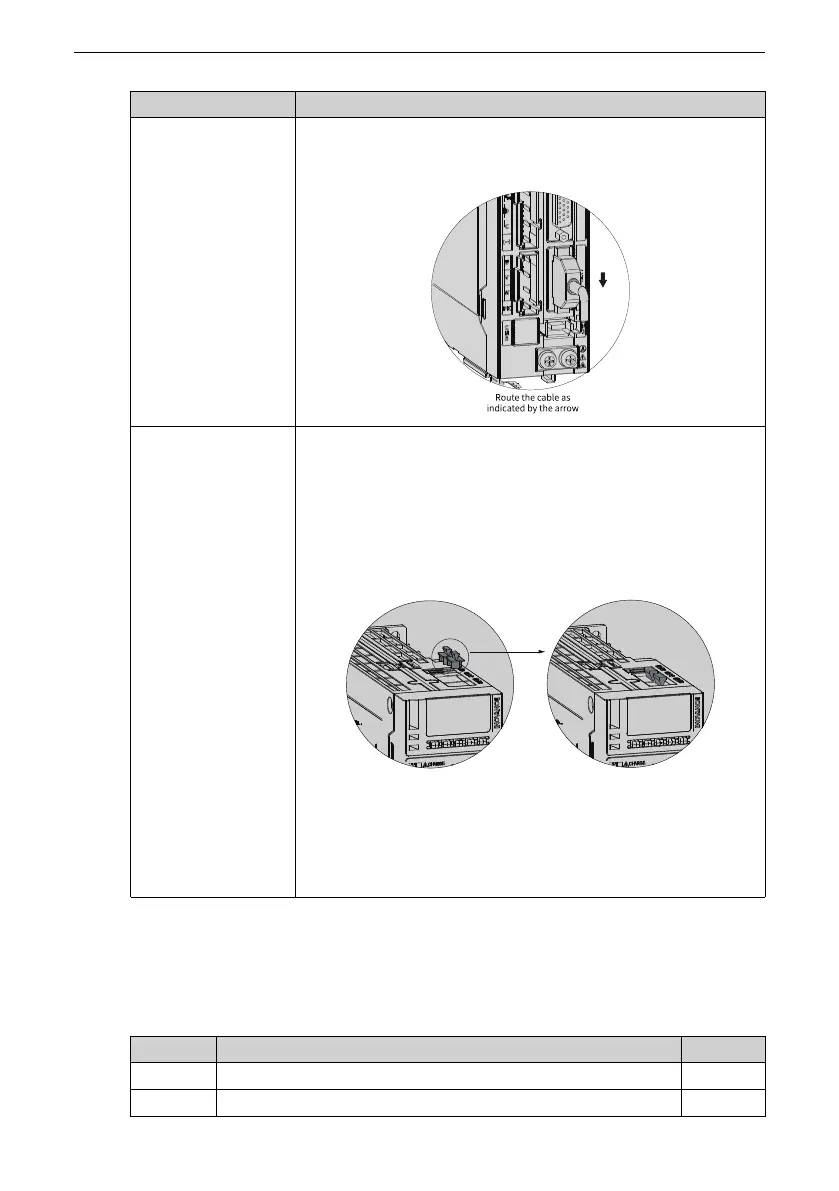

As shown in the figure below, route the servo drive cables
downwards to prevent liquid from flowing into the servo drive
along the cables.
Dust‑proof cover
(included in the
standard
configuration)
Insert the dust‑proof cover into the communication port (CN3/
CN4) not in use. This is to prevent unwanted objects, such as
solids or liquids, from falling into the servo drive and resulting in
faults.
Each servo drive is delivered with two dust‑proof covers inserted
into the communication ports by default. You can place an order
for more dust‑proof covers as needed (model: NEX‑02‑N2B;
manufacturer: PINGOOD).
Note:
● Dust‑proof cover: Prevents unwanted objects, such as solids
or liquids, from falling into the servo drive and resulting in
faults.
● Dust‑proof covers are delivered along with the servo drive.
Keep the dust‑proof covers in a proper place.
5.2 Pre-Inspection
Table 5–2 Inspection Checklist
No.
Description
Yes
1
The delivered product is consistent with your order.
□
2
No deformation or cracks are present on the casing.
□
To Next Page
