Pg. 10 V1.0
STEP 4
UPPER CROSS BARS INSTALLATION

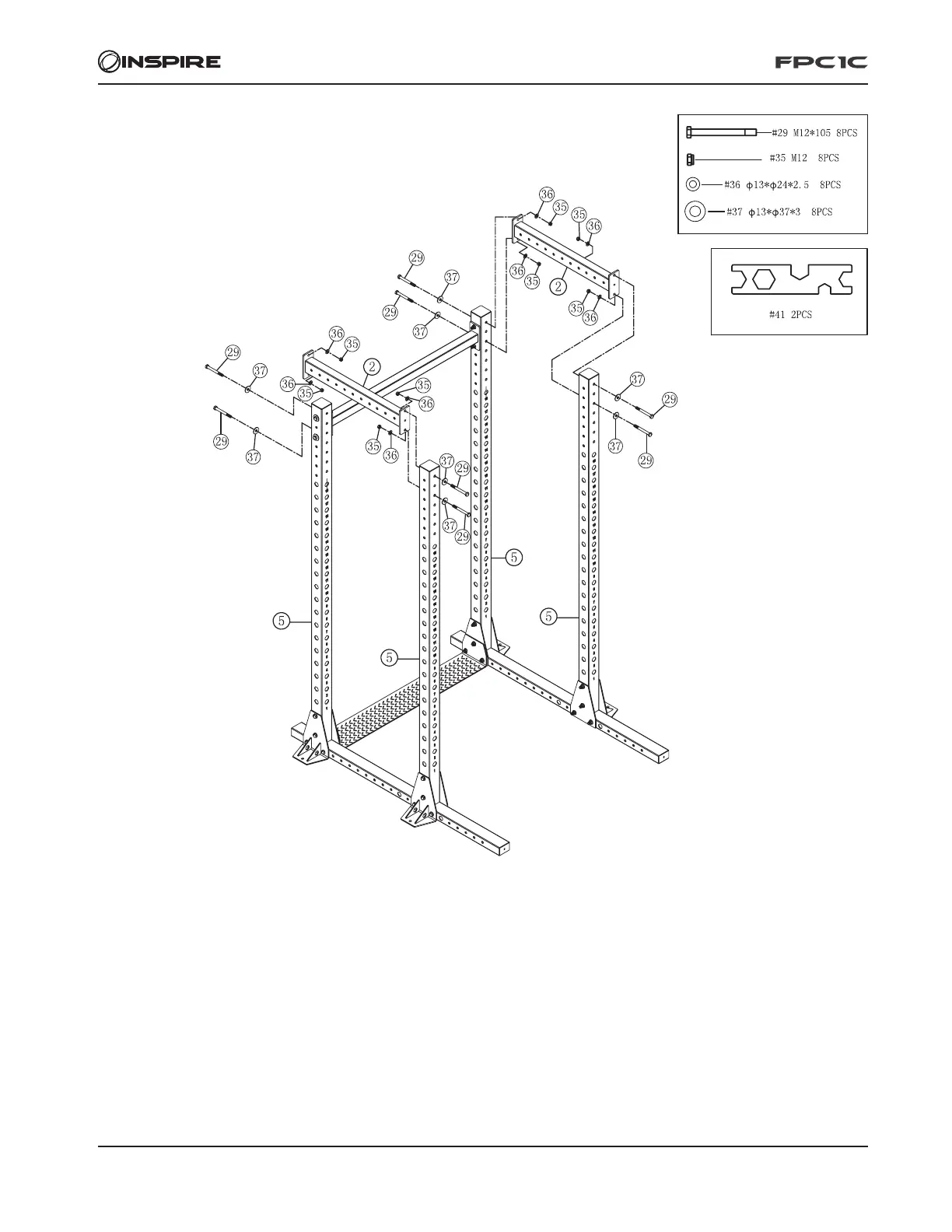

Refer to the illustration above for location and orientation of components.
• Fasten with Bolt (29), Washer (37), Washer (36), and Lock Nut (35).
• Connect the Upper Cross Bar (2), to the 2 the Upright Beams. Left side and Right side.
• Repeat steps for the opposite side.
To Next Page
