Inspire FPC1C User Manual

Pg. 7 V1.0
STEP 1
BOTTOM BASE FRAME ASSEMBLY

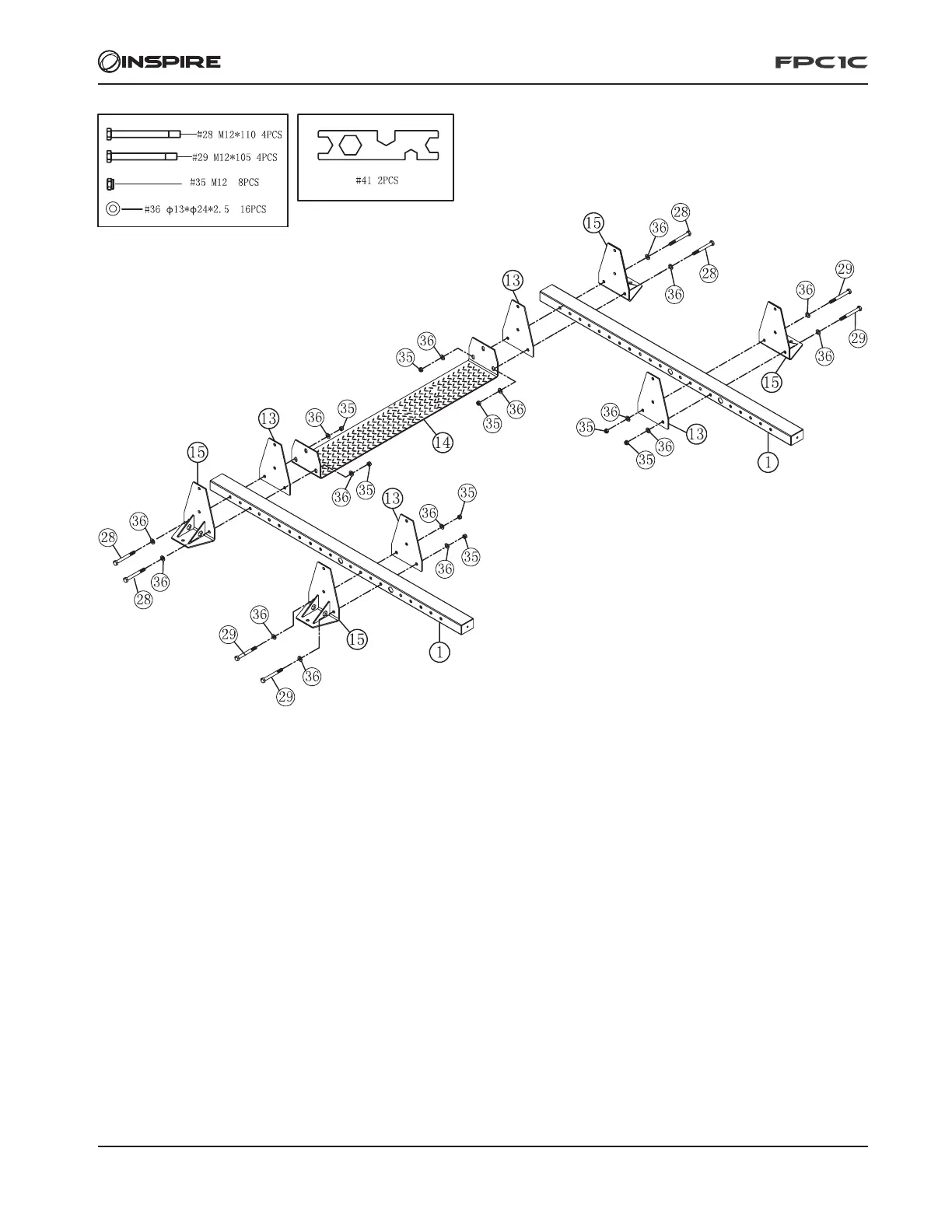

Refer to the illustration above for location and orientation of components. This step consists of a left side and a right side.
• Fasten with Bolt (28), Washer (36), and Locknut (35). Connect Bottom Foot Plate (15) to Bottom Base Frame (1), Bottom
Inner Plate (13), and the Bottom Cross Brace (14), place these items towards the one end of the bottom base frame.
• Repeat Steps for the Opposite side.
• Fasten with Bolt (29), Washer (36), and Locknut (35). Connect Bottom Foot Plate (15) to Bottom Base Frame
(1), and Bottom Inner Plate (13), place these items towards the one end front of the bottom base frame.
• Repeat Steps for the Opposite side.
• Together, these Items form the Bottom Base Frame Assembly.
