STEP 2
UPRIGHT BEAM AND REAR CROSS BAR INSTALLATION

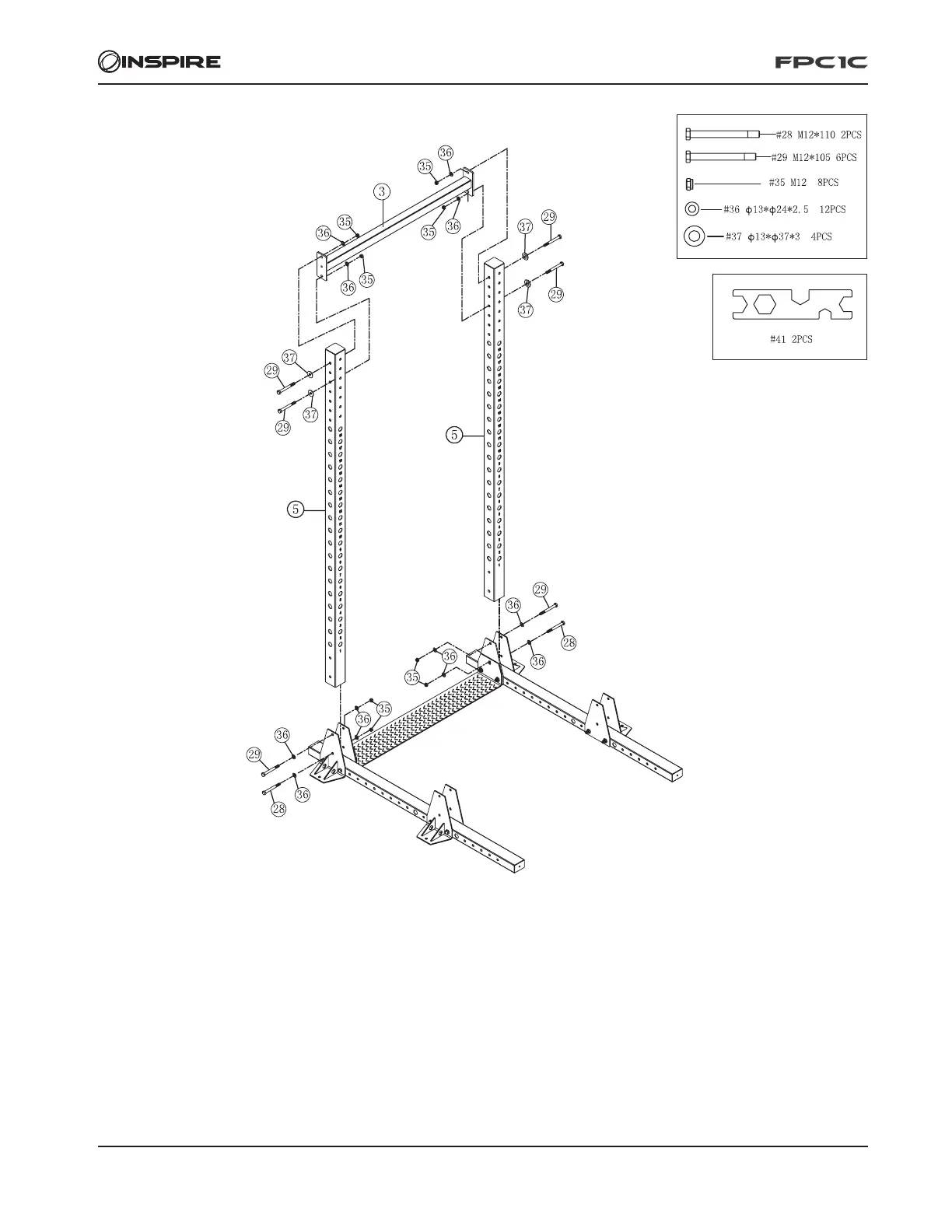

Refer to the illustration above for location and orientation of components.
• Fasten with Bolt (28), at the bottom, Bolt (29) above, Washer (36), and Lock Nut (35). Connect Upright Beam (5) to the
Bottom Base Frame Assembly. Left side and Right side. (Refer to the illustration above for placement.)
• Fasten with Bolt (29), Washer (37), and Lock Nut (35). Connect the Rear Cross Bar (3) to the Upright Beams (5)
and fasten in place.
