Chapter: Installation
36 M10-17318-EN

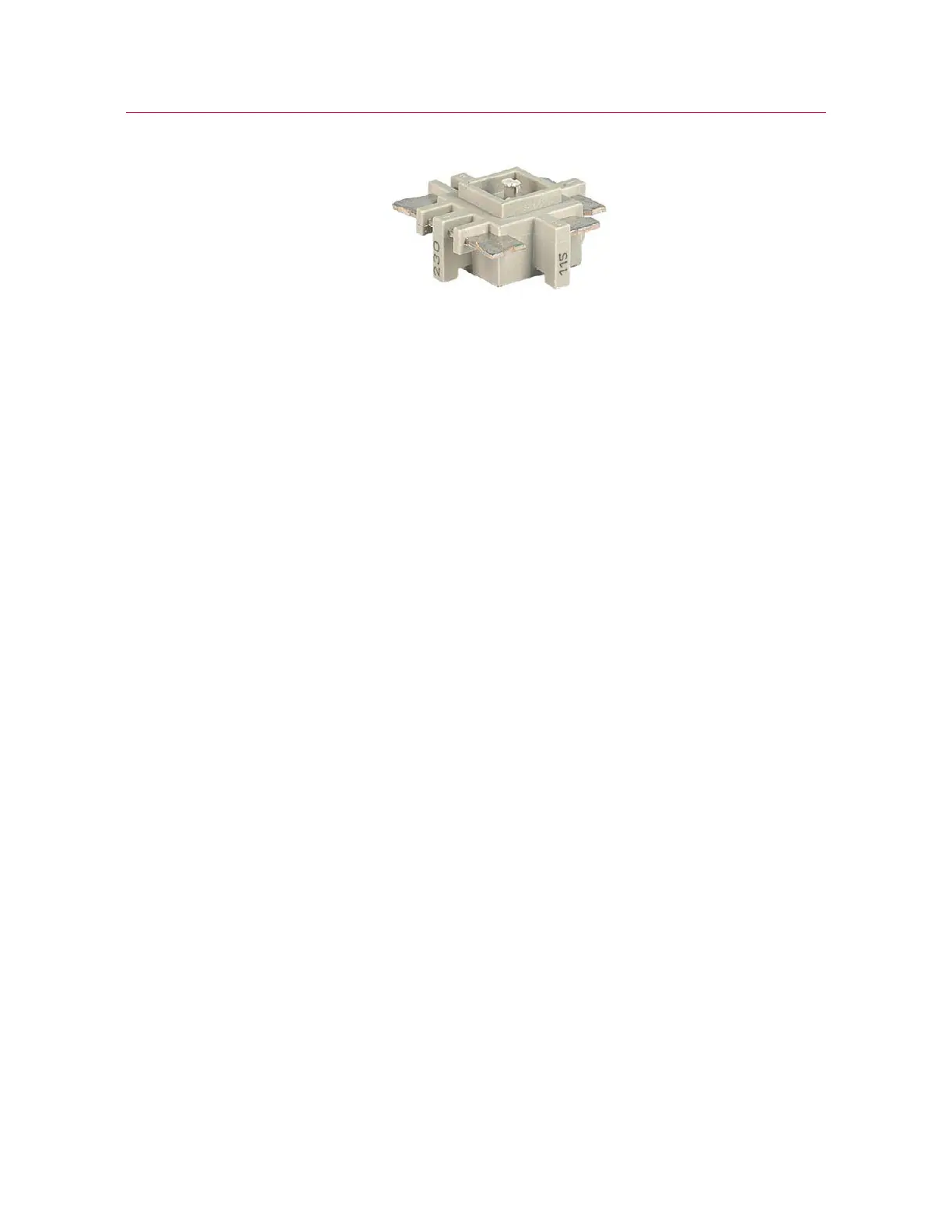

Figure 6. Voltage selector unit
5. Re-insert the voltage selector unit into the connector so that the required voltage
faces front.
6. If necessary, change the fuse holder. Refer to“Replace a Fuse” on page 117 for
instructions on replacing a fuse.
7. Re-install the fuse holder into the connector. Ensure that the indicator pin now indi-
cates the correct input voltage. See Figure 4 on page 34 for reference.
8. Reconnect the power cable to mains power and turn on the system. Verify that the
white
DISABLED indicator on the frame control panel illuminates.
9. Before you carry out any testing, perform the procedure described in “First time
startup” on page 47.
System components
Instron
®
Service installs your testing system. These diagrams and instructions are
provided as a reference if you need to move the system after the initial installation.
