Chapter: Installation
46 M10-17318-EN

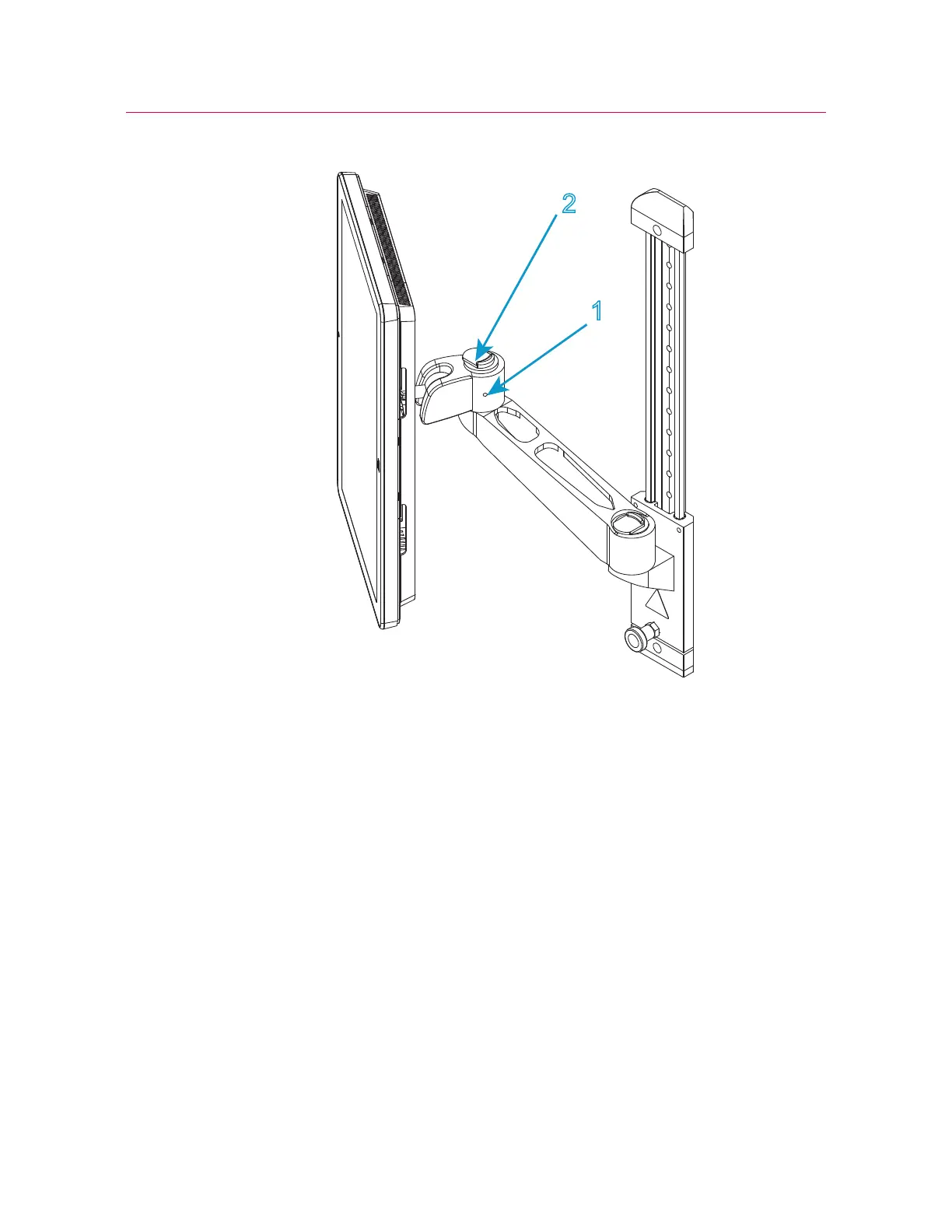

Figure 12. Mounting arm
3. If necessary, loosen the set screw on the side of the “elbow” on the mounting arm (1
in Figure 12 on page 46).
4. Operate the release mechanism on top of the “elbow” (2 in Figure 12 on page 46)
and lift the Bluehill
®
Operator Dashboard clear of the mounting arm (Figure 13 on
page 47).
1
2
