Instron 34TM-5 - Install the load cell

Chapter: Assemble the load string
76 M10-17318-EN
Install the load cell
Install a 2530 load cell (capacities 5 N through 5 kN)

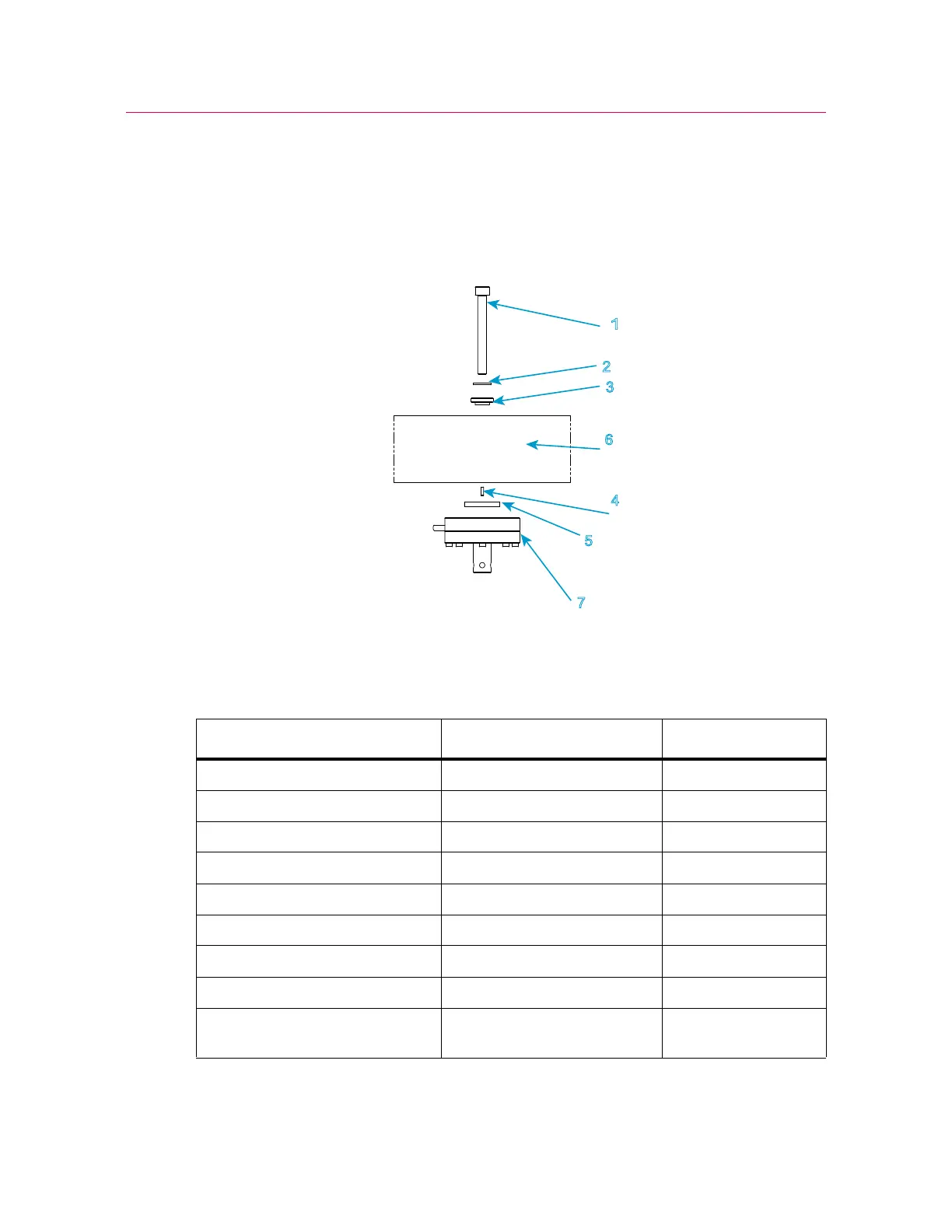

Figure 17. Install a 2530 series load cell - capacities 5 N through 5 kN
Legend for Figure 17
1
2
6
5
7
4
3
5N - 5kN
Label Component Part number
1 (34TM-5 and 34TM-10) Screw, M10 x 90 201V62
1 (34TM-30 and 34TM-50) Screw, M10 x 140 71-63-1169
2 (34TM-5 and 34TM-10) M10 load washer 610J9
2 (34TM-30 and 34TM-50) Two M10 load washers 610J9
3 M10 spacer T604-90
4 Load cell anti-rotation pin 705K84
5 Locating ring T1335-1048
6Crosshead
7 2530 load cell - 5 N through
5kN
