Instron 34TM-5 - Install a 2530-10 Kn Load Cell

Chapter: Assemble the load string
78 M10-17318-EN
Install a 2530-10kN load cell

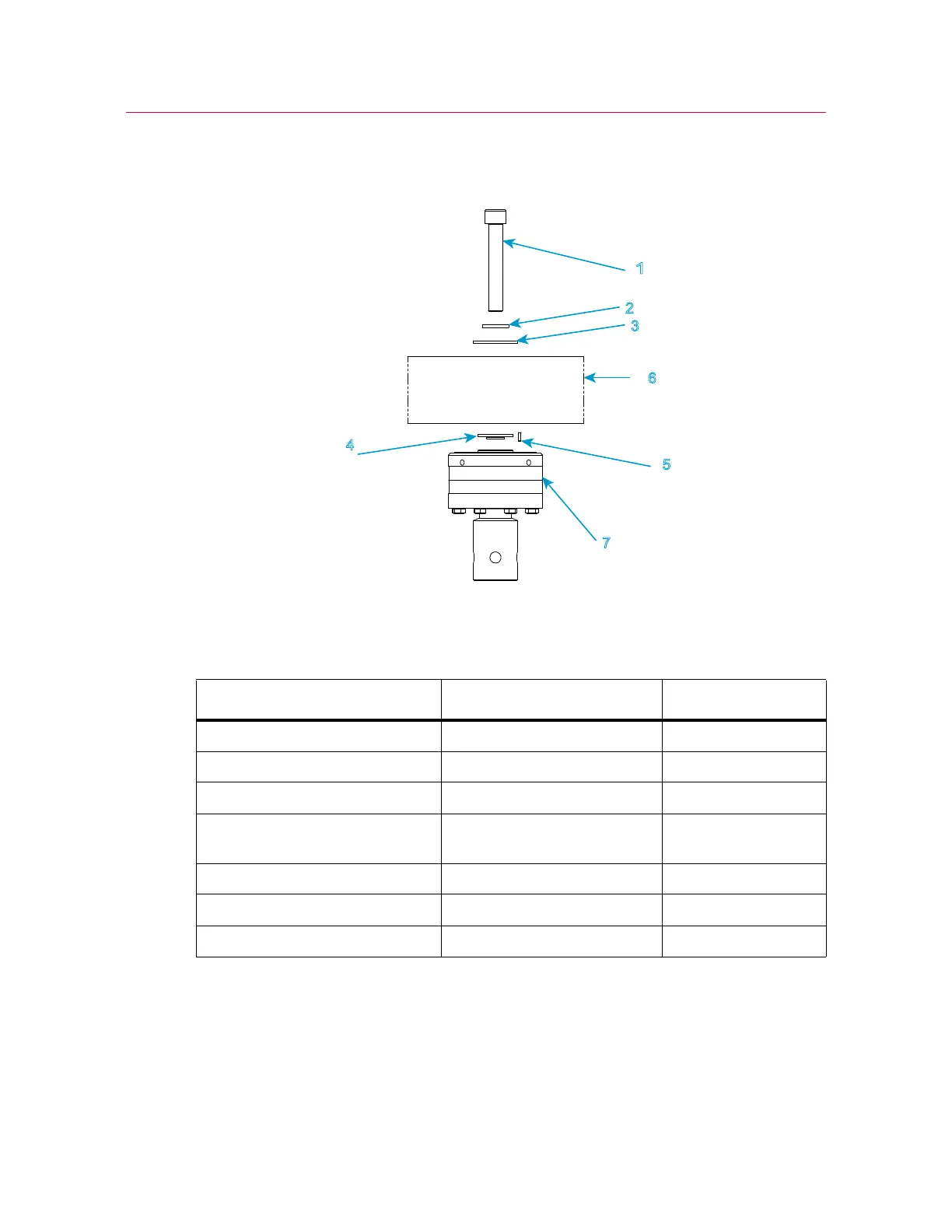

Figure 18. Install a 2530-10kN load cell
Legend for Figure 18
1. Refer to Figure 18 on page 78 and its associated legend.
2. Collect together the correct mounting screw, washer, anti-rotation pin and locating
ring for your combination of load frame and load cell.
3. Assemble the mounting screw and washer, as shown in the figure.
1
2
4
6
7
5
3
10kN
Label Component Part number
1 Screw, M16 x 100 201V85
2 M16 load washer 610J12
3 M17x50x3 mm washer 610K12
4 Locating ring adapter 40/
20 mm diameter
T604-101
5 Load cell anti-rotation pin 705K84
6Crosshead
7 2530 load cell - 10 kN
