Instron 34TM-50 - Install a 2530 Load Cell (Capacities 30 Kn and 50 Kn)

Chapter: Assemble the load string
80 M10-17318-EN
Install a 2530 load cell (capacities 30kN and 50kN)

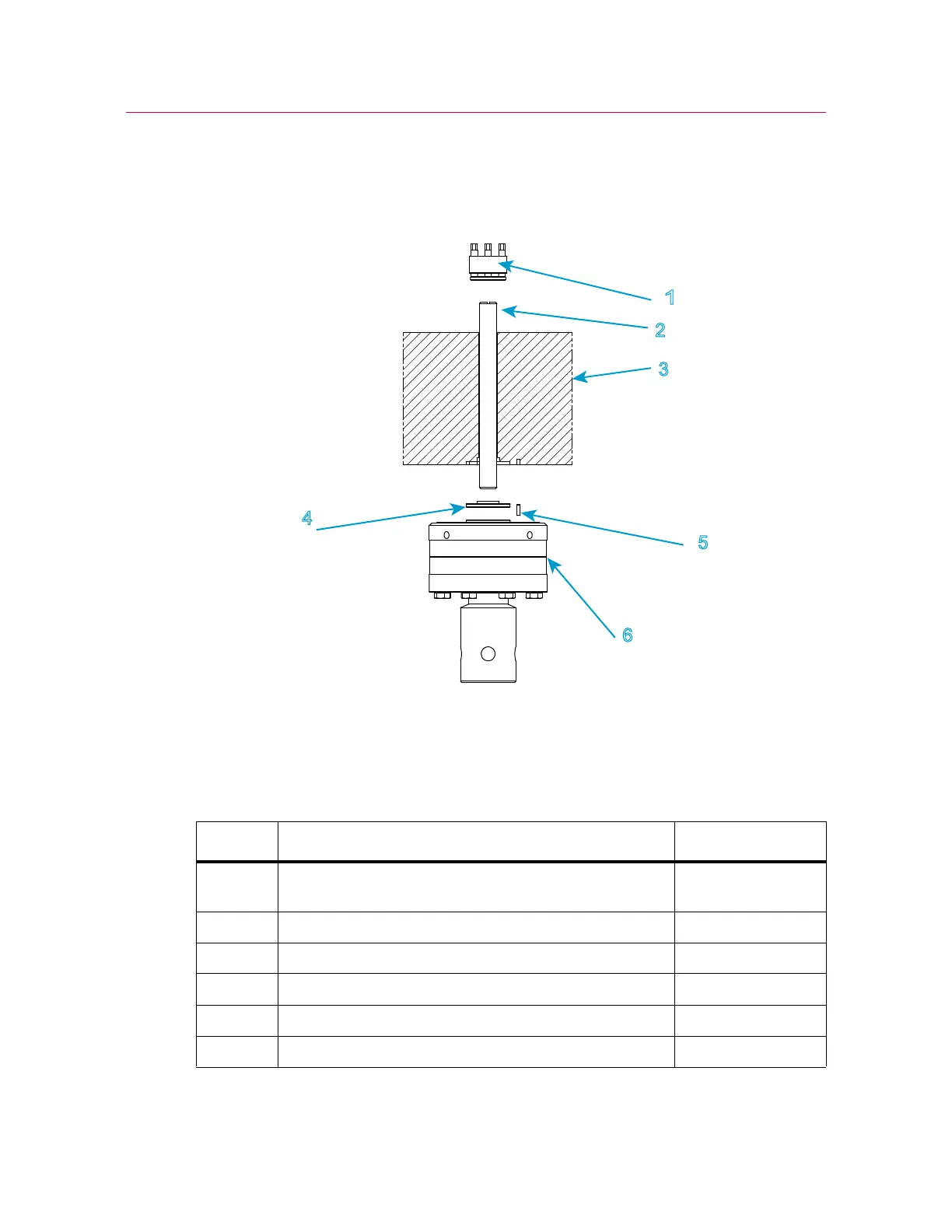

Figure 19. Install a 2530 series load cell - capacities 30kN and 50kN
Legend for Figure 19
1
2
4
6
5
3
30kN - 50kN
Label Component Part number
1 Mechanical tensioner, M16 x 2 thread with matching
washer
52-2-82
2 Threaded rod, M16 x 170 mm long T620-978
3Crosshead
4 Locating ring adapter 40/20 mm diameter T604-101
5 Load cell anti-rotation pin 705K84
6 2530 load cell - 30 kN through 50 kN
