Chapter: Assemble the load string
84 M10-17318-EN
Re-install the base adapter

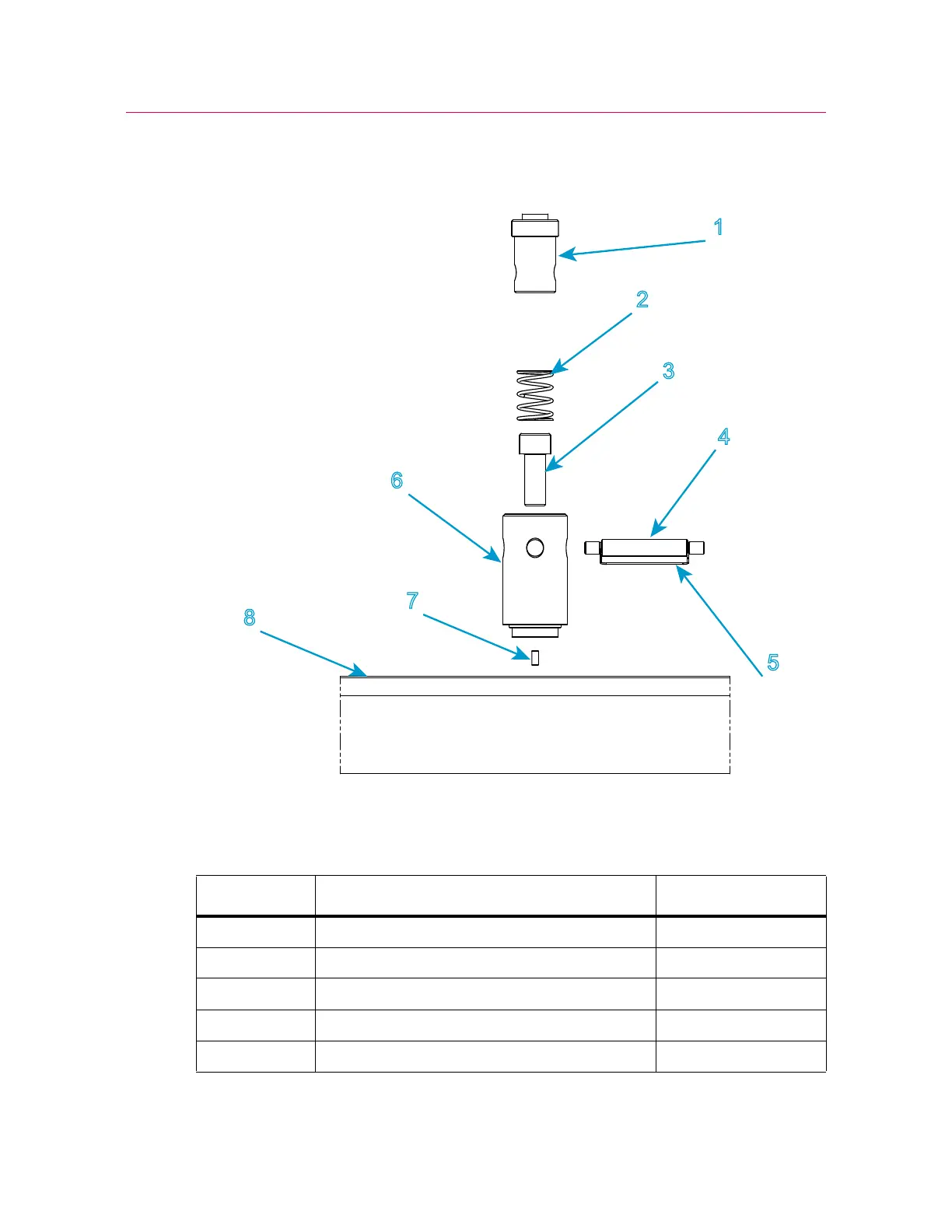

Figure 21. Type D base adapter
Legend for Figure 21
5
4
3
1
2
6
8
7
Label Component Part number
1Grip
2 Compression spring 66-4-23
3 M16x40 mm screw
4 Clevis pin T29-515
5 Clevis pin clip T1223-1053
