b. IDEAL /TSR - Insert a specimen into the Lottman
Breaking Head jig (Figure 5). Raise the top loading
bar and center the specimen on the bottom loading
bar. Lower the top loading bar.
Top Loading
Bar
Roller
Support
Horizontal
Adjustment
Perpendicular
Alignment Bar
LVDT Support
Loading Rod
Contact
LVDT
Support
Horizontal
Adjustment
Roller Support
Perpendicular
Alignment Bar

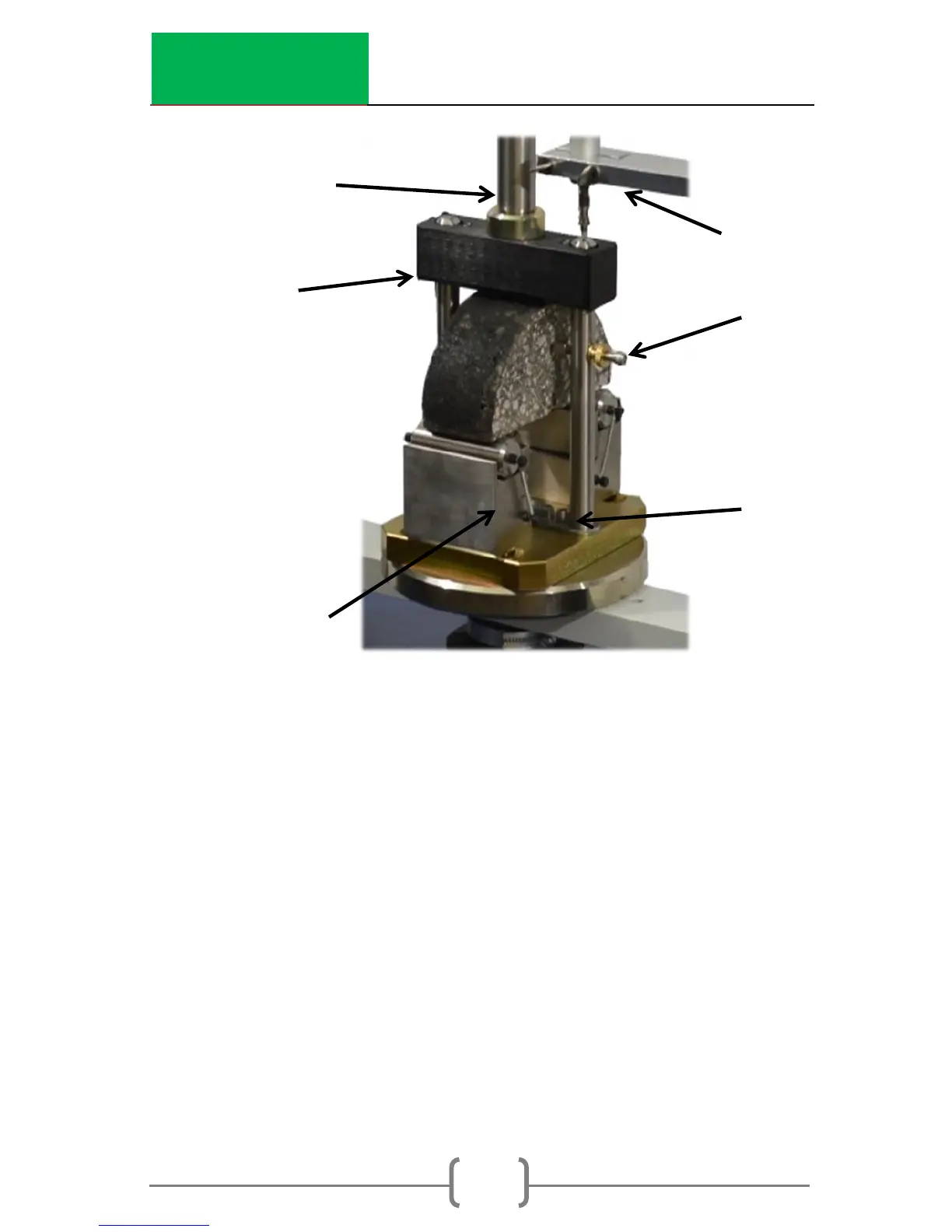

Fig 4. SCB Jig with Asphalt Specimen
