3.12. Activating external input and output signals
3.12.1. General functionality
The following functions can be implemented using external signals, inputs and
outputs:
Silent alarm
Automatic locking with the door switch
Status display of the deadbolt of the lock
External blocking / release of the lock
Display of the end of the opening delay
The electronic lock EloStar time has 2 inputs and 2 outputs for implementing the
above-mentioned functions. A particular function can be assigned to each input
signal and output signal according to the following description of the function
numbers.
The extension unit EloXT and the adapter p.c.b. EloAdapt are available for
professionally connecting the signals of the lock.
EloXT EloAdapt
2 relay outputs 1 open collector output
2 switching inputs / 2 12V inputs 1 switching input
Power supply unit connection 12VDC Voltage connection 9VDC
RS-232 connection
More detailed information can be found in the installation instructions for EloXT and EloAdapt.

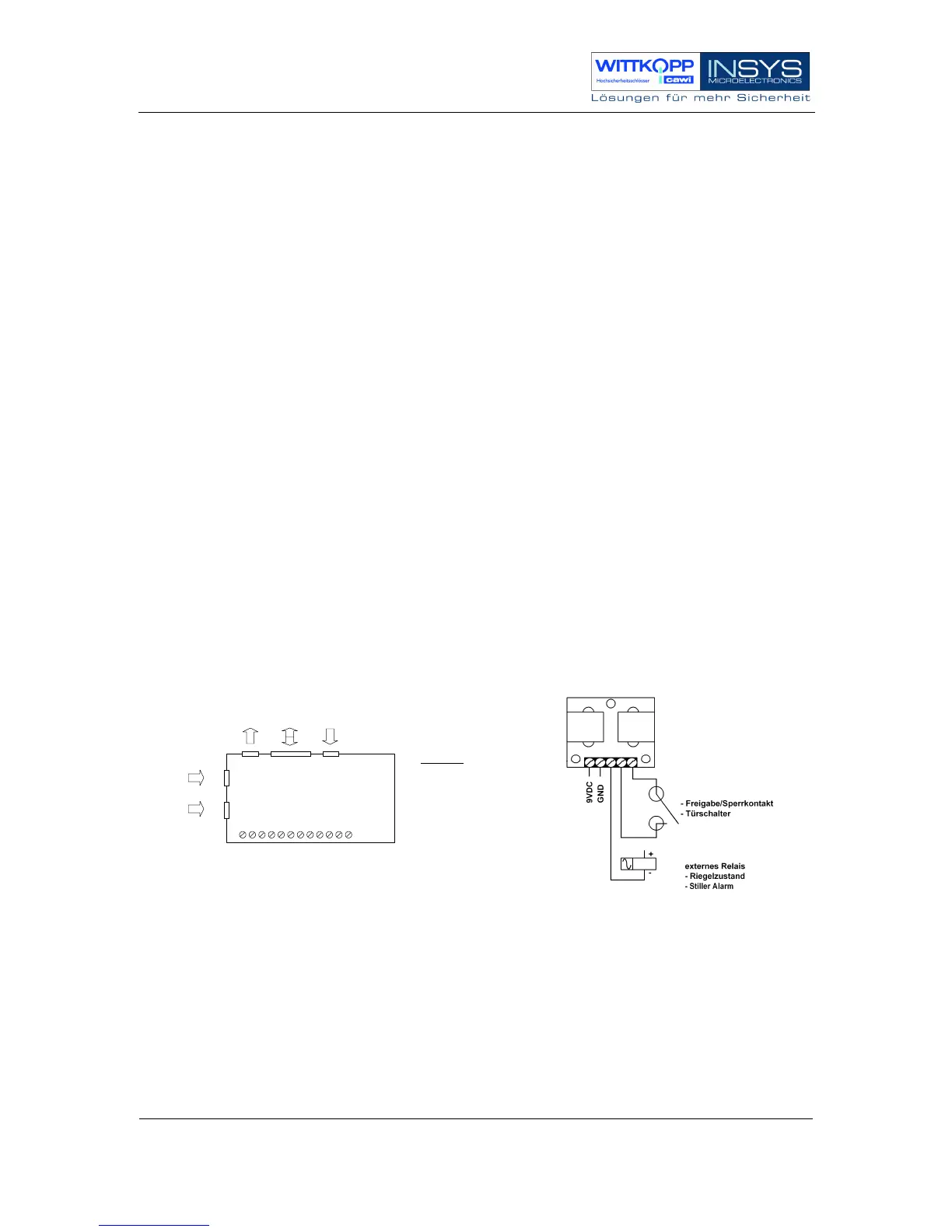

EloXT
1 2 4 5 6 7 8 9 10 11 123
Anschlussbelegung:
1 GND
2 12VDC
3 OUT1_Z
4 OUT1_O
5 OUT1_C
6 OUT2_Z
7 OUT2_O
8 OUT2_C
9 IN2_1
10 IN2_2
11 IN1_1
12 IN1_2
Schloss 7215
Tastatur
PC / Laptop
1
2
12VDC
