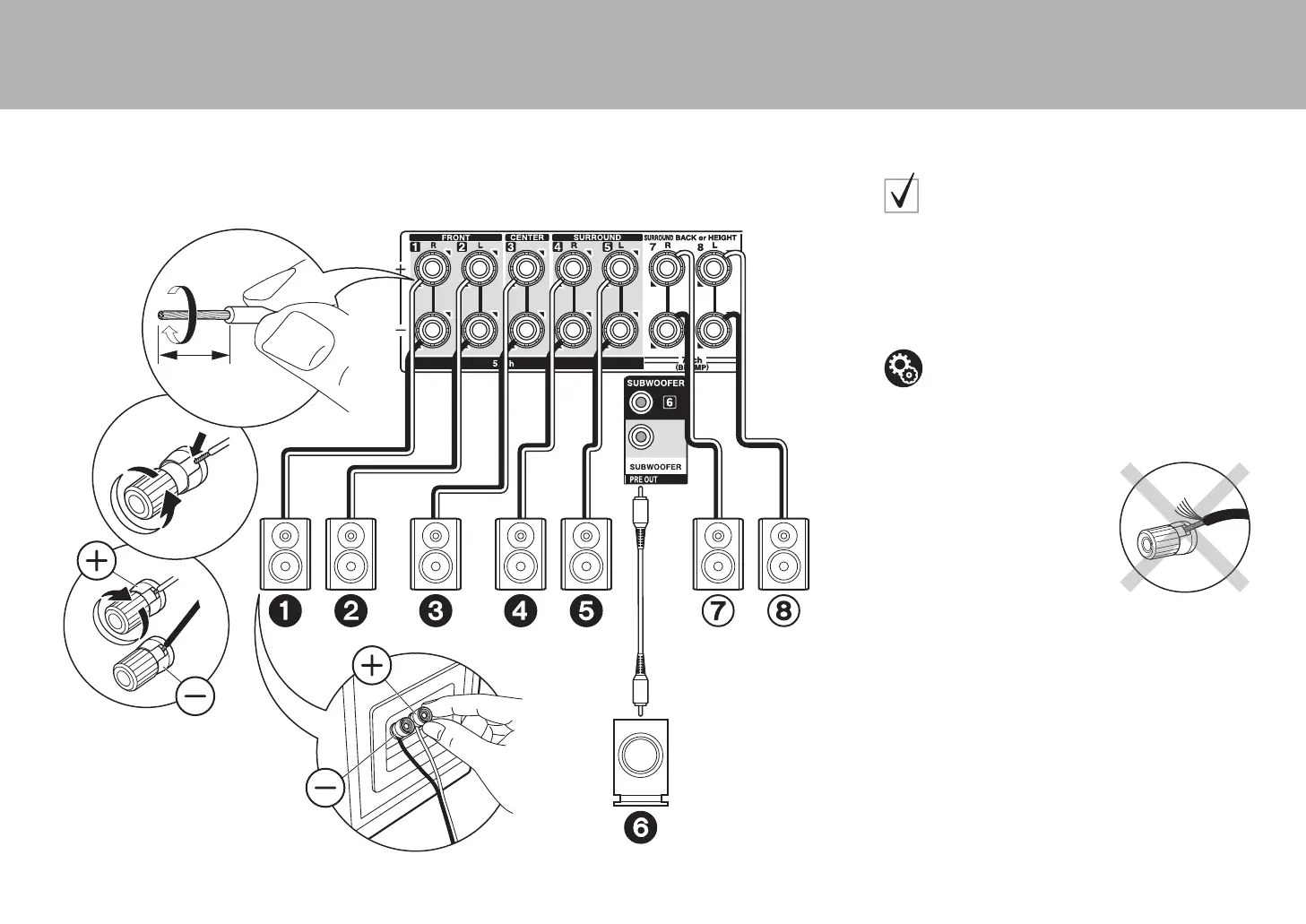

Step2: Connect the Speakers
2
1
1/2˝
(12 mm)
1 Speaker cable, 2 Subwoofer cable
in case of:
Pages 3 to 7
Connect 123456 for a 5.1-channel system. For a
7.1-channel system, select either surround back speakers
or height speakers, and connect 78. Up to two powered
subwoofers can be connected. The same signal is output
from each of the SUBWOOFER jacks.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.
Setup
0 Settings for the speaker configuration you have
connected need to be made in "1. AccuEQ Room
Calibration" (
Ä
P18) in Initial Setup. Note that if
you are using height speakers, set "Speaker
Channels" to "5.1.2 ch" in the setting screen.
