5

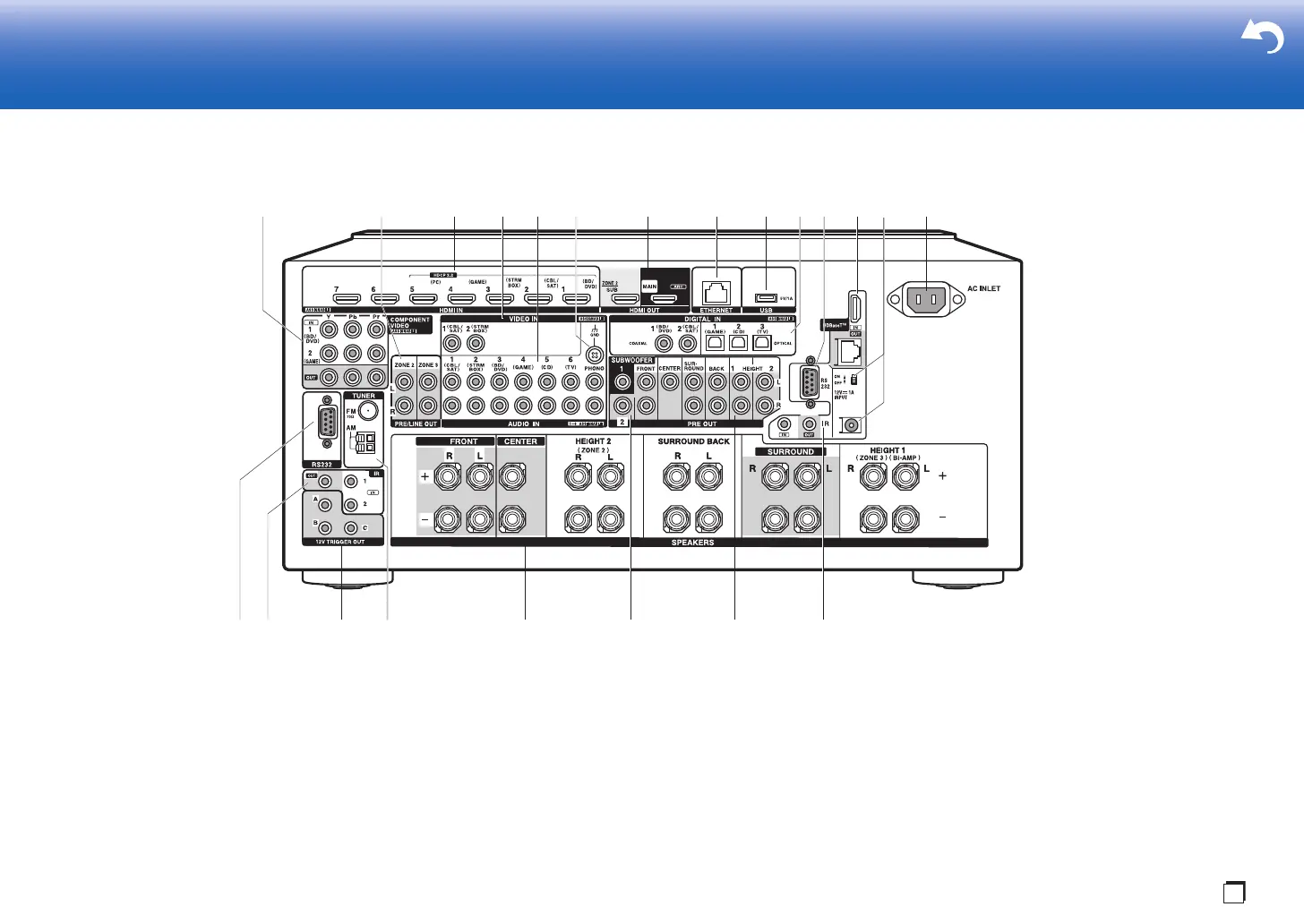

Rear Panel
1.
COMPONENT VIDEO IN/OUT jacks: Transfer the video signals of an AV component with a
component video cable.
(Compatible only with 480i or 576i resolution.)
2. ZONE 2/ZONE 3 PRE/LINE OUT jacks: Output audio signals with an analog audio cable
to a pre-main amplifier or power amplifier in a separate room (ZONE 2/ZONE 3).
3. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable connected to
an AV component.
4. VIDEO IN jacks: Input the AV component video signals with an analog video cable.
5. AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.
6. GND terminal: The ground wire of the turntable is connected.
7. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable connected
to a monitor such as a TV or projector.
8. ETHERNET port: Connect to the network with an Ethernet cable.
9. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (maximum
5 V/1 A) to USB devices with a USB cable.
10.
DIGITAL IN OPTICAL/COAXIAL jacks: Input the digital audio signals from TV or AV
components with a digital optical cable or digital coaxial cable.
11.
RS232 port: Used for connection with the HDBaseT Receiver. Refer to the Instruction
Manual included with the HDBaseT Receiver for usage instructions.
12.
HDBaseT
™
IN/OUT jack: Input signals are output via the Ethernet cable. As they are
covered with a seal when shipped, remove it when you use the ports. Do not use the ports
to connect the ETHERNET port of network device.
> Before Start > Part Names >Install >Initial Setup >Playback > Advanced Manual
Troubleshooting | Supplementary Information, etc.
(*)You can find details in the Advanced Manual.
