29
> Before start > Hookup > Setup > Playback >Part Names

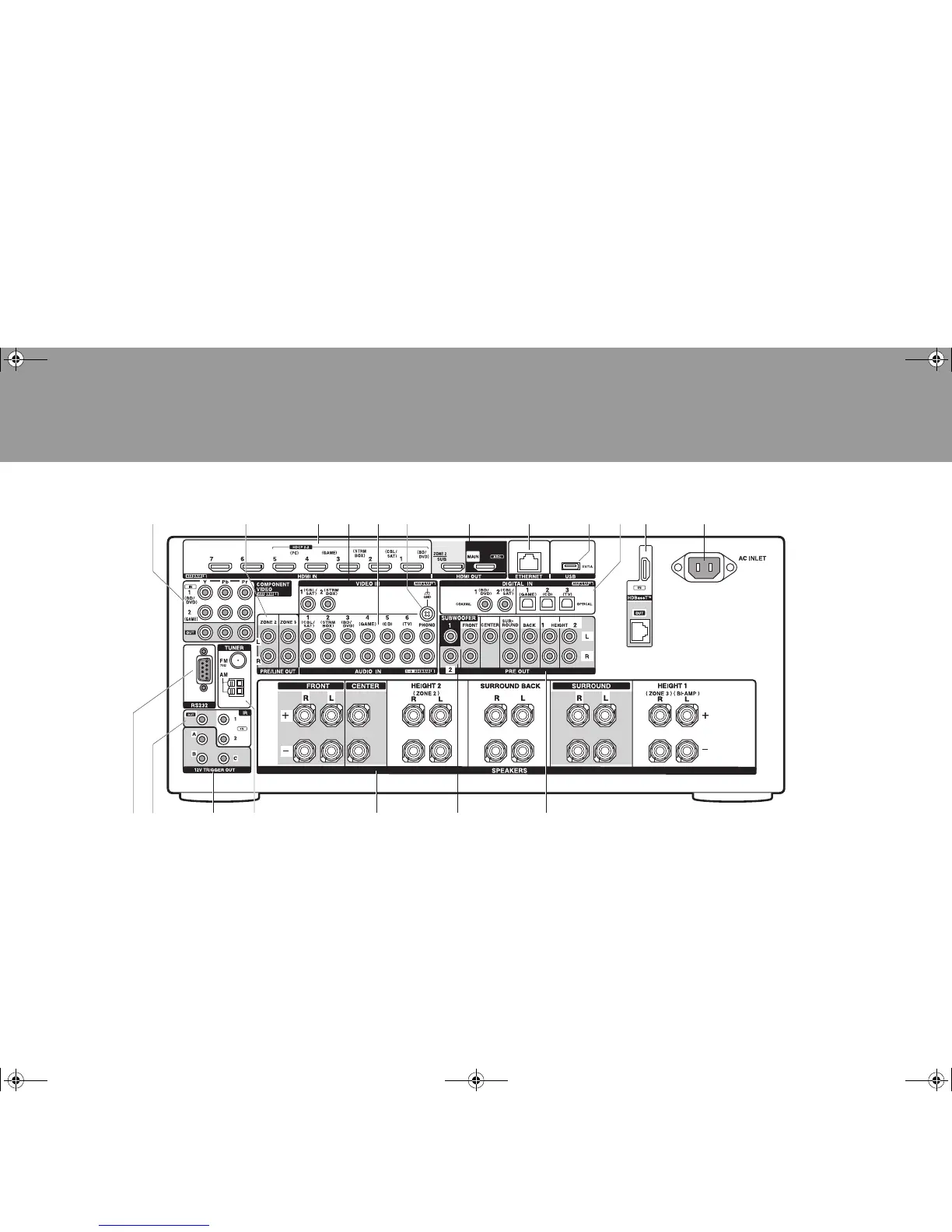

Rear Panel
1. COMPONENT VIDEO IN/OUT jacks: Transfer the video
signals of an AV component with a component video cable.
2. ZONE 2/ZONE 3 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable to a pre-main
amplifier or a power amplifier in a separate room (ZONE
2/ZONE 3). (P18, 19)
3. HDMI IN jacks: Transmit video signals and audio signals
with a HDMI cable connected to an AV component.
4. VIDEO IN jacks: Input the video signals from AV
components with an analog video cable.
5. AUDIO IN jacks: Input TV or AV component audio
signals with an analog audio cable.
6. GND terminal: The ground wire of the turntable is connected.
7. HDMI OUT jacks: Transmit video signals and audio
signals with a HDMI cable connected to a monitor such
as a TV or projector.
8. ETHERNET port: Connect to the network with an
Ethernet cable.
9. USB port: A USB storage device is connected so that music
files stored in it can be played. You can also supply power
(maximum 5V/1A) to USB devices with a USB cable.
10.
DIGITAL IN OPTICAL/COAXIAL jacks: Input the digital
audio signals from TV or AV components with a digital
optical cable or digital coaxial cable.
11.
HDBaseT
™
IN/OUT jack: HDMI input signals are output via
the Ethernet cable. As they are covered with a seal when
shipped, remove it when you use the ports. Do not use the
ports to connect the ETHERNET port of network device.
12.
AC INLET: The supplied power cord is connected.
13.
RS232 port: For connection to the home control system.
14.
IR IN/OUT port: Allows you to connect a multiroom
remote control kit.
15.
12V TRIGGER OUT A/B/C jacks: Allows you to connect
a device with 12V trigger input jack to enable link
operation between the device and the unit.
16.
TUNER AM/FM 75Ω terminal: The supplied antennas
are connected.
17.
SPEAKERS terminals: Connect speakers with speaker cables.
(North American models are compatible with banana plugs.)
18.
SUBWOOFER PRE OUT jacks: Connect a powered
subwoofer with a subwoofer cable. Up to two powered
subwoofers can be connected. You can set the volume
levels of the 2 powered subwoofers to different levels.
19.
PRE OUT jacks: Connect a power amplifier.
To Next Page
