Surround (L)

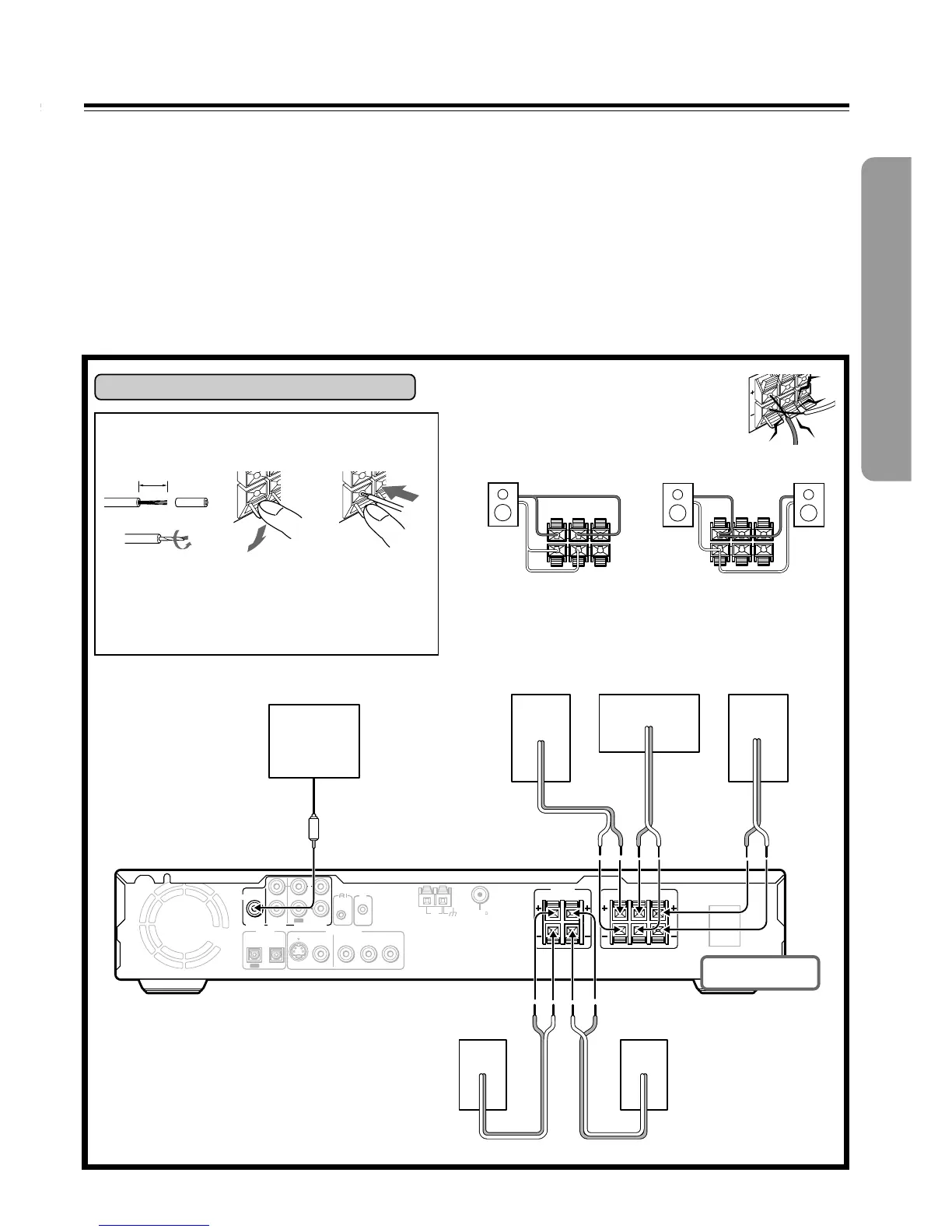

Connecting to SPEAKERS
How to connect to the speaker connectors
Press and hold
the lever.
Insert the stripped
end of the cord.
By releasing the
lever, the lever is
replaced.
Strip 10 mm from
the end of each
cable, then twist
the exposed
wires tightly.
Front (R) Front (L)Center
Surround (R)
Connecting Speakers
Before connecting
• Refer also to the instruction manuals of the speakers.
• This DVD Receiver is designed to reproduce optimum sound
quality when speakers with the impedances specified below are
connected. Please check the following information and choose
speakers with appropriate impedances for the connections.
Front speakers: 6 ohms min. per speaker
Center speaker: 6 ohms min.
Surround Speakers : 6 ohms min. per speaker
• To prevent damage to circuits, never short-
circuit the positive (+) and negative (–)
speaker wires.
• Do not connect the speaker cable to the L
and R connectors at the same time and do
not connect more than one speaker to the
same speaker connectors.
NO!
NO!
+
–
+
–
LR
+
–
+
–
LR
DO NOT connect the
power cord at this time.
Active
subwoofer
NO!
To Next Page
