3. Connect the Audio Component

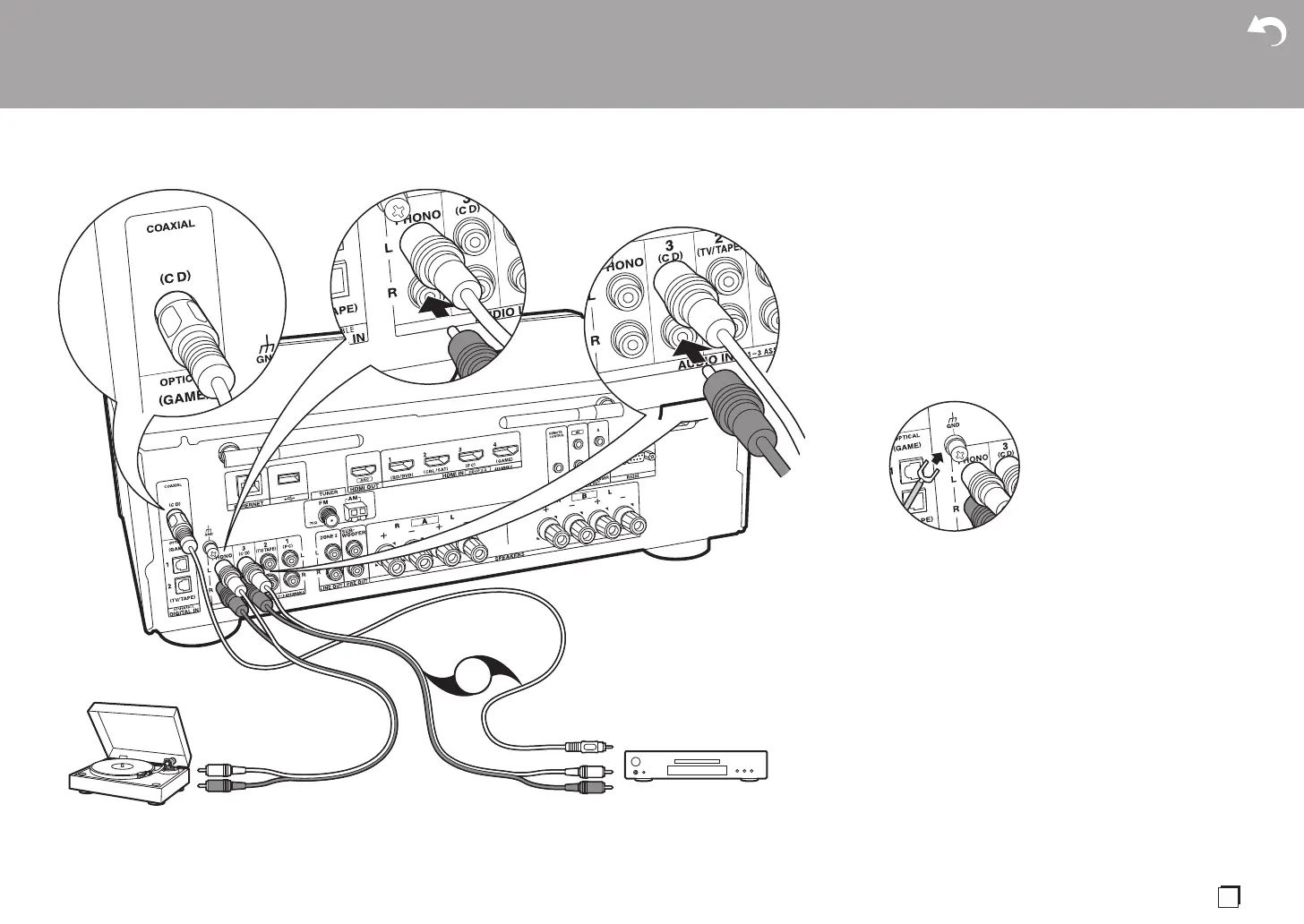

Example of a connection with an audio component.
Connect a CD player using a digital coaxial cable or analog
audio cable. You can connect a turntable that has an MM-
type cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it to
an AUDIO IN jack other than the PHONO jack. Also, if
the turntable uses an MC type cartridge, install an audio
equalizer compatible with the MC type cartridge between
the unit and the turntable, then connect to any AUDIO IN
jack other than the PHONO jack.
If the turntable has a ground wire,
connect it to the GND terminal.
0 By connecting an Onkyo component with RI jack to the
unit by using an RI cable and an analog audio cable, you
can link the unit’s power and input selection and enable
operation with this unit’s remote controller. For details,
refer to the instruction manual of the component with the
RI jack.
0 Part of the function may not operate even if it is
connected via RI depending on the equipment.
0 The RI dock function does not work if ZONE 2 is on.
0 When connecting an RI dock, you must rename the
input selectors on the unit to make the system link
work. Select the GAME input selector to display
"GAME" on the main unit display. Then press and hold
Return on the main unit for 3 seconds to switch the
display to "DOCK".
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
OR
CD
a
b
a Digital coaxial cable, b Analog audio cable
To Next Page
