Integra DTR-10.5 Brochure & Specs

AMPLIFICA
TION
• THX Ultra2 Certified 7 channel amplifier
• 7 x 200 Watts/Channel at 6Ω
• 7 x 150 Watts/Channel at 8Ω
• WRAT — Wide Range Amplifier Technology (5 Hz – 100 kHz)
• Linear Optimum Gain Volume Circuitry
PROCESSING
• THX Surround EX 7.1 Processing
• Dolby Digital EX and Pro Logic IIx
• DTS and DTS-ES, DTS Neo:6, DTS 96/24
• Dolby Headphone and Dolby Virtual Speaker
• Dual 32-Bit DSP chips for main and Zone 2
• Non-scaling configuration
• Wolfson 192 kHz/24-bit D/A converters for all channels
• 39 Exclusive DSP soundfields with Direct/Pure bypass modes
• VLSC — Vector Linear Shaping Circuitry
• A-Form listening mode memory and IntelliVolume input level calibration system
VIDEO
• Conversion of composite and s-video to component and HDMI with time-base correction**
• New 5-line digital comb filter for composite to s-video conversion
• 50 MHz bandwidth, professional grade component video switching (4 in, 2 out)
• 7 Composite / S-Video inputs and 4 outputs
CONNECTIONS
• High Definition Multimedia Interface (2 in, 1 out)**
• 2 i.Link inputs for all audio for
mats**
• Ethernet for Net-Tune streaming audio**
• Thr
ee zone multi-r
oom capability (Main, Zone 2 and Zone 3)
• Independent IR inputs for all 3 zones w/12VDC for IR r
eceivers
• Bi-directional RS-232 port
• Five assignable 12VDC trigger outputs
• Programmable speaker A/B for all 7.1 channels
• Bridging capable for FL/FR using SBL/SBR
• 13 Digital inputs (7 optical, 6 coaxial, 12 assignable)
• 4 Assignable digital outputs (2 optical, 2 coaxial)
• Two sets of color-coded 7.1 multi-channel inputs, or one multi-channel input
and one AES/EBU input**
• 7.1 Channel color
-coded pre-outputs
• Har
dware & software upgradable for future additions
MISCELLANEOUS
• Direct access tuning via IR & RS-232
• Variable subwoofer crossover (40 - 150 Hz, 10 Hz steps)
• PC set-up application available via Ether
net and RS-232
*Base model configuration
**Reflects optional cards
DTR-10.5
18 Park W
ay, Upper Saddle River, NJ 07458 • Telephone: 201.818.9200 • Fax: 201.785.2650 • www.intergrahometheater.com
AMPLIFIER
Continuous average power output (FTC)
All channels: 150 W per channel min. RMS at 8 ohms,
2 channels driven from 20 Hz to 20
kHz with no more than 0.08% total
harmonic distortion.
200 W min. RMS at 6 ohms, 2 channels
driven from 1 kHz with no more
than 0.08% total harmonic distortion.
Dynamic power output (stereo): 2 x 340 W at 3 ohms
2 x 260 W at 4 ohms
2 x 175 W at 8 ohms
Frequency response: 5 Hz to 100 kHz: +1/–3 dB
Signal-to-noise ratio: 110 dB (IHF A, 0.5 V input)
Total harmonic distortion: 0.08% at rated power
IM distortion: 0.08% at rated power
Damping factor: 60 at 8 ohms
Muting: Set by user
INPUT SENSITIVITY AND IMPEDANCE
Line (CD, Tape, etc.): 200 mV, 50 k ohms
Multi-Channel inputs (Front L/C/R, Surround L/R,
Surround Back L/R)**: 200 mV, 50 k ohms
(Subwoofer)**: 36 mV, 50 k ohms
OUTPUT LEVEL AND IMPEDANCE
Rec out (Tape, Video 1, 2): 200 mV, 470 ohms
Pre out: 1 V, 470 ohms
Zone 2/3 line output:
100 mV
, 470 ohms
TONE CONTROL
Bass:
±
12 dB at 50 Hz
Mid range: ±12 dB at 1,000 Hz
Treble: ±12 dB at 20,000 Hz
FM
T
uning range:
87.5–108.0 MHz (100-kHz steps)
Usable sensitivity
, ster
eo:
17.2 dBf, 2.0
µV (75 ohms IHF)
AM
T
uning range:
530–1,710 kHz (10-kHz steps)
Usable sensitivity: 30 µV
PHONO
Input sensitivity: 2.5 mV, 50 k ohms
Overload:
70 mV RMS at 1 kHz, 0.5% THD
RIAA Deviation:
20 Hz to 20 kHz:
±
0.8 dB
Signal-to-noise ratio: 80 dB (IHF A, 0.5 V input)
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption:
13.0 A*
Dimensions (W x H x D):
17-1/8" x 8-11/16" x 18-15/16"
435 x 175 x 429 mm
Weight: 70.8 lbs. (32.1 kg)*
FEATURES
SPECIFICATIONS

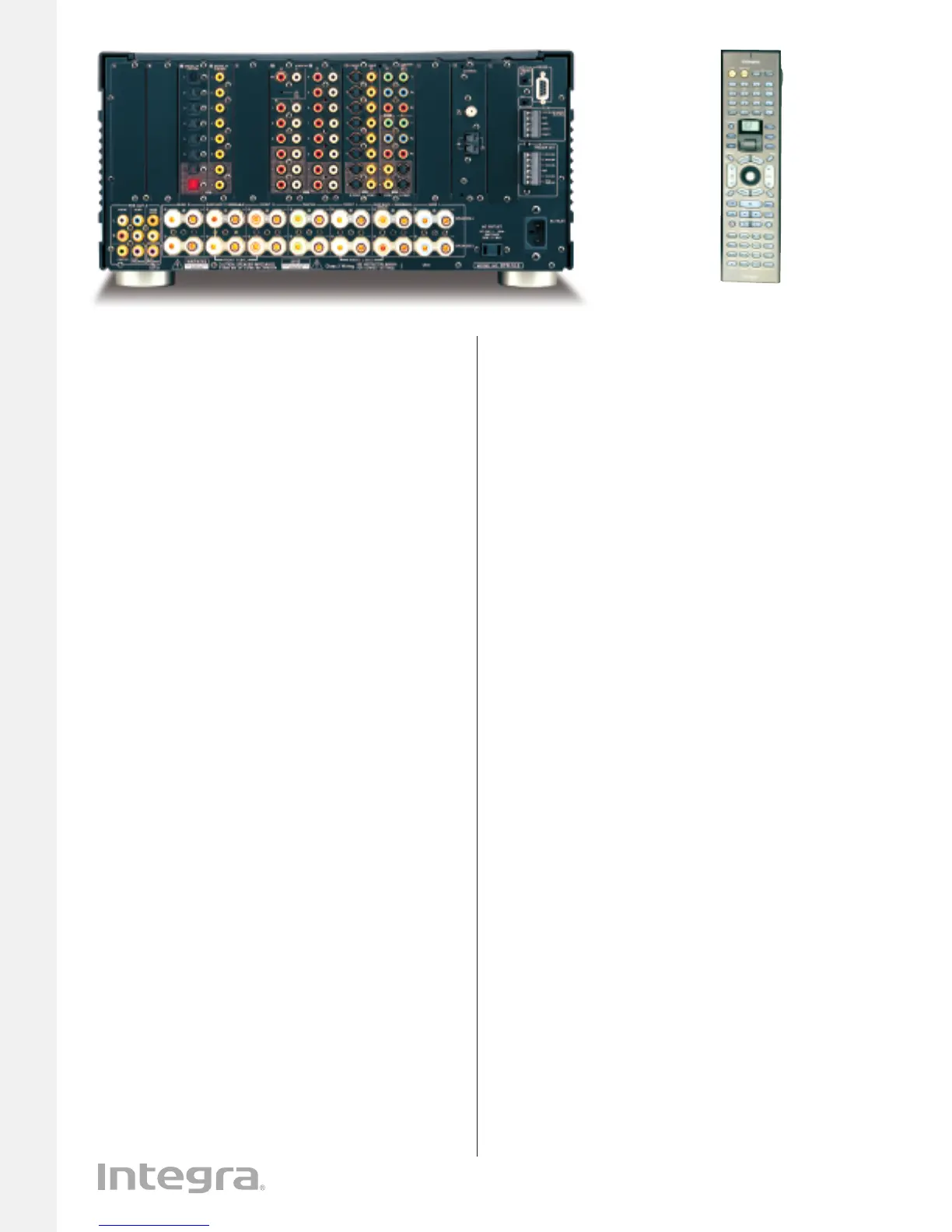

DTR-10.5
(base model shown)

Integra DTR-10.5 Specifications

Amplifier Specifications

amplifier power output at 6 ohms	200 W per channel
amplifier power output at 8 ohms	150 W per channel
dynamic power output at 3 ohms	2 x 340 W
dynamic power output at 4 ohms	2 x 260 W
dynamic power output at 8 ohms	2 x 175 W
frequency response	5 Hz to 100 kHz
signal-to-noise ratio	110 dB
total harmonic distortion	0.08%
damping factor	60 at 8 ohms

Input and Output Specifications

line input sensitivity and impedance	200 mV, 50 k ohms
multi-channel input sensitivity and impedance	200 mV, 50 k ohms
subwoofer input sensitivity and impedance	36 mV, 50 k ohms
rec out level and impedance	200 mV, 470 ohms
pre out level and impedance	1 V, 470 ohms
zone 2/3 line output level and impedance	100 mV, 470 ohms

Radio Specifications

AM tuning range	530–1, 710 kHz
AM usable sensitivity	30 µV
FM tuning range	87.5–108.0 MHz
FM usable sensitivity, stereo	17.2 dBf, 2.0 µV (75 ohms IHF)

Phono and Tone Control

phono input sensitivity	2.5 mV, 50 k ohms
phono overload	70 mV RMS at 1 kHz, 0.5% THD
RIAA deviation	20 Hz to 20 kHz: ±0.8 dB
phono signal-to-noise ratio	80 dB
bass control	±12 dB at 50 Hz
mid range control	±12 dB at 1, 000 Hz
treble control	±12 dB at 20, 000 Hz

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	13.0 A
dimensions	435 x 175 x 429 mm
weight	32.1 kg
