Front & Rear Panels
For detailed information, see the pages in
parentheses.
a 8On/Standby button (20)
b Bluetooth indicator (30, 67)
c Wi-Fi indicator (26)
d Tone and Tone Level buttons (48)
e Remote control sensor (10)
f Display (8)
g Listening Mode buttons (40)
h Dimmer button (North American models) (45)
i Memory button (37)
j Tuning Mode button (37)
k Display button (44)
l Home button (46)
m Tuning q/w (37), Preset e/r (37), cursor and
Enter buttons
n Return button
o Master Volume control (28)
p Zone 2, Off buttons (69)
q Zone 2 Level q/w buttons (69)
r Phones jack (19)
s Hybrid Standby indicator (21)
t Input selector buttons (28)
u USB port (31)
v AUX Input Audio/Video jacks
w Setup Mic jack (24)
x RT/PTY/TP button (Australian models) (38)

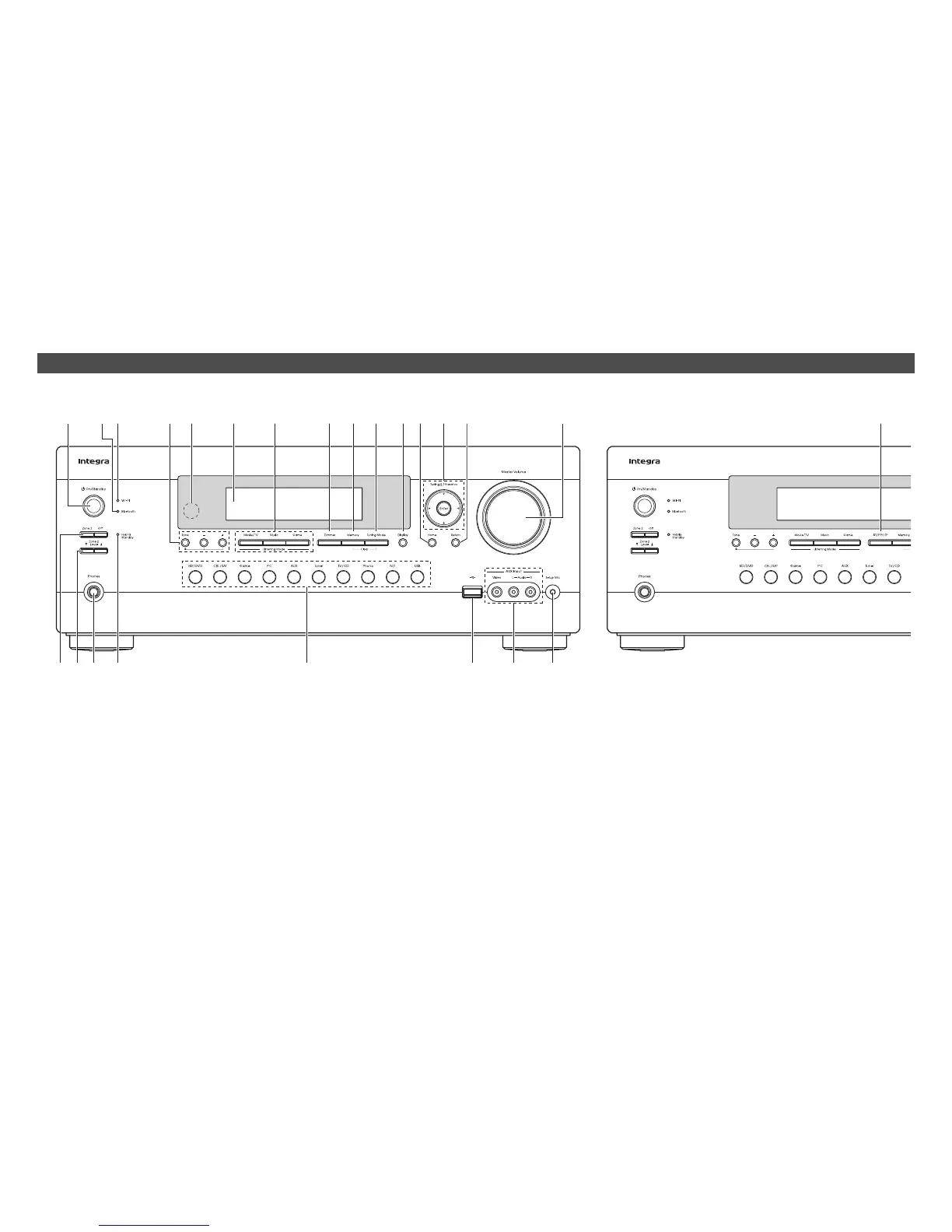

Front Panel
(North American models) (Australian models)
a ed gf hij kl nm obc
t
v
r
q sp
wu
x
