Safety Information and Introduction
En-9
See “Connecting Your Speakers” for connection
(➔ pages 11 to 19).
a uREMOTE CONTROL jack
b COMPONENT VIDEO IN and OUT jacks
c ETHERNET port
d Wireless antenna
When the AV receiver is connected to the network
by wireless, adjust the position of the antenna
(➔ pages 26, 30).

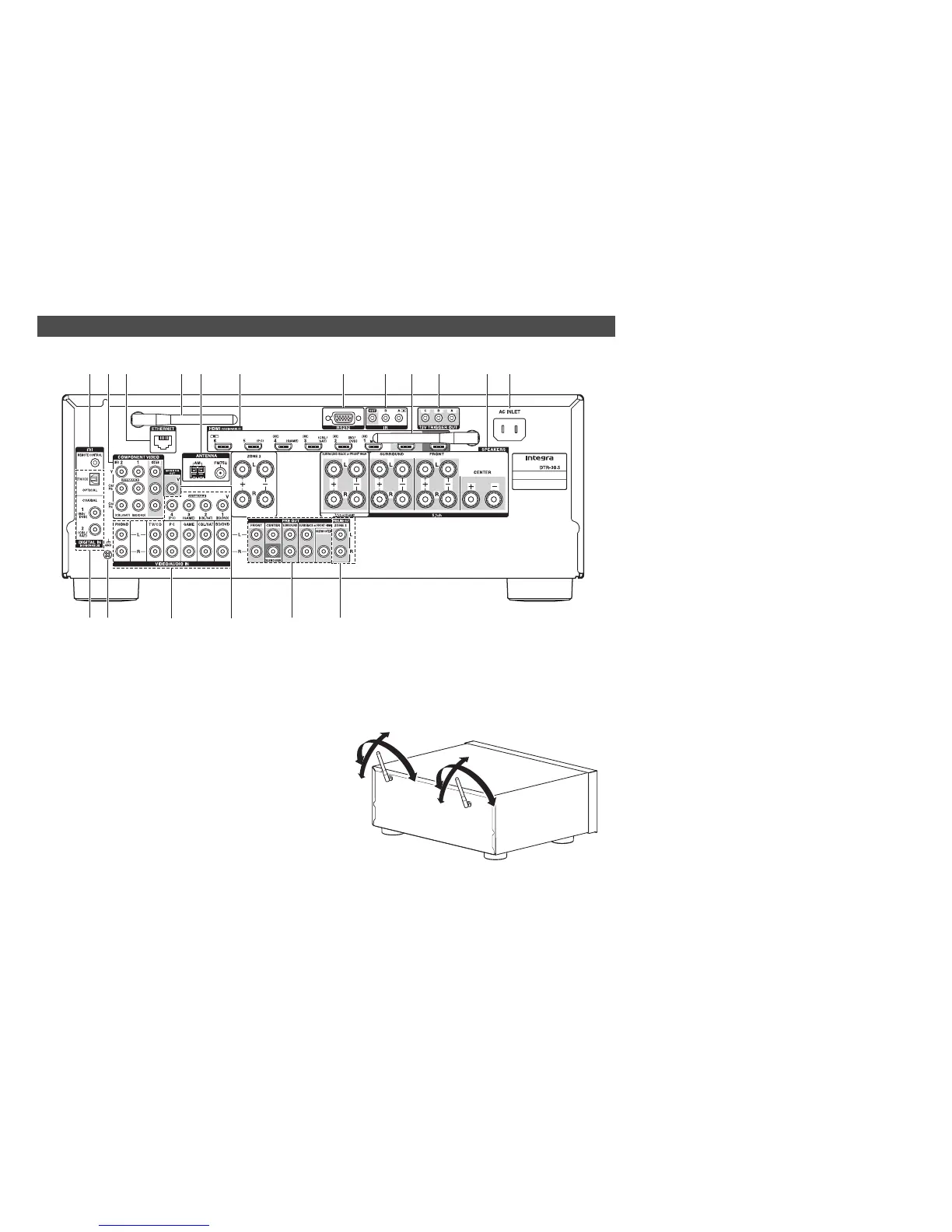

Rear Panel
a ed dcb f g h i
k
j
l
m
n
o qp
90°
90°
180°
180°
e FM ANTENNA jack and AM ANTENNA terminal
f HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
g RS232 port
Terminal for control.
h IR IN A/B and OUT jacks
i 12V TRIGGER OUT A/B/C jacks
j SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)
k AC INLET
l DIGITAL IN COAXIAL and OPTICAL jacks
m GND screw
n Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, GAME IN, PC IN,
TV/CD IN, PHONO IN)
o MONITOR OUT V jack
p PRE OUT jacks
(CENTER, FRONT, SURROUND, SURR BACK
or FRONT HIGH, SUBWOOFER)
q ZONE 2 PRE/LINE OUT jacks
