Integra DTR-4.6 User Manual

31

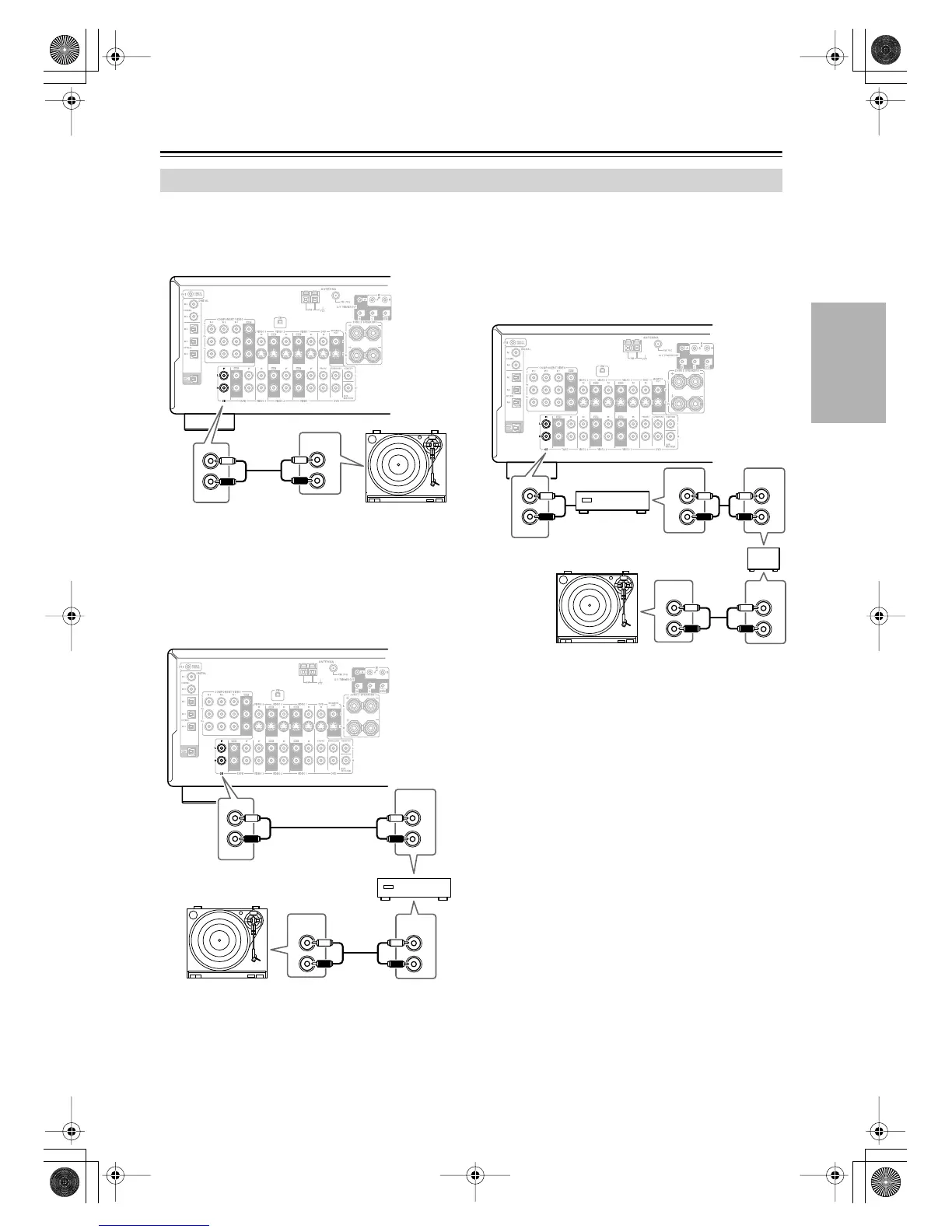

Connecting Your Components —Continued
■ Turntable with a Built-in Phono Preamp
Use an analog audio cable to connect an unused audio
input on the AV receiver to the audio outputs on your
turntable, as shown.
■ Turntable without a Built-in Phono Preamp
Use an analog audio cable to connect an unused audio
input on the AV receiver to the audio outputs on your
phono preamp, and use another analog audio cable to
connect the phono preamp’s inputs to your turntable, as
shown.
■ Turntable with an MC (Moving Coil) Cartridge
Use an analog audio cable to connect an unused audio
input on the AV receiver to the audio outputs on your
phono preamp. Use another analog audio cable to con-
nect the phono preamp’s inputs to your MC head amp’s
outputs. And use another analog audio cable to connect
the MC head amp’s inputs to your turntable, as shown.
Connecting a Turntable
IN
L
R
CD
AUDIO
OUTPUT
L
R
L
R
L
R
IN
CD
AUDIO
OUTPUT
AUDIO
OUTPUT
AUDIO
INPUT
Phono preamp
L
R
L
R
L
R
L
R
IN
CD
AUDIO
OUTPUT
AUDIO
OUTPUT
AUDIO
INPUT
AUDIO
INPUT
Phono preamp
MC head amp or
MC transformer
DTR-4.6.book Page 31 Thursday, September 22, 2005 1:45 PM
