Integra DTR-5.3 - Page 26

26
Connections (DTR-5.3)
4. Connecting a video cassette recorder (VIDEO 1)
Using RCA video cables, connect the video output jack (composite)
of the video cassette recorder to the VIDEO 1 VIDEO IN jack of the
DTR-5.3 and connect the video input jack of the video cassette
recorder to the VIDEO 1 VIDEO OUT jack of the DTR-5.3. Or if the
video cassette recorder has S video input and output jacks, using S
video cables, connect the S video output jack of the video cassette
recorder to the VIDEO 1 S VIDEO IN jack of the DTR-5.3 and
connect the video input jack of the video cassette redorder to the
VIDEO 1 S VIDEO OUT jack of the DTR-5.3. Or if the video
cassette recorder has component video outputs, connect them to the
COMPONENT VIDEO INPUT 1 or 2 jacks on the DTR-5.3.
With the initial settings of the DTR-5.3, the VIDEO 1 input
source is set for the COMPONENT VIDEO INPUT 2 jacks.
If you connect the video cassette recorder to the COMPONENT
VIDEO INPUT 1 jacks, this must be changed at “Input Setup” →
“Component Video” (see page 53).
Using RCA audio cables, connect the audio output jacks of the video
cassette recorder to the VIDEO 1 IN audio jacks of the DTR-5.3 and
connect the audio input jacks of the video cassette recorder to the
VIDEO 1 OUT audio jacks of the DTR-5.3. Make sure that you
properly connect the left channels to the L jacks and the right
channels to the R jacks.
With the initial settings of the DTR-5.3, nothing is allocated as
the digital input source for VIDEO 1 (----).
If you connect the digital audio output, be sure to make the appropriate
changes at “Input Setup” → “Digital Input” (see page 53).
5. Connecting a satellite tuner, television, or settop box
(VIDEO 2 or 3)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 2 (or 3) VIDEO IN jack of
the DTR-5.3. Or if the device has an S video output jack, connect it
to the VIDEO 2 (or 3) S VIDEO IN jack of the DTR-5.3 using an S
video cable. Or if the device has component video outputs, connect
them to the COMPONENT VIDEO INPUT 1 or 2 jacks on the DTR-
5.3.
With the initial settings of the DTR-5.3, the VIDEO 2 and 3 input
sources are set for the COMPONENT VIDEO INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at “Input Setup” → “Component Video”
(see page 53).
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 2 (or 3) IN audio jacks of the DTR-5.3. Make
sure that you properly connect the left channel to the L jack and the
right channel to the R jack.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of
the DTR-5.3 depending on the type of connector on the device.
With the initial settings of the DTR-5.3, the VIDEO 3 input
source is set for digital input at the OPTICAL 2 jack (OPT 2).
If the digital connection is made at a different jack, this must be
changed at Input Setup → Digital Input (see page 53).
With the initial settings of the DTR-5.3, nothing is allocated as
the digital input source for VIDEO 2 (----).
If you connect the digital audio output, be sure to make the appropriate
changes at “Input Setup” → “Digital Input” (see page 53).

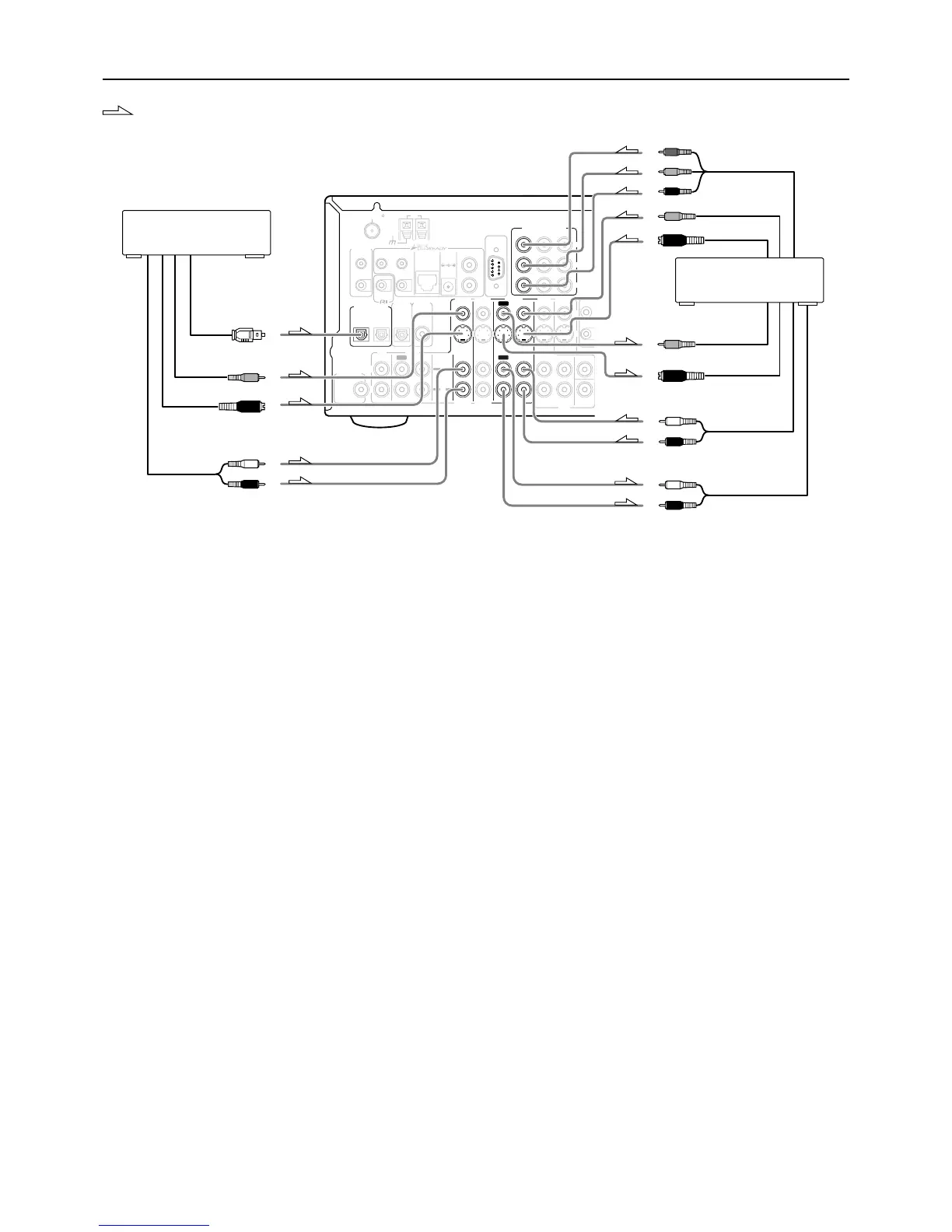

: Signal flow
IR OUT
56K
40K
L
REMOTE
CONTROL
ANTENNA
FM
75
COAXIAL
OPTICAL
1
2
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
OUT
DVD
MONITOR
OUT
DVD
TAPE
CD
SUBWOOFER
PRE OUT
L
R
R
VIDEO 3
VIDEO 2
VIDEO 3
VIDEO 1
OPTICAL
ININ
DIGITAL
OUTPUT
IN
INPUT 1
INPUT 2
OUTPUT
COMPONENT VIDEO
P R
P B
Y
OUT
OUT
DIGITAL
INPUT
L
R
AM
ZONE 2
OUT
DC IN
24V 1A
IR
OU
T
I
N
V
S
12 V
TRIGGER
OUT
LINE IN
RS232
L
R
IN
IN
A
B
A
B
V
S
DIGITAL INPUT
5. Satellite tuner or television
(VIDEO 2/3)
4. VCR (VIDEO 1)
Component video output
PR
PB
Y
Video output
S video output
Video input
S video input
Video output
S Video output
Analog audio input
Analog audio output
L (white)
R (red)
L (white)
R (red)
L (white)
R (red)
Analog audio output
Digital audio output
(optical)
