36

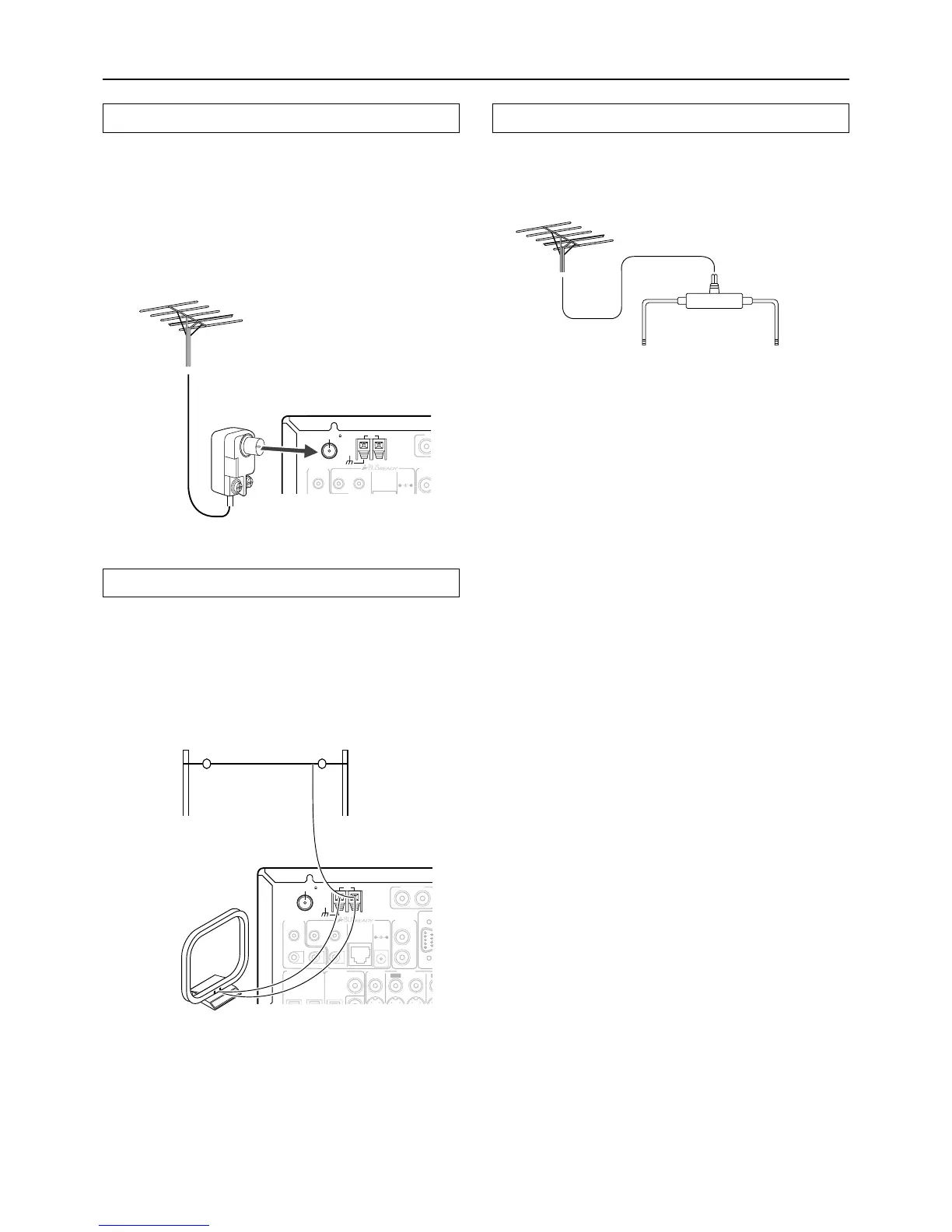

Connecting antennas
Outdoor antenna
(Indoor)
AM loop antenna
To TV (or VCR)To receiver
Connecting an FM outdoor antenna
Make sure to follow the general rules given below:
Keep the antenna away from noise sources (neon signs, busy
roads, etc.).
It is dangerous to put the antenna close to power lines. Keep it
well away from power lines, transformers, etc.
To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 14 of the Important Safeguards on
page 2 when you install the outdoor antenna.
Connecting an AM outdoor antenna
If reception is poor with the indoor AM antenna, stretch out the
outdoor antenna (16 feet (5 meters) or more) above a window or
outside.
Keep the indoor AM loop antenna connected. Do not remove it.
To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 14 of the Important Safeguards on
page 2 when you install the outdoor antenna.
R
P
H
ANTENNA
FM
75
AM
IR OUT
56K
A
40K
ZONE 2
OUT
DC IN
24V 1A
12 V
TRIGGER
OUT
ZON
E
LINE
O
A
COAXIAL
OPTICAL
1
2
DIGITAL INPUT
VIDEO 2
VIDEO 3
OPTICAL
IN
OUT
IN
DIGITAL
OUTPUT
L
R
PHONO IN
O
ANTENNA
FM
75
AM
IR OUT
56K
A
40K
B
ZONE 2
OUT
DC IN
24V 1A
12 V
TRIGGER
OUT
RS2
3
L
R
ZONE 2
LINE OUT
A
B
ZONE 2
Directional linkage
Do not use the same antenna for both FM and TV (or VCR)
reception since the FM and TV (or VCR) signals can interfere with
each other. If you must use a common FM/TV (or VCR) antenna, use
a directional linkage type splitter.
