Intel Desktop Board D101GGC Technical Product Specification
46
2.9 Mechanical Considerations
2.9.1 Form Factor
The board is designed to fit into either a microATX or an ATX-form-factor chassis. Figure 11
illustrates the mechanical form factor of the board. Dimensions are given in inches [millimeters].
The outer dimensions are 9.60 inches by 8.60 inches [243.84 millimeters by 218.44 millimeters].
Location of the I/O connectors and mounting holes are in compliance with the ATX specification.
OM19012
6.10
[154.94]
2.10
[53.34]
3.15
[80.01]
6.45
[163.83]
6.50
[165.10]
5.20
[132.08]
1.00
[45.72]
0.00
0.00

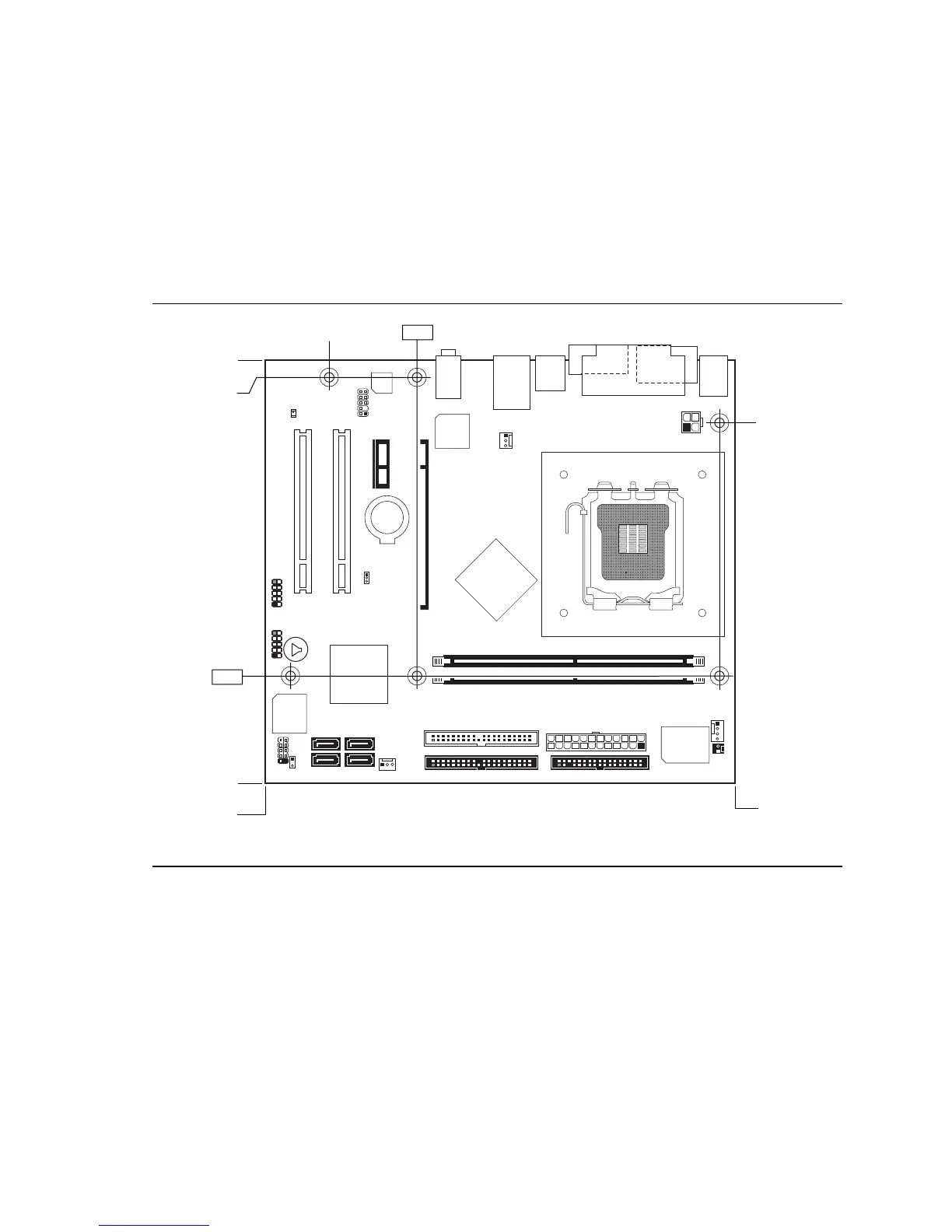

Figure 11. Board Dimensions
