CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do
so may result in damage to the voltage regulator circuit. The processor voltage regulator area
(item A in Figure 14) can reach a temperature of up to 85
o
C in an open chassis.

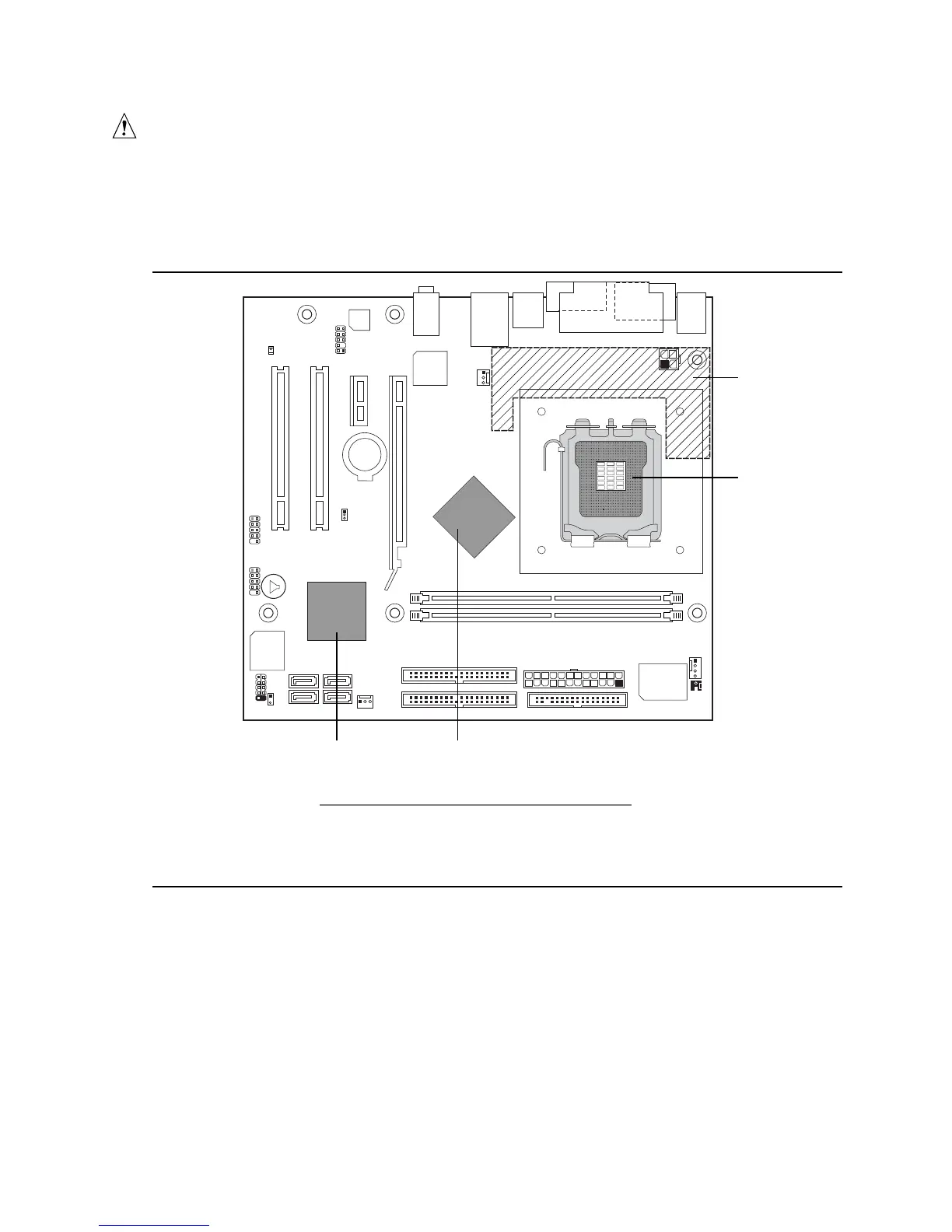

Figure 14 shows the locations of the localized high temperature zones.
OM19013
B
A
D C
Item Description
A Processor voltage regulator area
B Processor
C ATI Radeon Xpress 200 Northbridge
D IXP 450 Southbridge
Figure 14. Localized High Temperature Zones
