Intel® Desktop Board
DQ67SW, DQ67EP,
DQ67OW
Intel® vPro
™
Technolog
y Setup and Co
nfiguration G
uide
12
Once the administrator pas
swo
rd is set, the user is pres
ented the Intel ME
main m
enu, shown in
Figure 7.

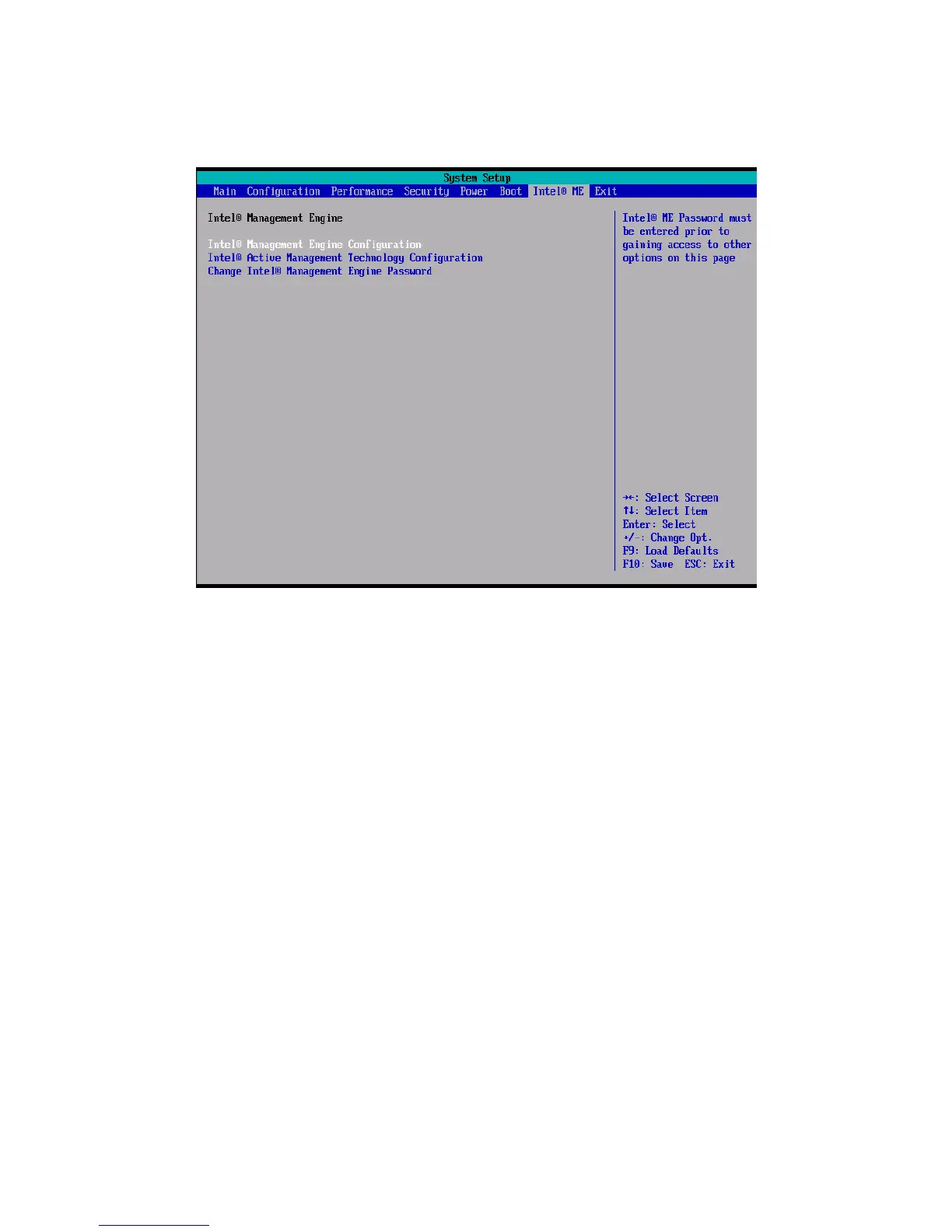

Figure 7
.
Intel ME - Main M
enu
11
13
Table of Contents
Main Page
Default Chapter
2
Revision History
2
Table of Contents
3
Contents
3
Figures
3
Tables
4
Preface
5
Feature Summary
6
Table 1. Feature Summary
6
1 Intel® Vpro™ Technology Setup and Configuration
7
BIOS Setup
7
Overview
7
Entering BIOS Setup
7
Figure 1. Intel® Desktop Boards POST Screen
7
Table 2. Location of Intel Vpro Technology Features in BIOS Setup
7
BIOS Setup - Configuration Menu
8
Figure 2. BIOS Setup - Main Menu
8
Figure 3. BIOS Setup - Configuration Menu
9
Figure 4. BIOS Setup - Configuration
9
BIOS Setup - Security Menu
10
Figure 5. BIOS Setup - Security Menu
10
BIOS Setup - Intel® ME Menu
11
Figure 6. BIOS Setup - Intel® ME Menu
11
Figure 7. Intel ME - Main Menu
12
Figure 8. Intel ME - Intel ME Configuration
13
Figure 9. Intel ME - Intel AMT Configuration
14
Figure 10. Remote Setup and Configuration - Main Screen
15
Figure 11. Intel AMT TLS with PKI Provisioning Options
16
Figure 12. Intel AMT Permanent Certificate Manager
16
Figure 13. Intel AMT TLS with PSK Provisioning Identifier (PID)
17
Figure 14. Intel AMT TLS with PSK Provisioning Passphrase (PPS)
17
Figure 15. Intel AMT - Local Configuration
18
Figure 16. Intel AMT - Local Configuration, IPV4 Configuration Options
19
Figure 17. Intel AMT - Local Configuration, IPV6 Configuration Options
19
Figure 18. Intel AMT - SOL/IDE-R Configuration
20
Figure 19. Intel AMT KVM Remote Control Configuration
21
Intel® AMT - Quick Configuration: Local
22
Figure 20. Intel AMT - Configuring Computer Name
22
Figure 21. MEINFO Output - Intel AMT Defaults
23
Figure 22. MEINFO Output - Local Configuration
23
Intel AMT - Remote Configuration, TLS-PSK
24
Figure 23. Intel AMT - TLS with PSK One Touch Configuration
24
Intel AMT - Remote Configuration, TLS-PKI
25
Intel AMT Configuration - Host Based Configuration
25
Fast Call for Help (FCFH)
25
Figure 24. FCFH Header Locations
25
Figure 25. Fast Call for Help Alert Screen
26
KVM Remote Control
27
Figure 26. VNC Viewer+ Console Remote Login
27
Figure 27. Intel AMT Client Screen Showing KVM Remote Control Access Code
27
Figure 28. VNC Viewer+ Management Console Access Code Screen
28
Figure 29. VNC Viewer+ Management Console View
28
Intel® Identity Protection Technology (Intel® IPT)
29
Figure 30. Symantec VIP Access Security Credential
29
Figure 31. VASCO DIGIPASS for Web Security Credential
29
BIOS Maintenance Mode
30
Figure 32. BIOS Maintenance Intel AMT Reset to Defaults
30
Figure 33. Intel AMT Reset in Progress
31
Figure 34. Intel AMT Reset Complete
31
Figure 35. BIOS_CFG and MEBX_RST Header Locations
32
