Intel® Desktop Board DQ67SW, DQ67EP, DQ67OW
Intel® vPro™ Technology Setup and Configuration Guide
32
One other way to reset Intel AMT back to defaults is to use the MEBX_RST header. First, the user must
remove all power from the board. A jumper is then placed for 5 seconds shorting pins 1 and 2 of the
MEBX_RST header. It is imperative that the jumper is removed before power is reapplied to the board. Failure
to do so may cause damage to the board and/or its firmware.
Caution: Do not apply board power with a jumper in place on pins 1 and 2 on the MEBX_RST header.
Doing so may cause damage to the board and/or its firmware.

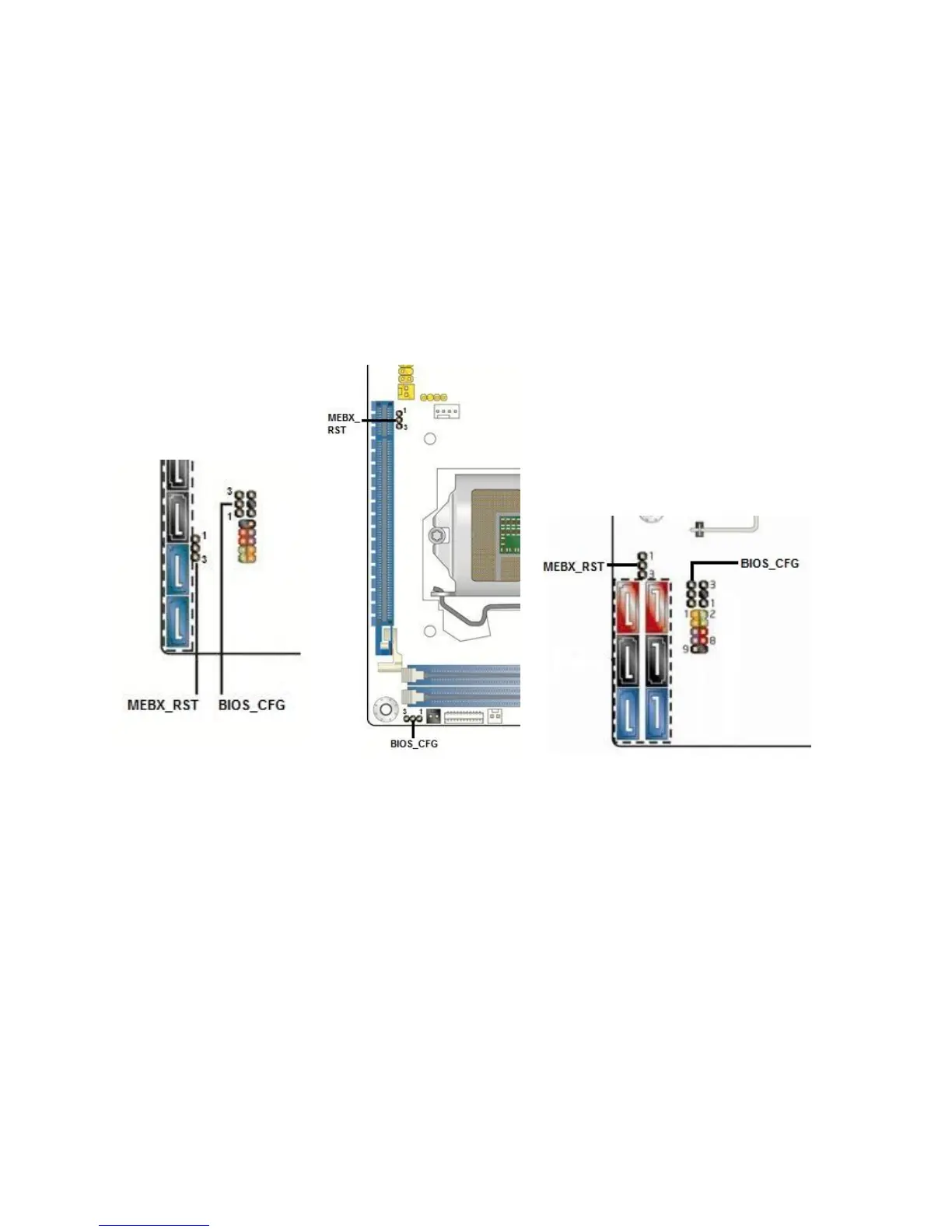

The BIOS_CFG and MEBX_RST headers are shown in Figure 35.
DQ67SW DQ67EP DQ67OW
Figure 35. BIOS_CFG and MEBX_RST Header Locations
