Intel Desktop Board D915GLVG Technical Product Specification
14
1.1.3 Block Diagram

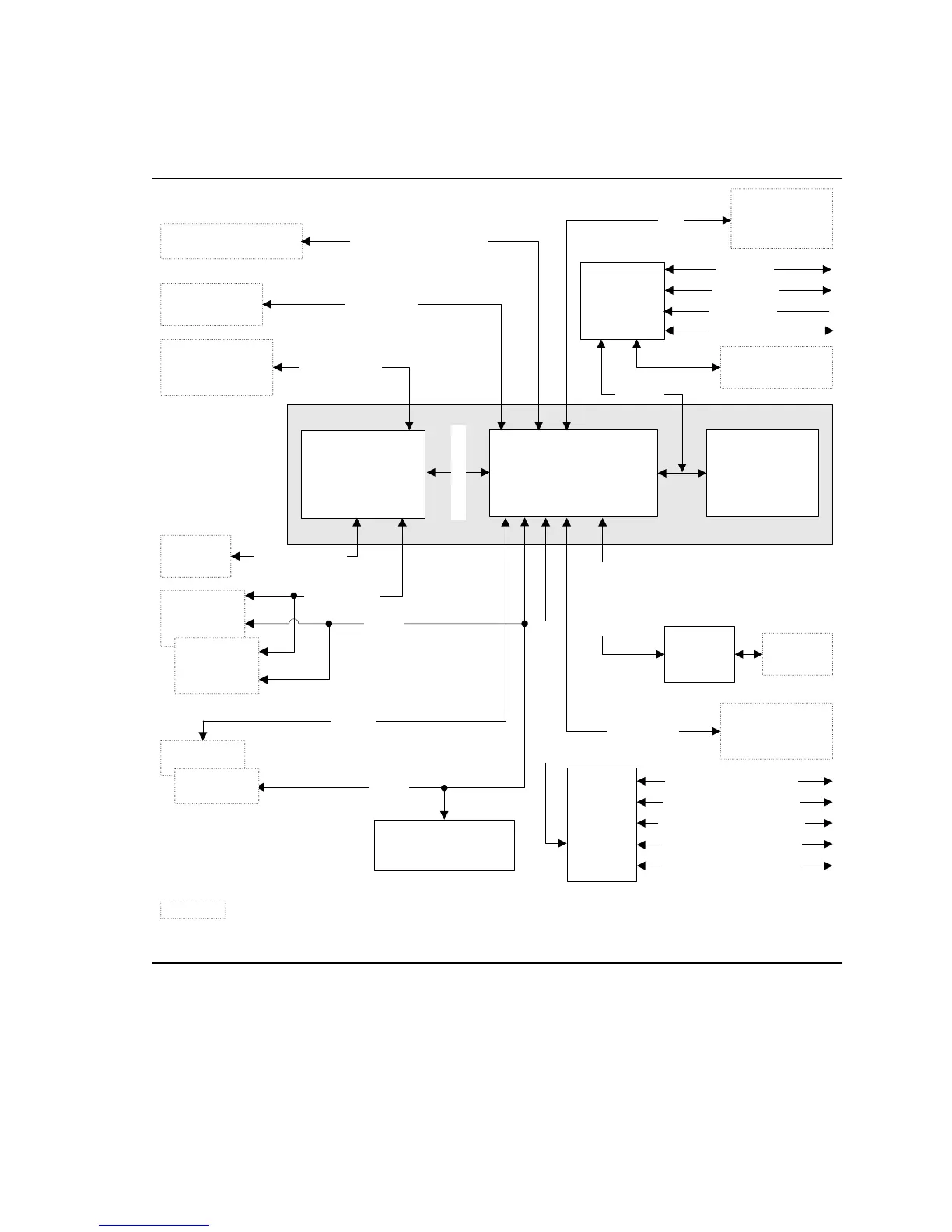

Figure 2 is a block diagram of the major functional areas of the boards.
Intel 915GL Chipset
Intel 82801FB
I/O Controller Hub
(ICH6)
Intel 82915GL
Graphics and
Memory Controller
Hub (GMCH)
4 Mbit
Firmware Hub
(FWH)
System Bus
(800/533 MHz)
LGA775
Processor Socket
Parallel ATA
IDE Connector
Diskette Drive
Connector
LPC Bus
I/O
Controller
PS/2 Keyboard
PS/2 Mouse
Parallel Port
Serial Port
Parallel ATA
IDE Interface
LPC Bus
Hardware Monitoring
and Fan Control ASIC
OM17802
Audio
Codec
Retasking Jack F [Port 2]
Line Out/Retasking Jack D
Retasking Jack E [Port 1]
LAN
Connector
10/100
LAN PLC
= connector or socket
PCI Bus
SMBus
High Definition Audio Link
USB
Dual-Channel
Memory Bus
SMBus
PCI Slot 1
PCI Slot 2
Mic In/Retasking Jack B
Line In/Retasking Jack C
Serial ATA IDE
Connectors (4)
Serial ATA
IDE Interface
VGA
Port
Display Interface
Channel A
DIMMs (2)
Channel B
DIMMs (2)
Back Panel/
Front Panel
USB Ports
DMI Interconnect
LAN Connect
Interface
PCI Express x1 Slot 1 PCI Express x1 Interface
Figure 2. Block Diagram
