Intel D915GLVG - Dual Channel (Interleaved) Mode Configuration with Four Dimms

Intel Desktop Board D915GLVG Technical Product Specification
20

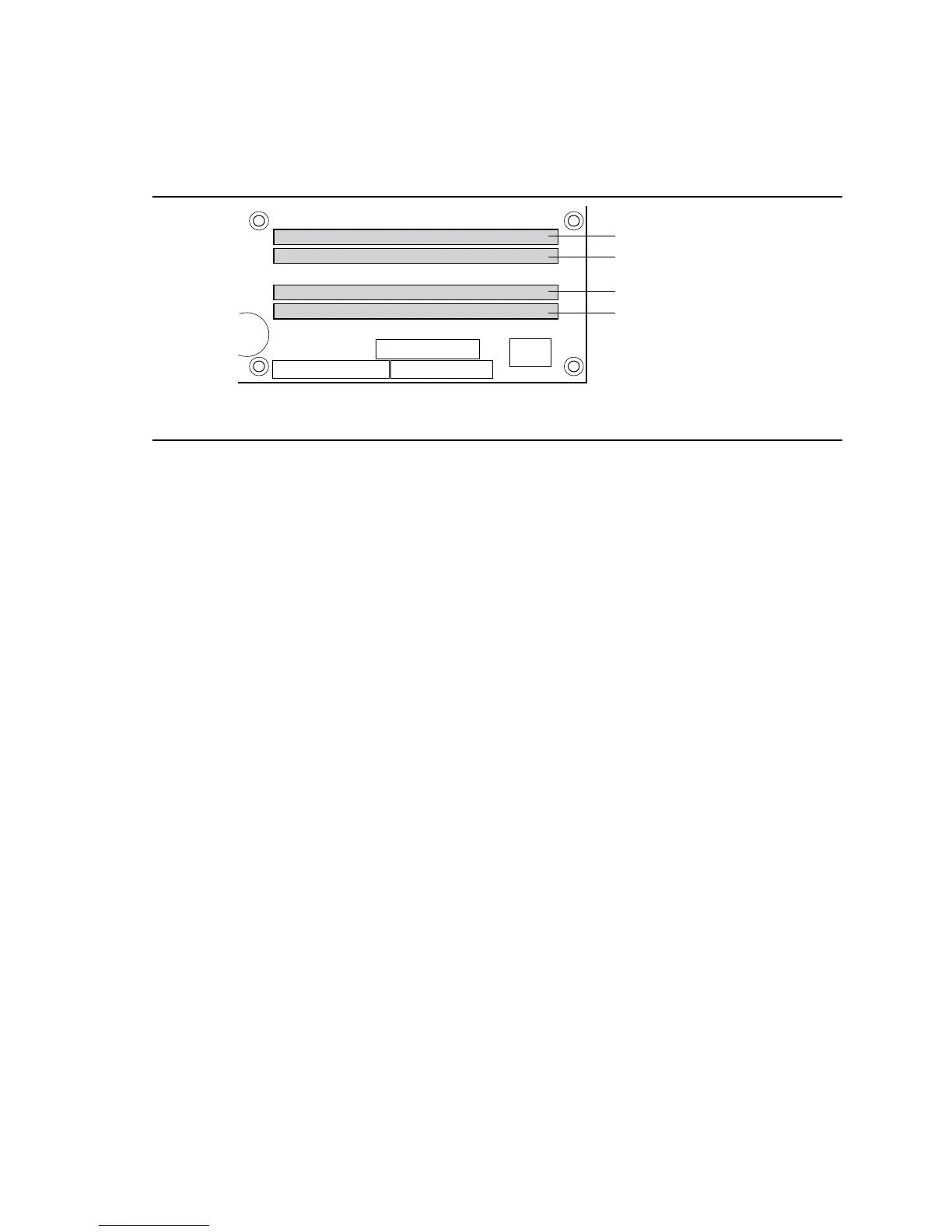

Figure 6 shows a dual channel configuration using four DIMMs. In this example, the combined
capacity of the two DIMMs in Channel A equal the combined capacity of the two DIMMs in
Channel B. Also, the DIMMs are matched between DIMM0 and DIMM1 of both channels.
OM17124
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
256 MB
512 MB
512 MB
Figure 6. Dual Channel (Interleaved) Mode Configuration with Four DIMMs
