Product Description
31
1.10.2 Thermal
Monitoring

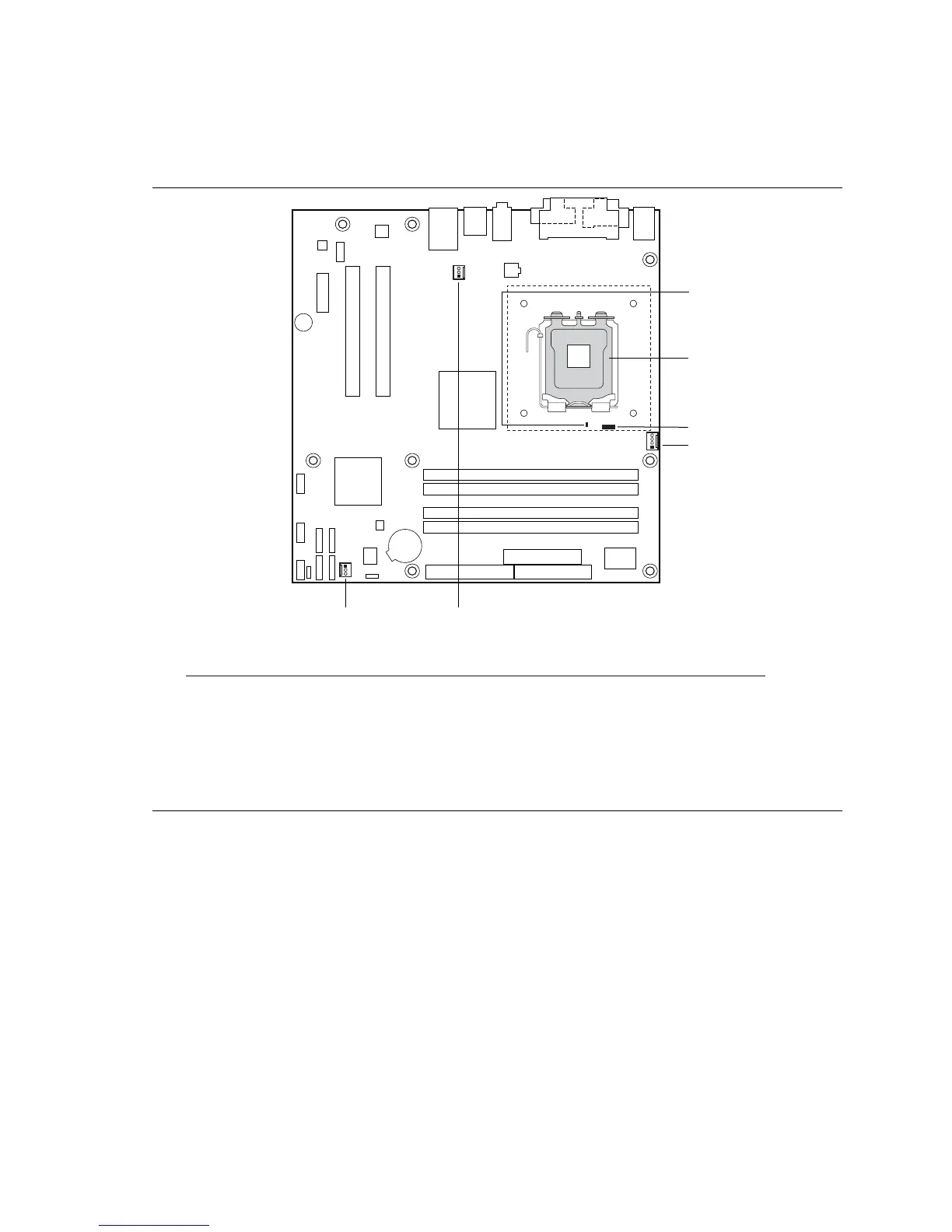

Figure 12 shows the location of the sensors and fan connectors.
OM17806
B
E
F
D
C
1
4
1
3
1
3
A
Item Description
A
Remote ambient temperature sensor
B
Thermal diode, located on processor die
C
Ambient temperature sensor, internal to
hardware monitoring and fan control ASIC
D
Processor fan
E
Rear chassis fan
F
Front chassis fan
Figure 12. Location of Thermal Sensors and Fan Connectors
